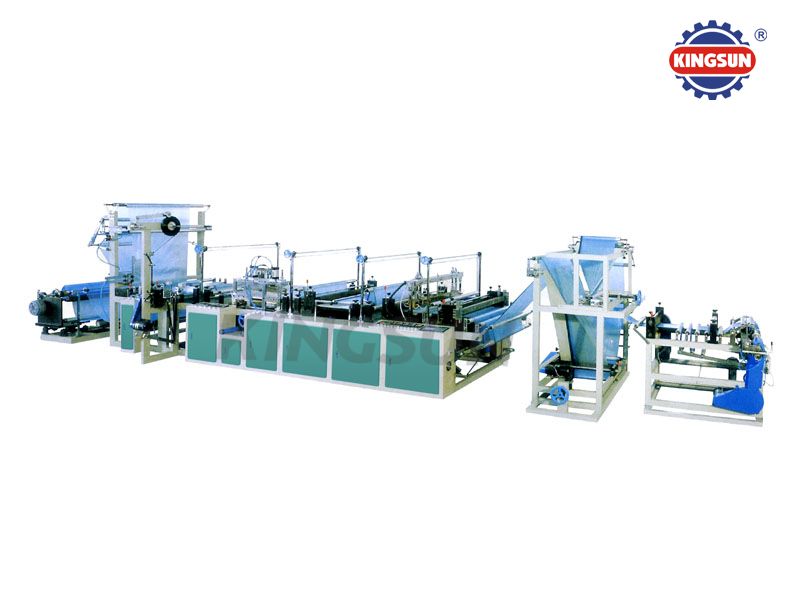

RDL Automatic Draw String Bag Making Machine

This RDL Automatic Draw String Bag Making Machine is researched and manufactured by our company on the basis of integration of advanced foreign technology.

Introduction:

This RDL Automatic Draw String Bag Making Machine is researched and manufactured by our company on the basis of integration of advanced foreign technology.

Features:

It adopts the materials like LDPE, LHPF and cylinder film to manufacture draw string garbage bags or folded-rolled bags. The machine adopts computer control, servo, a step motor to fix the length, photoelectric tracking, auto counting, alarming up to the set number, auto rectifying and auto thermo control as well as the functions like auto beveling, punching, threading, folding, rolling, etc. It is an ideal equipment to manufacture the garbage bags.

Main Technical Specification:

Model

RDL-900

RDL-1100

Max. bag width

900mm

1100mm

Max. bag length

900mm

999mm

Thickness

0.015-0.05mm

Speed

20-50pcs/min

Varieties

Printing bags, uncolored bags

Total Power

8kw

10kw

Weight

2200kg

2600kg

Overall dimensions

9800×2200×2000mm

9800×2400×2000mm

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
