WKS-600HK Computerized Three Side Sealing Zipper Bag Making Machines

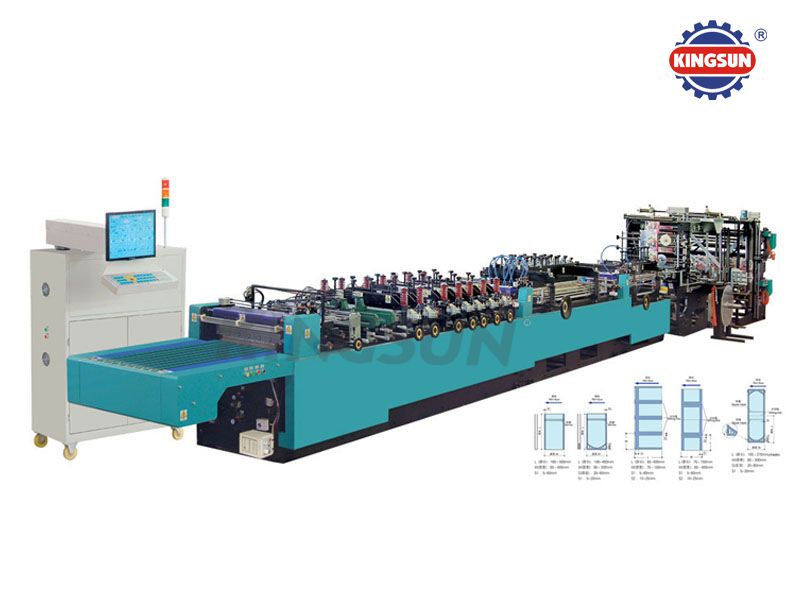

This series computer control three side sealing bag making machine(WKS-600HK) is suitable for making three side sealing plastic bag, zipper bag, self-stand bag, other kind of special shape bag or plastic sachet.

WKS-600HK Computerized Three side Sealing Zipper Bag Making Machines

Introduction of bag making machine:

This series computer control three side sealing bag making machine(WKS-600HK) is suitable for making three side sealing plastic bag, zipper bag, self-stand bag, other kind of special shape bag or plastic sachet. Kingsun factory has more than 15 years experience, with latest advanced technology in high precision grade bag making,our machine can fit to make various kind of laminated film bag, we also can develop the special system to meet some special bag, so this type bag making machine is widely use for flexible pakaging industry.

Technical specifications:

Material: various compound films (laminated film)

Roll folding: max width: 1240mm, max diameter: 600mm.

Auxiliary material: max width: 180mm, max diameter: 600mm.

Adaptability:

Bagging speed: 150 parts/min (mechanical design speed), approx. 30m/min.

Bagging width: Maximum width 600mm.

Bagging length: 50-400mm, (multiple conveying device can be adopted when over-long).When the set program is above 320mm, it will automatically change into multiple conveyances.

Notes: The actual operation speed will reduce for the reason of difference of the bag type and material.

Warping mode:

Fabrication: put the warp beam horizontally, with V fold support, and pneumatically lock.

Auxiliary material: put the warp beam horizontally, with triad plate.

Control: tension is automatically controlled by swimming roller, magnetic powder brake encoder, displacement sensor etc.

Driving mode:

Feeding traction: Driven by AC servo motor.

Upper & lower sealing press: AC motor drive  or AC servo motor drive

Functions:

Heat seal: speed of heat seal , duration of heat seal, proportion of heat seal acceleration.

Temperature:0~300 contact-free automatic control, TFT displaying.

Automatic count: presetting is available.

Conveyance of finished bag: conveyance quantity is available.

Punching device: time can be preset, continuous or interval punching is available.

Setting up mode: alternatively first sealing press and second sealing press.

Working mode: printing, non-printing.

Mode of multiple conveyances: twice to six times conveyance.

Measurement for length: distance between color scales can be measured photo-electrically.

Selectivity: feeding without movement, upper & lower regulating trimmer can be selected.

Message alert: lost of photo-electricity ,lost of temperature,warping alarm ,servomotor alarm and auto-switch off the machine.

Electricity-use configuration:

Feeding driving servomotor: 1.0 kw x 2=2.0kw 1.5kw x1=1.5kw

Upper & lower driving AC motor: 4.0 kw x 1=4.0kw

Warping traction motor: 0.55 kw x 2=1.1kw

Side heat seal device: 4.8 kw x 5=24.0kw

Lateral heat seal device: 4.8 kw x 5=24.4kw

Zipper heat seal device: 4.0 kw x 2 =9.6kw

Auxiliary material tractions motor:0.09kw x 2=0.18kw

Control system and others:3kw

Total :Approx.70kw

Gas pressure:0.6MPa(6kgf/cm2)

Cooling water :Approx.15L/min

Gross weight of equipment:Approx.7T

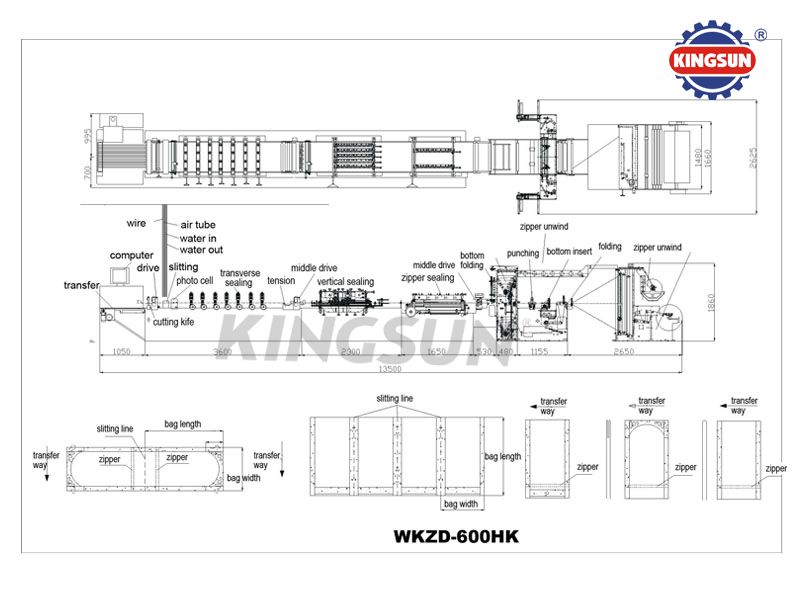

Outer dimension: (length×width×height):13700x2625x1860mm

Control mode:

Adopts the industrial control equipment,domestic displayer.

Multiple photoelectric controlled.
