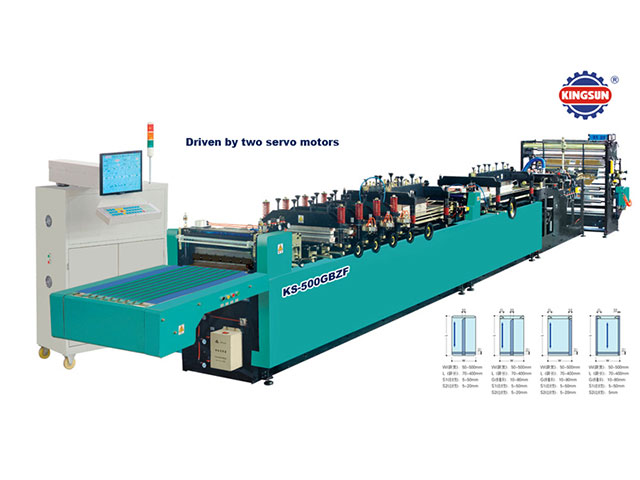

KS-500GBZF Middle-sealing,lateral sealing,4 laterals sealing high speed automatic pouch making machine

KS-500GBZF Middle-sealing,lateral sealing,4 laterals sealing high speed automatic pouch making machine

Material: various compound films or co-extrusion films
Roll folding: max width: 1050mm, max diameter: 600mm.

KS-500GBZF Middle-sealing,lateral sealing,4 laterals sealing high speed automatic pouch making machine

Application range:

Material: various compound films or co-extrusion films

Roll folding: max width: 1050mm, max diameter: 600mm.

Adaptability:

Bagging speed: 160 parts/min (mechanical design speed), approx. <30m/min.

Bagging width: max width 500mm.

Bagging length: 50-400mm, When the bag length is above 400mm,it will change into multiple conveyances.

Notes: The actual operation speed will reduce for the reason of difference of the bag type and material.

Unwinding mode:

Flat roll film: put the roll air shaft horizontally.

Control: tension is automatically controlled by dancing roller, magnetic powder brake displacement sensor.

Driving mode:

Feeding traction: Driven by AC servo motor.

Upper & lower sealing press: AC electrical motor or AC servo motor.

Functions:

Heat seal: speed of heat seal, duration of heat seal, proportion of heat seal acceleration etc.(main servomotor)

Temperature: 0~300℃,contact-free automatic control, CRT displaying.

Automatic count: presetting is available.

Punching device: time can be preset, continuous or interval punching is available.

Working mode: printing, non-printing.

Mode of multiple conveyances: twice to six times conveyance.

Measurement for length: distance between color scales can be measured photo-electrically.

Selectivity: feeding without movement, upper & lower regulating trimmer can be selected.

Message alert: lost of photo-electricity, lost of temperature、warping alarm、servo motor alarm, tension alarm and auto-switch off the machine.

Electricity-use configuration:

Feeding driving servomotor:1.0 kw x 1=2.0kw 1.5 kw x 1=1.5kw

Upper & lower driving motor:3.0 kw x 1=3.0kw

Warping traction motor:0.55 kw x 1set=0.55kw

Middle-seal device:2.4 kw x 1=2.4kw

Lateral heat seal device:4.8 kw x 3=14.4kw

Plastic Middle-seal:4.8 kw x 2=9.6kw

Control system and others: 3kw

Total: Approx. 35kw

Gas pressure:0.6MPa(6kgf/cm2)

Cooling water: Approx. 15L/min

Gross weight of equipment: Approx. 5000kg

Dimension (L X W X H):10500x1500x1520mm

Control mode:

Adopts the industrial control equipment, CRT displayer, or touch screen.

Adopts double photoelectric control.

Notes:

Kingsun factory can special made the bag making machine according to different type of bags.

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
