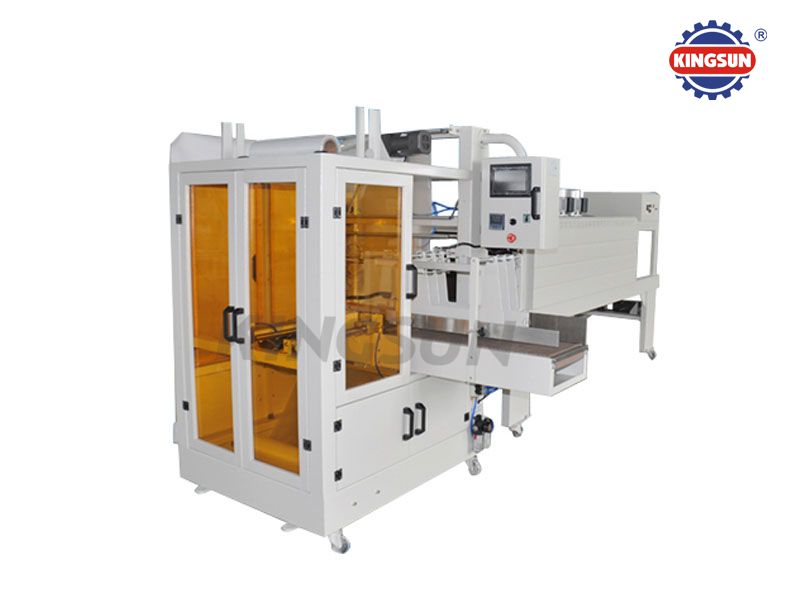

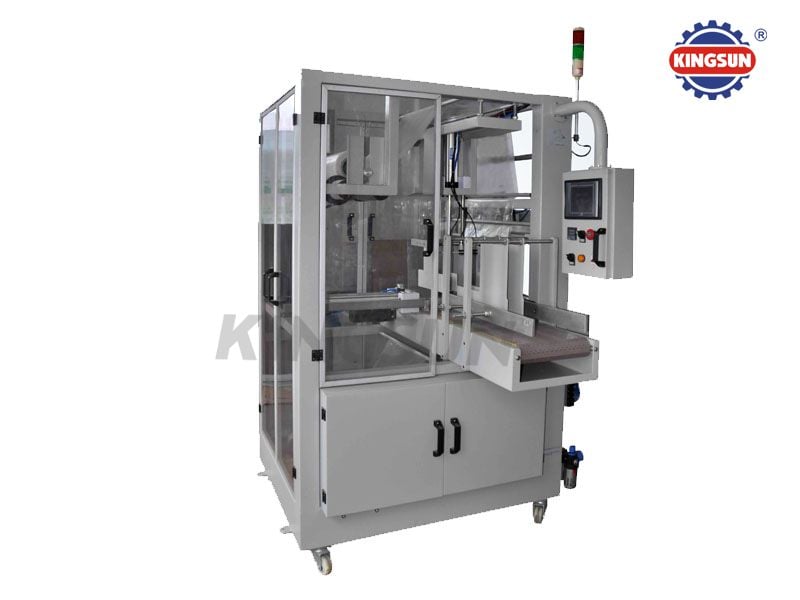

TF6540A Automatic sleeve sealing machine
Product Feature:

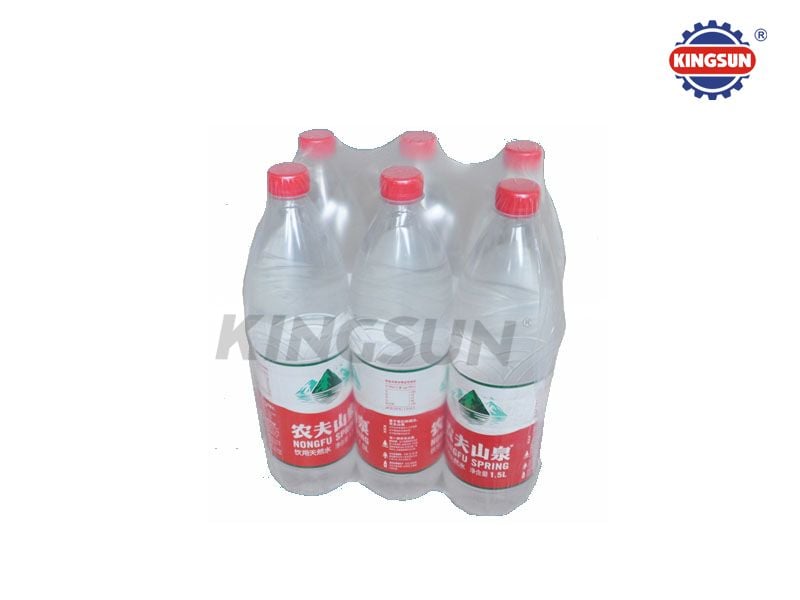

It adopts PLC control with touch screen, and it’s suitable for automatic collecting shrink packing object such as can or bottle. It’s a fully automatic production line integrated with automatic convey, feeding, arrange, sealing, cutting, and it always be used together with shrink machine to do shrinking after sleeve sealing. After finished the packaging, the products appeared neatness, compact and good for long transport. It’s suitable for all types of shrink film such as PVC, PE shrink film.
Technical Specification:
|
Power Supply |
220V,50~60HZ |
|
The total power |
1.5KW |
|
ctric hot plate power |
1.3KW(two Block) |
|
Packing maximum object size (LxWxH) |
530×330×380mm |
|
Packing speed |
8 bags/min |
|
Maximum seal size |
4 Rowx650mm |
|
Conveyor table height |
800+50mm(Adjustable) |
|
Working pressure |
5~7kgf/cm2 |
|
Dimensions (L x W x H) |
2450×1750×1950mm |
|
The whole weight |
350kg |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
