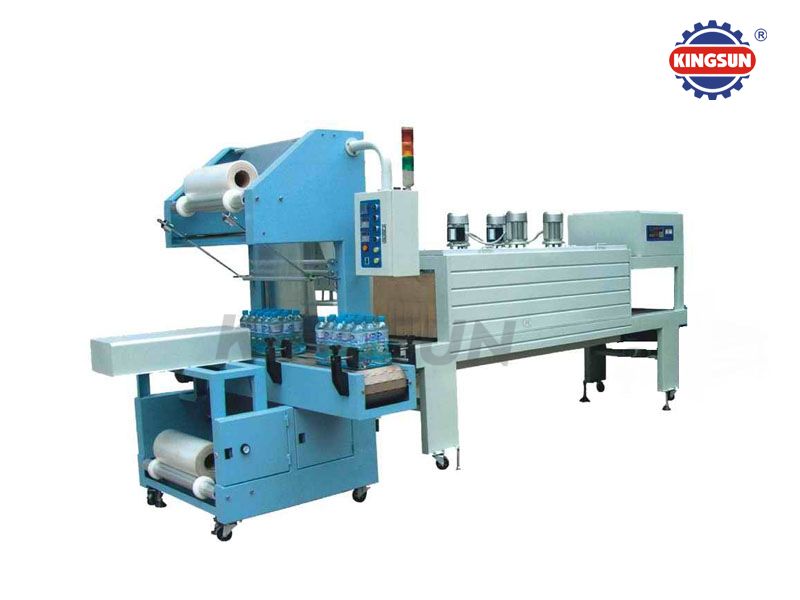

TF6540+ BS5540L Automatic Sleeve Sealing Machine + Shrink Packing Machine
Product Feature
It is a fully automatic production line integrated with automatic convey , feeding, sealing, cutting, and shrinking, especially suitable for large, unitary counted case(box or can)bottom tray packaging such as can, bottle etc When encased with PE or PVC shrink film, and complete its shrink packaging. Conveyor is alternative with roller or mesh. Also we can design requirement of the customer. After finished the packaging, the products appeared neatness, compact and good for long transport.
Technical Specification
|
Model |
TF6540 |
|
Voltage |
AC 220V/50HZ or 110V/50HZ |
|
Power |
1.5 Kw |
|
Max. Packing Dimension |
530×330×380 (mm) |
|
Packing Speed |
12 Tray/min |
|
Max. Sealing Length |
650mm |
|
Working Air Pressure |
6~8 kgf/cm2 |
|
Dimension (L×W×H) |
1550×1400×1920 (mm) |
|
Net Weight |
400 Kgs |
|
Model |
BS5440L |
|
Voltage |
380V/50HZ or 220V/60HZ (3 Phase) |
|
Loading |
80Kgs |
|
Conveying Speed |
0~10m/min |
|
Tunnel Size(L×W×H) |
1950×550×400(mm) |
|
Dimension(L×W×H) |
3100×850×1500(mm) |
|
Net Weight(kg) |
400 Kgs |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
