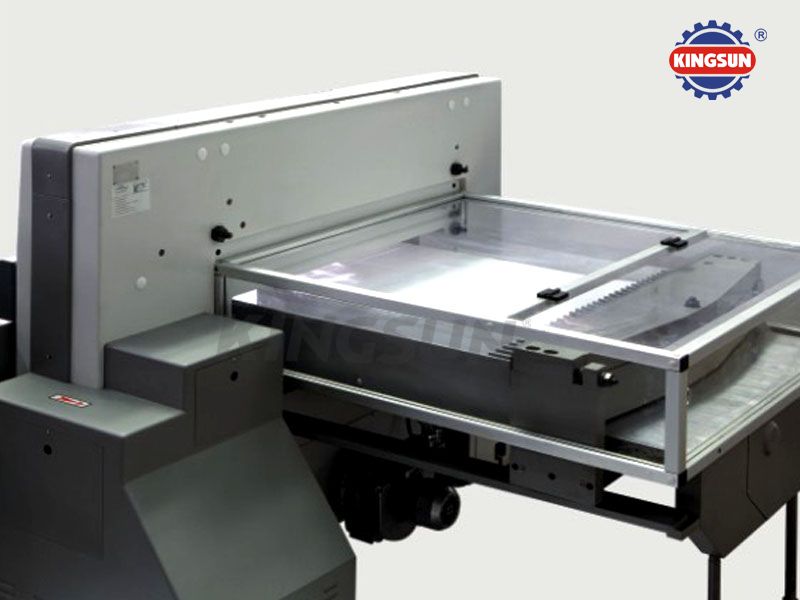

QZYK-CF Computer Program Control Paper Cutters (paper cutting machine)
Features:
This model adopts Japan AC digit servo control system; 15 inches colorful liquid crystal display screen of resolution rate is 0.01mm, has self-diagnostic function of troubles and displays the operating pattern. It has 100 program units, more than 10000 different cutting position dynamic cutting display, running situation, dynamic follow-up. The max paper-pushing speed is 5-18m/min; it adopts stronger computer operating system. It can memorize store the storage time can be up to 300000 hours above. It has self maintenance to the operating system. It adopts Italy hydraulic components, France, Germany, Japan and Korea electric components. Taiwan ball lead screw and linear guide-rail are used. PLC controller can monitor all the electrical and mechanical section. Its key parts adopt imported bearing of low maintenance.
Technical specifications:
|
Model |
920 |
1150 |
1300 |
1370 |
1550 |
|
Cutting width |
92cm |
115cm |
130cm |
137cm |
155cm |
|
Cutting height |
13cm |
16.5cm |
13cm |
16.5cm, |
16.5cm |
|
Cutting depth |
92cm |
115cm |
130cm |
145cm |
155cm |
|
Motor power |
3KW |
4KW |
4KW |
5.5KW |
5.5KW |
|
Machine width with table |
233cm |
266cm |
266cm |
287cm |
314cm |
|
Machine length |
198cm |
226cm |
241cm |
259cm |
280cm |
|
Table height |
86.5cm |
89cm |
86.5cm |
91cm |
90cm |
|
Speed |
45/min |
45/min |
45/min |
45/min |
45/min |
|
Dimensions |
225x140x195 |
255x160x215 |
260x153x195 |
280x160x215 |
296x165x215 |
|
Weight |
2900kg |
3900kg |
4600kg |
4800kg |
5000kg |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
