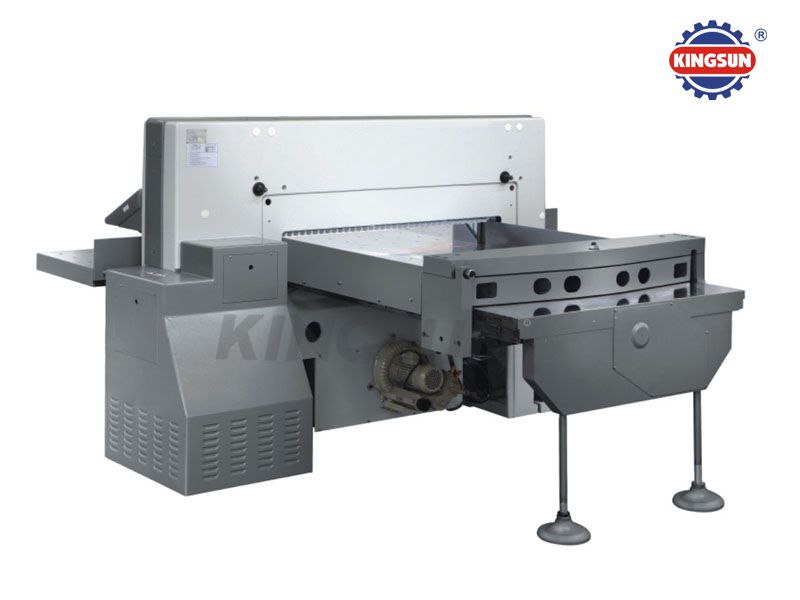

QZYK-C Computer Control Paper Cutter
Features:

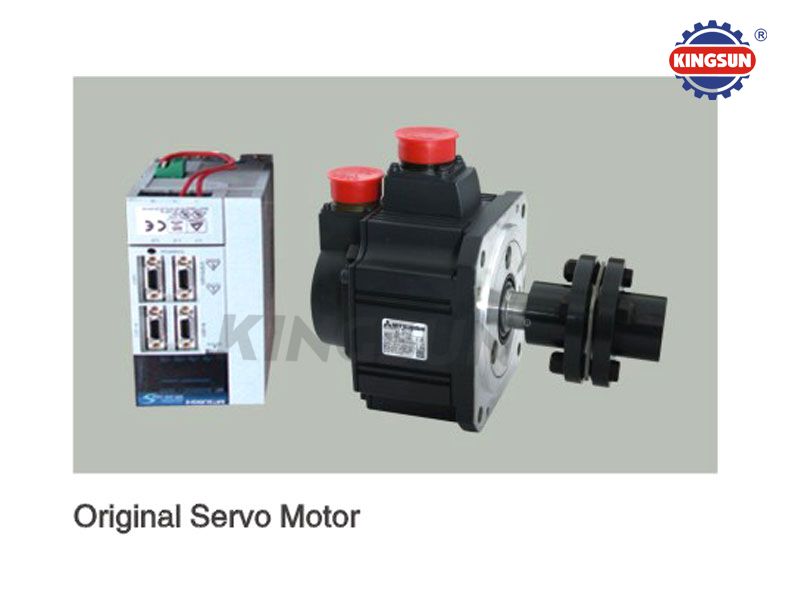

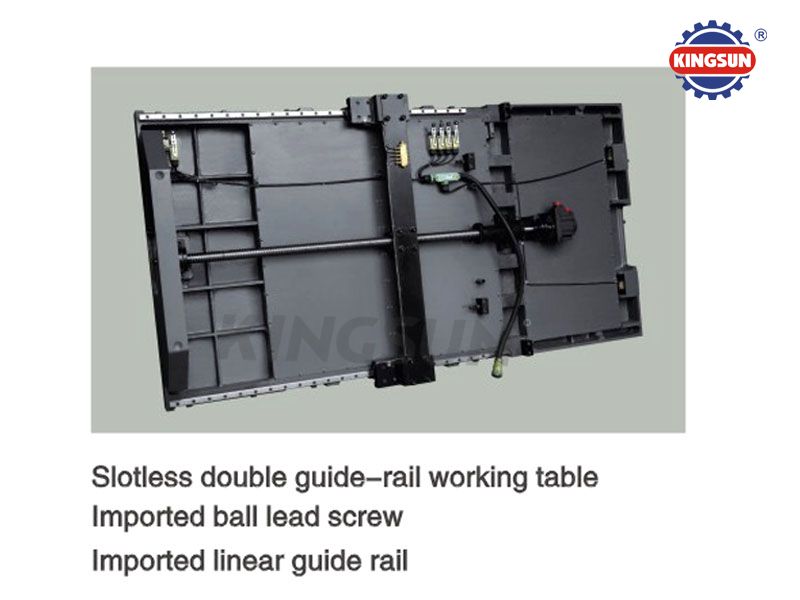

Equipped with Japan AC digital servo controlling technology and 5.7 inches colorful display screen, the data resolution rate is 0.01mm, has self-diagnostic function of troubles and displays the operating pattern, It has 100program units more than 5000 different cutting position the max paper- pushing speed is 5-16m/min. lt adopts stronger computer operating system. It can memorize store the storage time can be up to 200000 hours above. lt has self maintenance to the operating system. Adopt Japanese hydraulic components, Japan and Korea electric components, Taiwan ball lead screw and linear guide-rail are used. PLC controller can monitor all the electrical and mechanical section.lts key parts adopt imported bearing of low maintenance.
Technical specifications:
|
Model |
920 |
1150 |
1300 |
1370 |
1550 |
|
Cutting width |
92cm |
115cm |
130cm |
137cm |
155cm |
|
Cutting height |
13cm |
16.5cm |
13cm |
16.5cm, |
16.5cm |
|
Cutting depth |
92cm |
115cm |
130cm |
145cm |
155cm |
|
Motor power |
3KW |
4KW |
4KW |
5.5KW |
5.5KW |
|
Machine width with table |
233cm |
266cm |
266cm |
287cm |
314cm |
|
Machine length |
198cm |
226cm |
241cm |
259cm |
280cm |
|
Table height |
86.5cm |
89cm |
86.5cm |
91cm |
90cm |
|
Speed |
45/min |
45/min |
45/min |
45/min |
45/min |
|
Dimensions |
225x140x195 |
255x160x215 |
260x153x195 |
280x160x215 |
296x165x215 |
|
Weight |
2900kg |
3900kg |
4600kg |
4800kg |
5000kg |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
