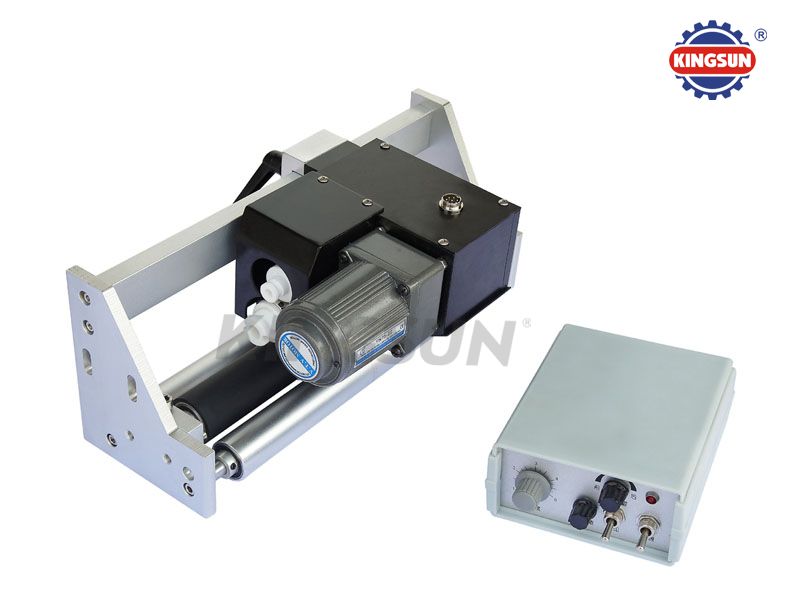

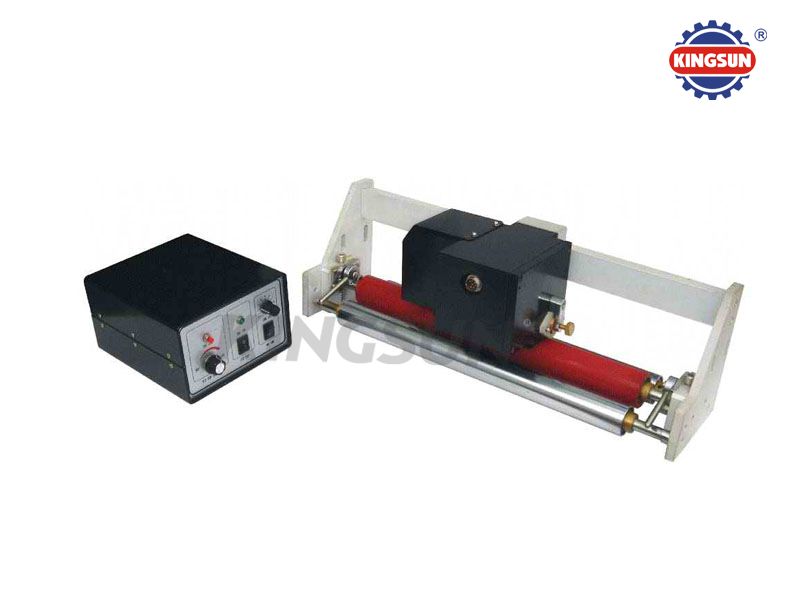

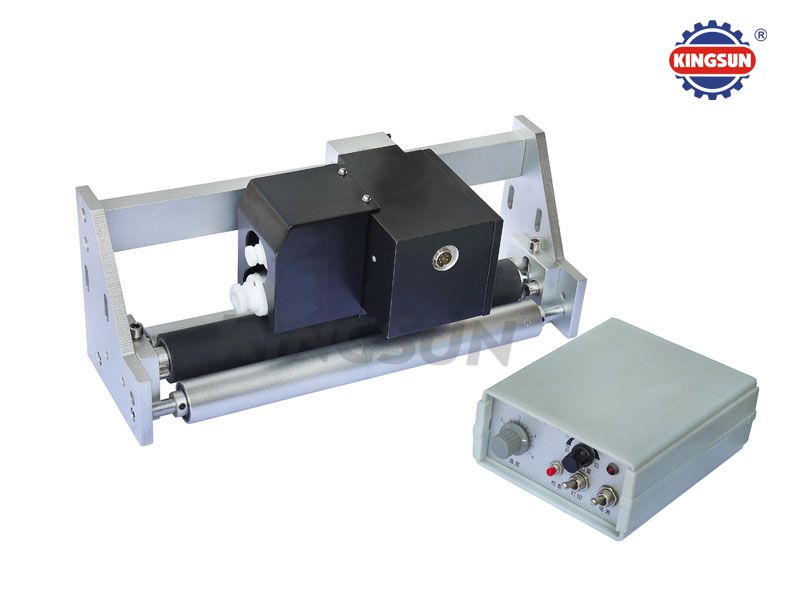

MY-812 Series Lock-and-follow Dry-ink Coding Machine
Product Feature
1.The machine can be used to math with vertical and horizontal automatic packaging machine, and print the label of the product.
2.It can print by solid-ink roller; the character is clear, instant printing and instant dry, with strong adhesion.
3.It can list 10 characters one line, at most 11lines.MY-821A with motor driving.
4.The print location of photo-electricity tracing can be adjustable, with accuracy.
Technical Specification
|
Model |
MY-812G |
MY-812A |
|
Voltage (V/HZ) |
AC 220V/50HZ, 110V/60HZ |
|
|
Power (W) |
130 |
150 |
|
Max. Printing Speed(pcs/min) |
300 |
|
|
Max. Printing Line |
T (10.5PT); 11Lines (Max.10 Characters/line) R(10.5PT); 8 Lines (Max 8pcs/line) |
|
|
Size of Character(Height)(mm) |
2×1.5(8PT) 2.5×2(9PT) 3×3(10.5PT) |
|
|
Size of Solid-ink Roller(mm) |
ф35×32 |
|
|
Max. Horizontal Adjustable Size for Printer |
150 (Confirm When Ordering) |
|
|
Weight for Printer (kg) |
10 |
|
|
Max. Film Width (mm) |
400 500 600 |
|
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
