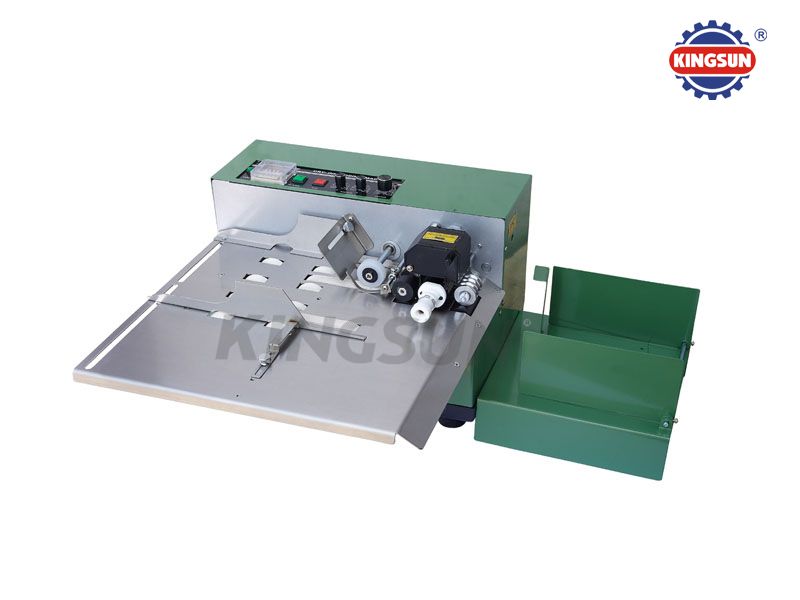

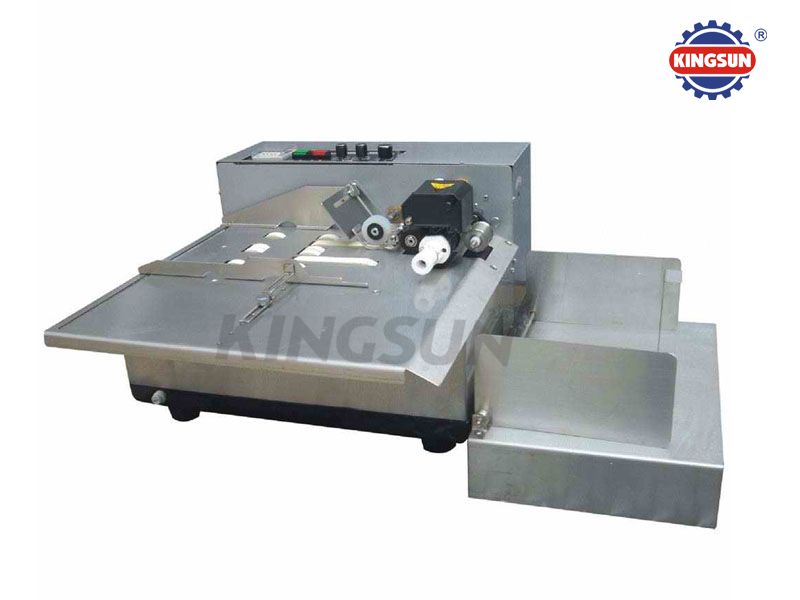

MY-380F Dry-ink Coding Machine
Product Feature:
1.Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
2.Adopt solid-ink coding, legible printing, fast dry, and color selectable, not easy to remove.
3.With multi function print wheel suitable for R type and T type arrangement.
4.Fit for printing on paper, plastic film and aluminum foil.
5.Automatic high speed, high efficiency, up to 300pcs per minute.
Technical Specification:
|
Model |
MY-380F |
MY-380F/W |
|
|
Voltage (V/HZ) |
AC 220V/50HZ, 110V/60HZ |
||
|
Power (W) |
180 |
||
|
Max. Printing Speed(pcs/min) |
300 |
||
|
Max. Printing Line |
T Type (10.5PT); 11Lines (Max.10 Characters/line) R type (10.5PT); 8 Lines (Max 8pcs/line) |
||
|
Size of Character(Height)(mm) |
2×1.5(8PT) 2.5×2(9PT) 3×3(10.5PT) 4x2.5(18PT) |
||
|
Size of Solid-ink Roller(mm) |
ф35×32 |
||
|
Dimension (L×W×H)(mm) |
440×345×300 |
440×465×300 |
|
|
Net Weigh(Kg) |
23 |
26 |
|
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
