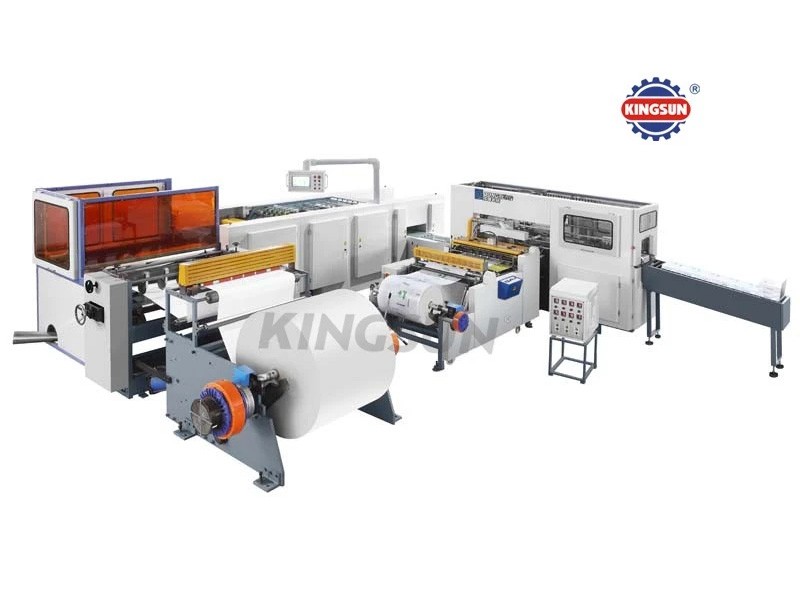

KCP-A4-5 Model A4 Copy Paper Making Machine is the best choice for the small capacity production or for the new start company for paper converting of A4, A3 paper.
kingsungroup
E-mail Us
PDF Download
Video Link
KCP-A4-5 Model A4 Copy Paper Making Machine is the best choice for the small capacity production or for the new start company for paper converting. With compact design and save space, it is an ideal equipment for enter into the copy paper business.
The machine is features:
---high production capacity:5—6 reams/min
---small space required: 7m x 7m
---easy operation
---less labor: only 3 men required
---low cost
|
Model |
KCP-A4-5 |
|
|
Sheeting Unit |
||
|
Shaftless Unwind Reels |
1 |
|
|
Number of slitting knife |
2 |
|
|
Max. Width of Paper Roll(mm) |
846 |
|
|
Net Cutting Width(mm) |
840 |
|
|
Diameter of Paper Roll(mm) |
400-1200 |
|
|
Diameter of Core Chuck(mm) |
3”(76.2mm) or 6”(152.4mm) |
|
|
Paper GSM(gsm) |
60-100 |
|
|
Length of Sheeted Paper (mm) |
297 |
|
|
Paper Quantity per Ream (pcs) |
0-500 |
|
|
Max. Ream Height(mm) |
65 |
|
|
Max. Designing Speed (m/min) |
250-300 |
|
|
Cutting Speed(times/min) |
1010 |
|
|
Working Speed of Paper Running (m/min) |
6-8 |
|
|
Paper Output Speed |
250-300 |
|
|
Working Cutting Speed（Times/min) |
1010 |
|
|
Paper Ream Output Speed(pack/min) |
3-4 Packs/min |
|
|
Max.Knife Cutting Loading(gsm) |
400 |
|
|
Paper Cutting Accuracy (mm) |
±0.2 |
|
|
Requirement for Paper Reel |
Working Speed Stable |
|
|
Paper Reels Connect No Broken |
||
|
Qualified Paper |
||
|
Machine Transmission |
AC Frequency Inverter, Stepless Speed Regulation |
|
|
Main Power |
380V/50Hz 3 Phase 4 Lines or Special Made |
|
|
Control Voltage |
220V AC/22V DC |
|
|
Total Power(Kw) |
10 |
|
|
Air Consumption (NL/min) |
300 |
|
|
Air Pressure(bar) |
0.6-0.8 |
|
|
Overall Dimension(m) (LxWx H) |
6.8 X 6.6 X 1.8 |
|
|
Weight （T） |
10 |
|
|
Packing Unit |
||
|
Production Efficiency(reams/min) |
6-8 |
|
|
Automatic Transverse Paper Cutting and Feeding |
6-8 |
|
|
Specification of Packed Paper (mm)(Based on height of 500 pcs copier paper) |
210×297×50mm |
|
|
Power Supply |
380V/50Hz 3 Phase 4 Lines or Special Made |
|
|
Motor Power(Kw) |
5.1 |
|
|
Gluing Sprayer Power(Kw) |
2.25 |
|
|
Compressed Air(mpa) |
0.6-0.8 |
|
|
Overwrapping Paper Size(mm)(L X W) |
550-560×386 |
|
|
Overall Dimension(mm) (L X W X H) |
3400x3300x1600 |
|
|
Weight （Ton） |
1.5 | |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
