This corrugated board single facer is new generation equipment mainly for making A,B,C,E or F flute corrugated board for packaging converting, it includes paper unwinding unit, single facer corrugation unit, and rotary sheet cutting unit. This production line is fit for paper board gluing with A, C, B, E or F flute board etc., also fit for paper board gluing with paper board , the finish corrugated board is neat and nice appearance.
kingsungroup
E-mail Us
PDF Download
Video Link
KWJ-1350/1650 Corrugated Board Single Facer

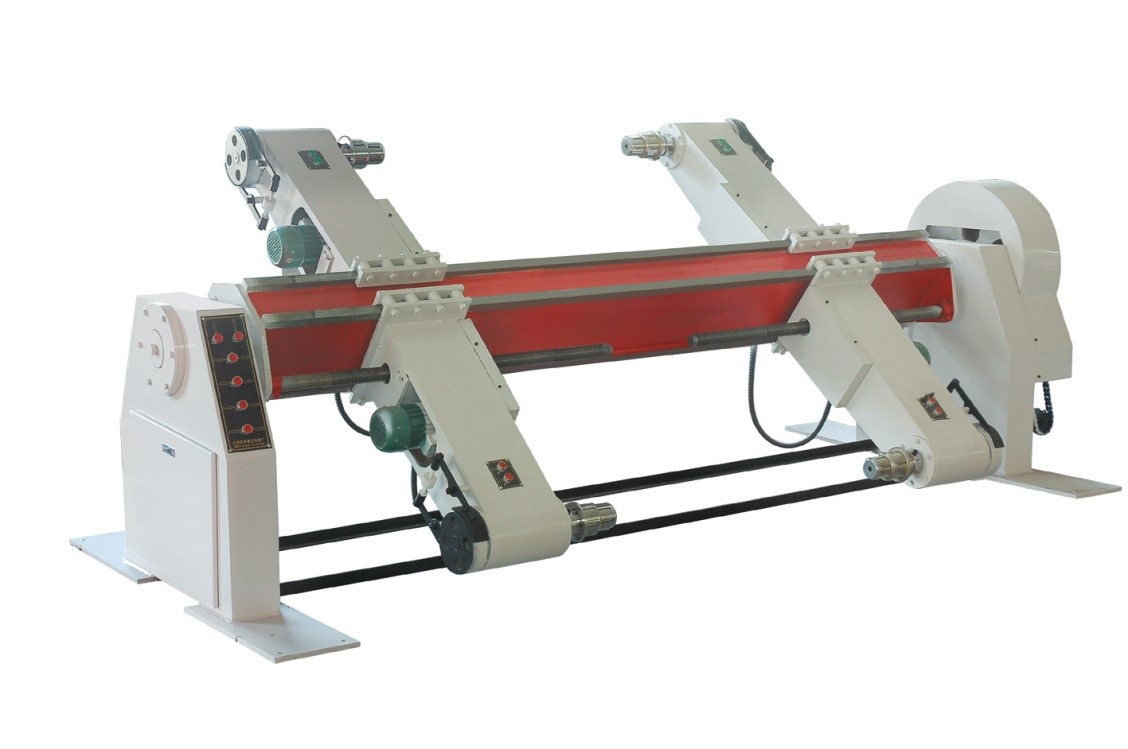

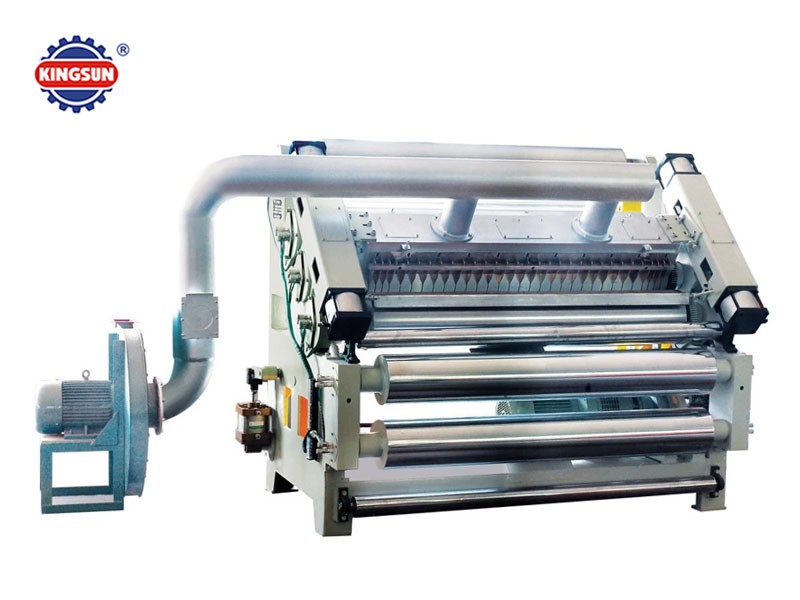

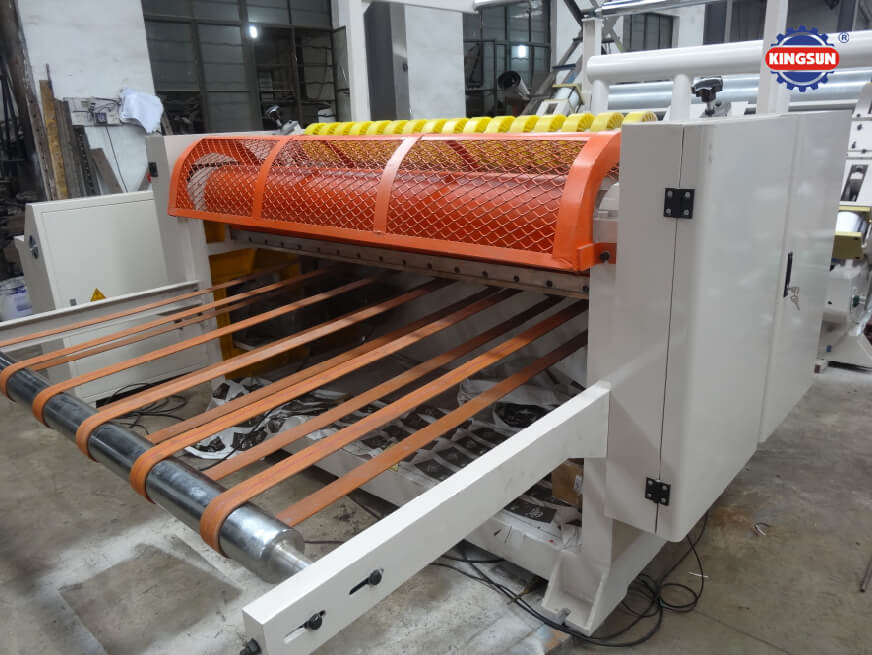

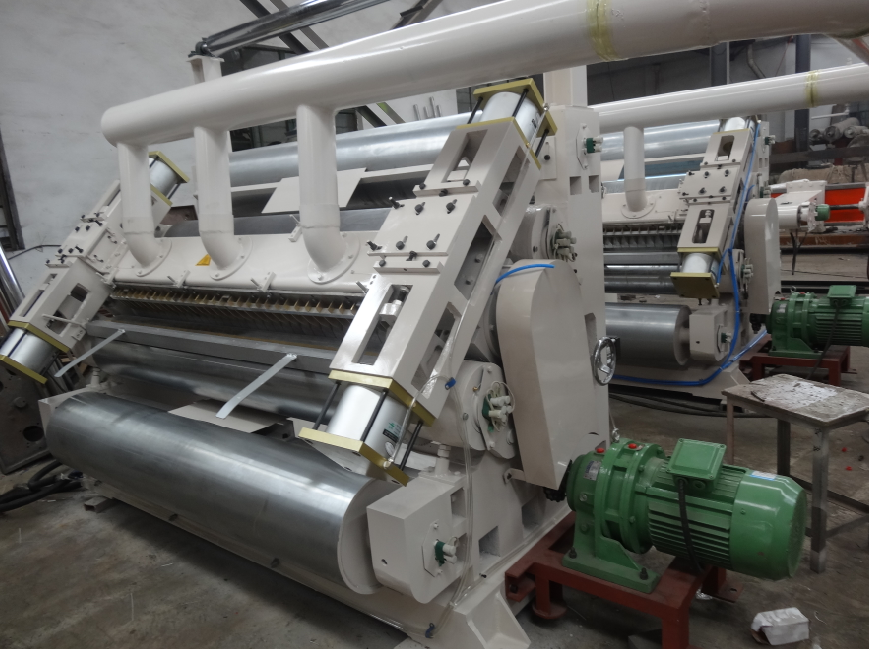

This model corrugation board single facer is new generation equipment mainly for making A,B,C,E or F flute corrugated board, it includes paper unwinding unit, single facer corrugation unit, and rotary sheet cutting unit. This production line is fit for paper board gluing with A, C, B, E or F flute board etc., also fit for paper board gluing with paper board , the finish corrugated board is neat and good appearance. After cut into sheet board, it will laminate with printed cardboard by flute laminator machine, so it is an ideal equipment to make high quality corrugated carton box for packaging industry.
Technical Specifications:
|
Paper width |
1300mm, 1600mm |
|
Machine speed |
0-30m/min |
|
Heating method |
Electric heating, conduction oil, natural gas, steam for choose |
|
Flute type |
UV type，flute A、C、B、E、F or other special form |
|
|
It could be two units of single facer in one line. |
|
Electricity |
3 phase 380V |
|
Machine weight |
4600Kg（depend on different model） |
|
Out dimensions |
8100×2000×1750mm |
This products keyword: Corrugated Board Single Facer, single facer paper corrugation machine, single facer corrugated machine, 2 ply single facer paper corrugation machine
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
