SMC-645 Food Forming machines

swelled rice candy, rice crispy candy, peanut candy, seed candy and sesame candy in round type, cylinder type, square type, semi-circle type, triangular type and blossom type.

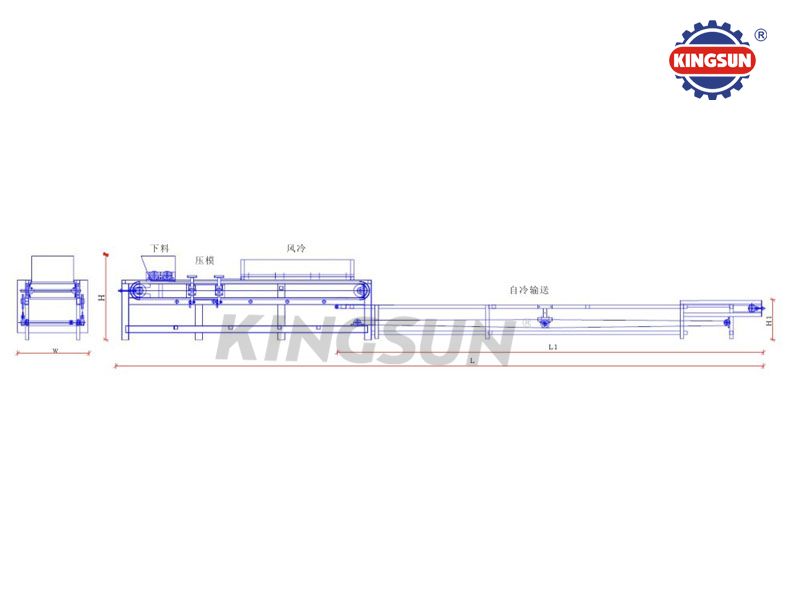

SMC-645 Foodstuff Forming machine (mechanical soft-pressed type)

Applied object:

swelled rice candy, rice crispy candy, peanut candy, seed candy and sesame candy in round type, cylinder type, square type, semi-circle type, triangular type and blossom type.

Feature:

1.The machine type in the fifth generation has integrated all the advantages and functions of the previous SMC-126 and SMC-643 and applies to rice candy, peanut candy and seed candy. It can change different moulds and produce various sorts of products.

2.The shapes produced can be various, for instance, round type, round bar, square type, semi-circle type, triangular type and blossom type?

3.Mechanical soft pressure will not damage nut particles with more elegant molding. Direct mould pressing and molding can be free from rework, which saves materials cost and wastes;

4.The whole machine is in mechanical transmission instead of pneumatic pump; positioning is precise, the upper and low mould coordinates each other tightly and the molding effect is excellent;

5.Converter with high performance is equipped, which makes speed regulating more convenient, efficiency high and performance stable; 24-h successive production in high speed is accessible;

6.All the moulds and hoppers have been conducted with anti-stick disposal;

7.All the links contacting the goods are the nonpoisonous and harmless materials which are oil and high temperature resistance;

8.The length of the cooling conveying links can be changed or cooling fan can be equipped based as required, so as to enhance the cooling effect;

Technical parameters:

Model

SMC-645

Die size

640*126mm

Forming area

540*126mm

Die quantity

54Piece

Speed

<80p/min

Power

380VAC 50Hz  2.5KW

Weight

1200KG
