SMZ-420 Pillow Packing Machine

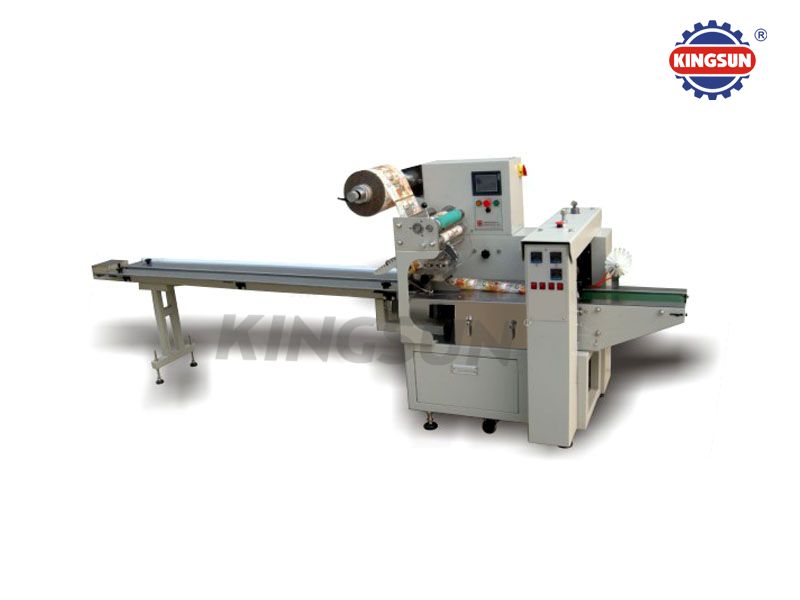

SMZ - 420 automatic packing machine adopts microcomputer control, high precision photoelectric automatic tracking of effect is stable

SMZ-420  Pillow Packing Machine

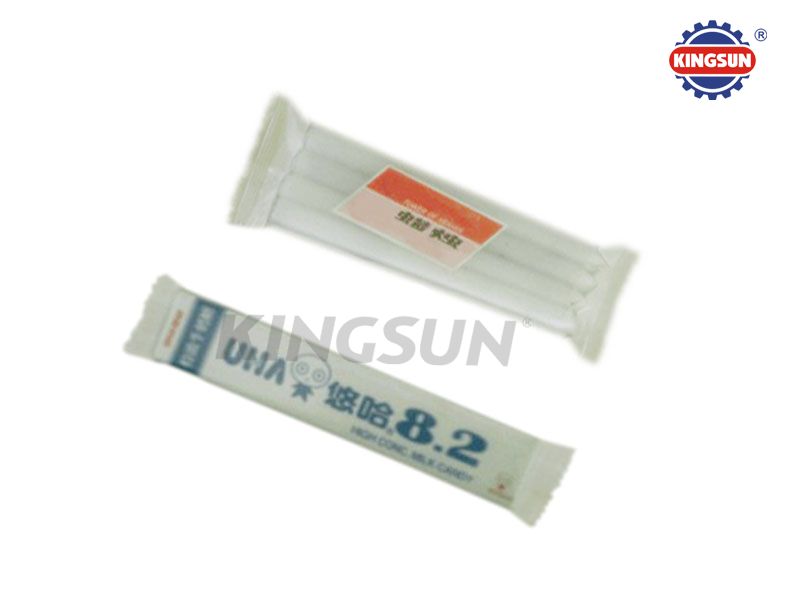

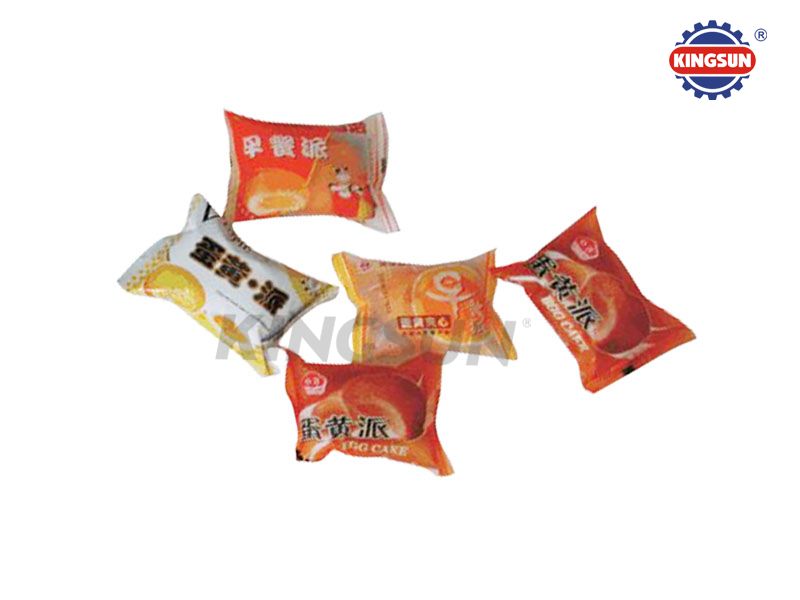

SMZ - 420 automatic packing machine adopts microcomputer control, high precision photoelectric automatic tracking of effect is stable, intelligent English interface and the ingenious structure can adapt to a variety of specifications goods packaging, various ways are conveniently operate when adjusted to facilitate replacement of species, sealing and cutting position accurately. It has been widely used in food, medicine, cosmetic, hardware, etc. Such as: cookies, moon cakes, egg yolks pies, breads, sachima, sausage, instant noodle, tissues, soap, capsule, bearings, toys, and some other larger range of packaging can adapt to sizes.

Feature:

1.Ultra-large packaging scope makes one machine with several applications. Packaging is applied from small articles in block type to the ones with box

2.Multi-axis driving: the mechanical structure is quite simple while maintenance is quite convenient;

3.Man-machine interface: bag length, material level, cursor place, coding, air-flushing and other functions can be realized with digital setting; Directly inputting on the screen and then saving for debugging for the next time;

4.Fault self-diagnosis function makes it easy to display the fault;

5.Specially designed bag holder and lifting horizontal sealing structure can flexibly adapt to the packaging materials in different specifications;

6.As for the air packaging, sealing must be fixed as well as elegant;

7.Different additional devices can be configured, so as to reach more comprehensive and stronger functions.

Technical parameters:

Model

SMZ-420

Film width

420mm

Bag length

85-380mm

Product width

30-140mm

Product height

1-60mm

Film diameter

<450mm

Packing speed

20-160 bag/min

Power

220V / 3KW

Weight

550KG

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
