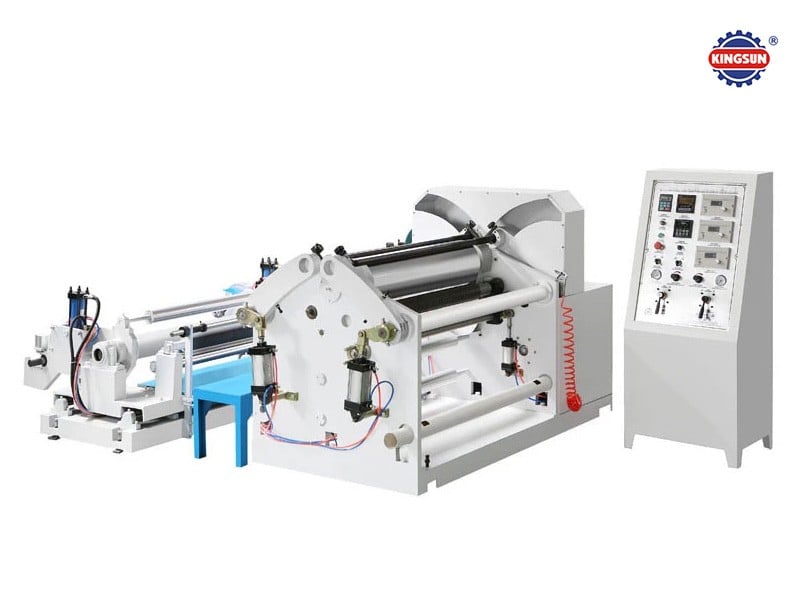

QFJ-CY600 Series Surface Winding Slitting Machines

This series surface winding slitting machine is suitable for slitting various printing and packaging polypropylene, polyethylene film composite materials, paper, BOPP, PET, PE, PVC sheet, aluminum foil, copper foil, pearl film material.

QFJ-CY600 Series Surface Winding Slitting Machines
This series surface winding slitting machine is suitable for slitting various printing and packaging polypropylene, polyethylene film composite materials, paper, BOPP, PET, PE, PVC sheet, aluminum foil, copper foil, pearl film material.
The slitting machine uses a computer-controlled, single, double photoelectric EPC system, rewinding tension control by magnetic powder clutch tension controller. Unwinding tension by magnetic brakes, automatic tension control. The closing reel inflatable axis, with automatic air pressure, automatically lifting the finishing reel. The inverter controls the speed of the whole work, with automatic meter device.

Main specifications:

Max unwinding diameter: 800mm
Maximum rewinding diameter: 420mm
Put the reel diameter: 3 inch
Rewinding diameter: 3 inch
Roll surface width: 630mm
Mechanical speed: ≤ 180m/min
Maximum working width: 600mm
Minimum slitting width: 10mm
Correction accuracy: ± 0.3mm
Total power: 4KW
Dimensions (LxWxH): 2450 ×1850 × 1550mm

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
