KSFQ-G series top level high speed slitter rewinders

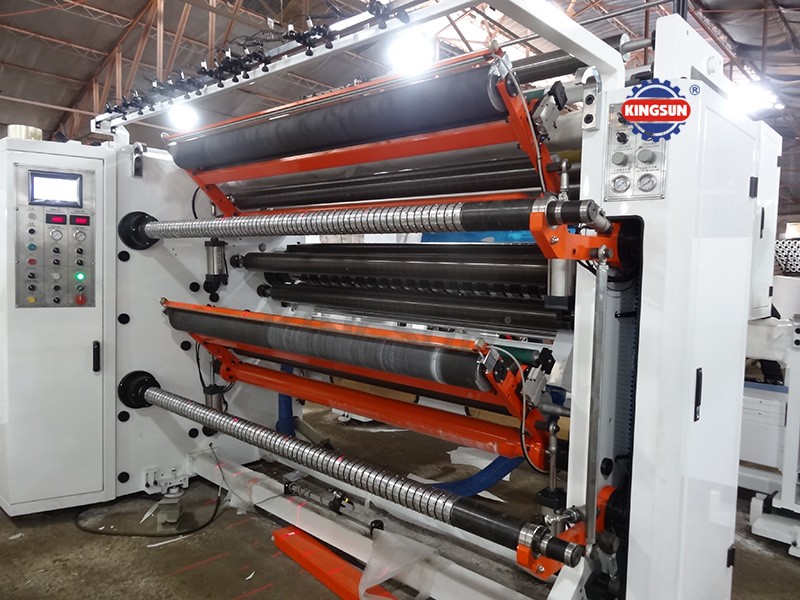

KSFQ-G series slitter rewinders are top grade high quality model slitting machines, suitable for slitting and rewinding various kind of paper, label stock, plastic film,foil ,metallized film, and others laminates etc.

KSFQ-G series top level high speed slitter rewinders for adhesive paper and film, slitting and rewinding machine for jubmo roll paper

KSFQ-G series slitter rewinders are top grade high quality model slitting machines, suitable for slitting and rewinding various kind of paper, label stock, plastic film,foil ,metallized film, and others laminates etc.

Features:

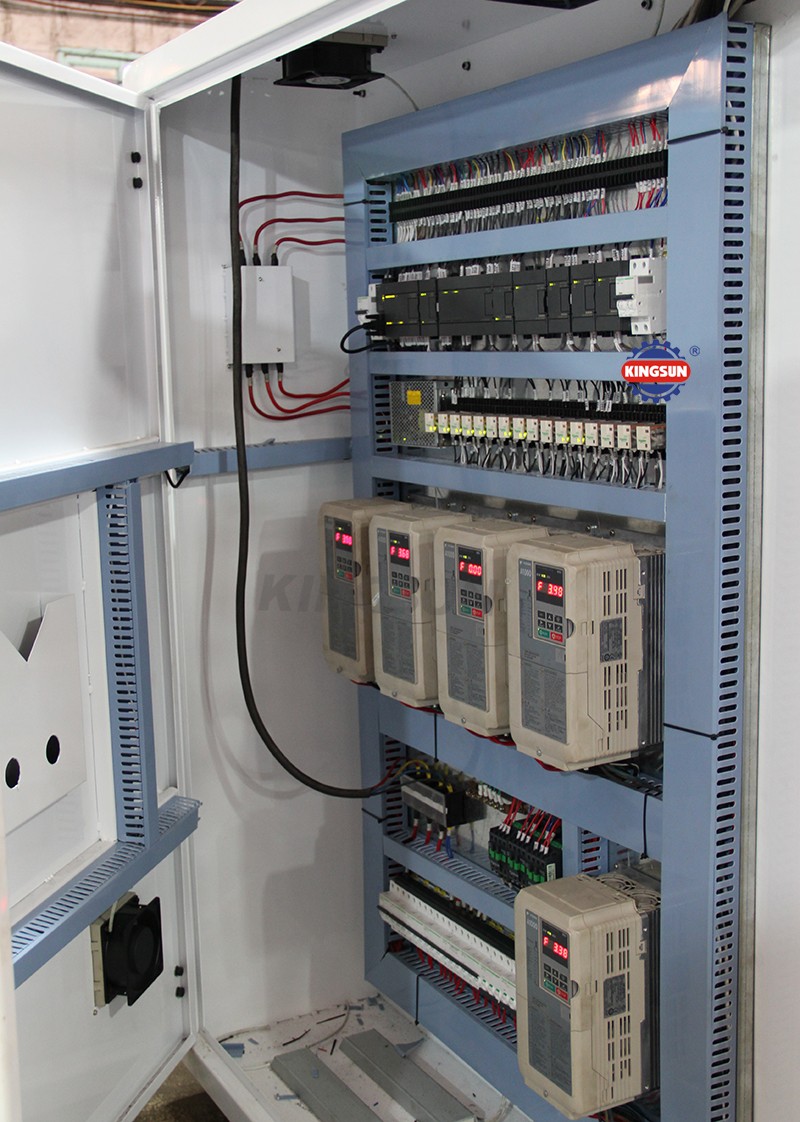

1.Import PLC for centralized control,with touch screen operation interface, able to set working parameters and display working status in screen.

2.Main motor driven by the variable frequency motor,and controlled by the frequency inverter, fast and stable for acceleration and deceleration.

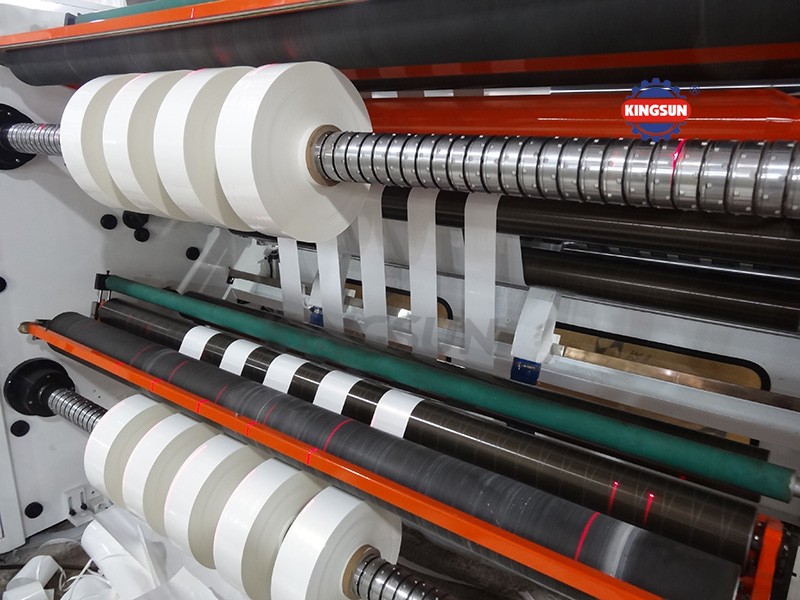

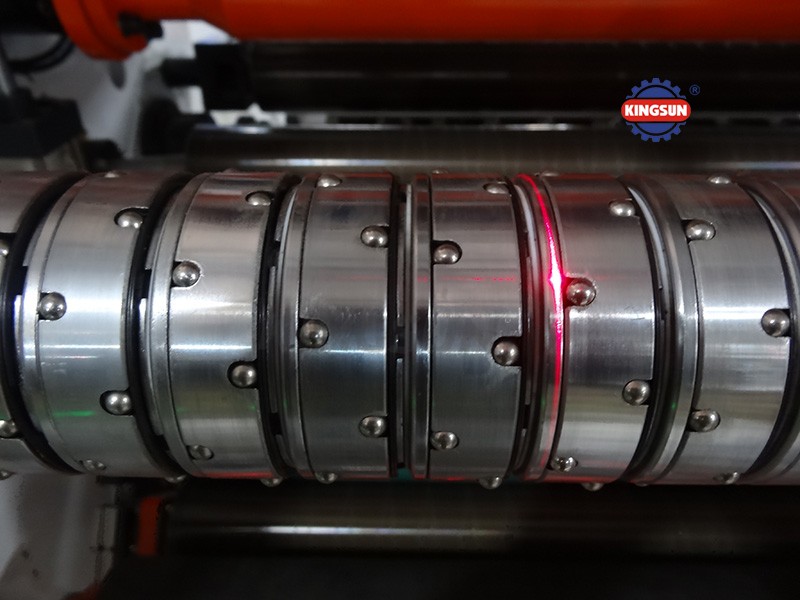

3.Rewinding adopts differential air shafts,driven by the variable frequency control motor, automatic tension control.

4.Unwinding is controlled by the inverter and driven by the variable frequency motor,automatic tension controlled.

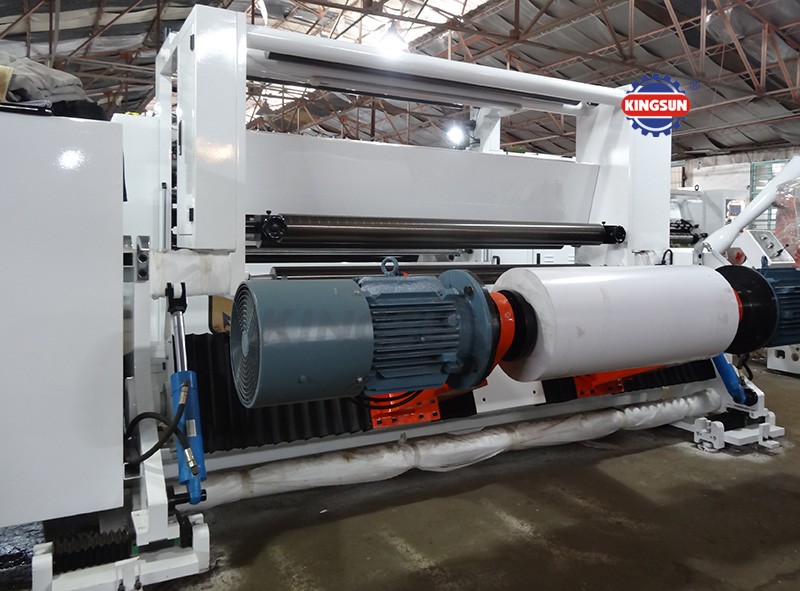

5.Unwinding adopts shaft-less loading and unloading,hydraulic lifting, easy for efficient loading and unloading, with web guide system.

6.With functions of meter length counting,diameter calculating,automatic stop while up to the set length.

7.Integrated with mechanical, electricity and pneumatic, with complete safety protections.

8. Main components use world famous brand so keep the top level high quality slitting equipment.

Technical specifications:

Model

KSFQ-1300G

KSFQ-1500G

KSFQ-1700G

Max width of material

1300mm

1500mm

1700mm

Max. unwind diameter

1200mm

1200mm

1200mm

Max.machine speed

400m/min

400m/min

400m/min

Max.rewind diameter

650mm

650mm

650mm

Min slitting width

50mm

50mm

50mm

Weight of machine

About4200kg

About4500kg

About4800kg

Total power

33kw

33kw

46kw

Overall dimensions

4100 x 4700 x 2150mm

4100 x 5000 x 2150mm

4100 x 5300 x 2150mm

Note: The specifications of this paper slitter rewinders can be tailor made as per your production need. We have many options so please feel free to tell us your requirement for slitting rewinding machines. Especially this KSFQ-G series slitting machines are very good for slitting label stock paper, fast speed, accurate and reliable.

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
