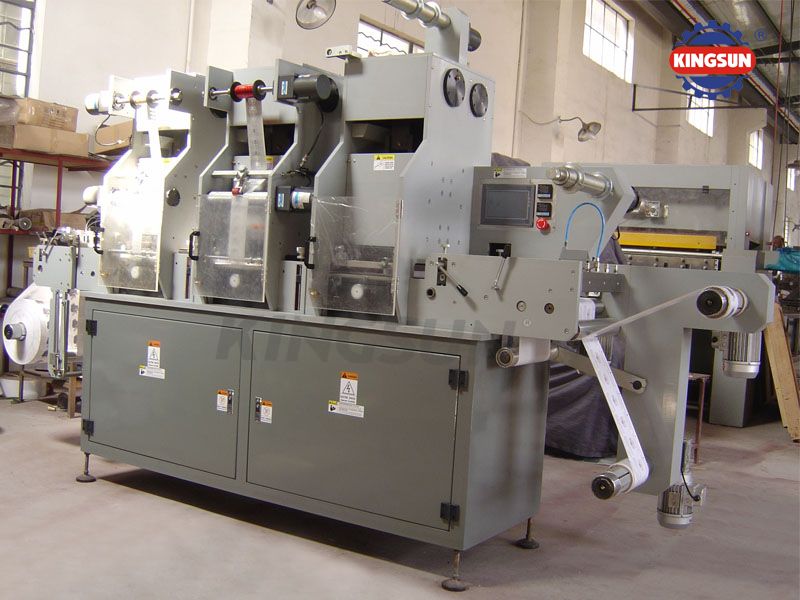

MYG-320 Label Hot Foil Stamping Die Cutting Machines

This label hot foil stamping machine is suitable for foil stamping and die cutting adhensice label,film label and hologram label ect, this machien is for hot stamping and die cutting at one process.

MYG-320 Roll Label Hot Foil Stamping Machine and Die Cutting Machines (Hot foil Printing Presses)

Introduction of MYG-320 model:

This series roll to roll hologram security label hot foil stamping machine and die cutting machine or roll fed hot foil printing press is kind of high quality label hot stamping equipment, it is suitable for holographic security label or normal label hot foil printing and die cutting adhesive label, film label and holographic label etc, this machine can hot stamping and die cutting , laminating and slitting at one process converting.Using the HMI touch-screen control panel, the operator can set-up and optimize the label parameters in a minimum amount of time and store the data for re-use at next time.

Features of hot stamping machine:

1.Feeding system use AC servo motor
2.Use AC frequency converter
3.PID automatic thermostatical control
4.Imported holographic positioning sensor

5.Hot stamping unit can be one unit, or two hot stamping unit for special labels.

6.It is fit for holographic label,with function of hot foil printing,laminating,and optional sheet cutting, slitting  etc.

7.Bigger size also can be tailor made so can fit for your production of hot foil printing and die cutting.

8. We can special made size as per customer request,the size is 420 x 320mm, 500 x 350mm, bigger unwinding and rewinding diameter to 800mm etc.

Main specifications:

Stamping cutting area

320x250mm

Max paper width

340mm

Max. unwinding diameter

500mm

Max. rewinding diameter

500mm

Speed

1200-8000 stamps/H

Fiol size

≤Ø180 ID=25/76mm

Position precision

±0.15mm

Foil feeding shaft

2 shafts

Main motor power

2.2kw

Whole machine power

4.5kw/280V

Overall dimensions

2300X800X1850mm

Weight

About 1500kg

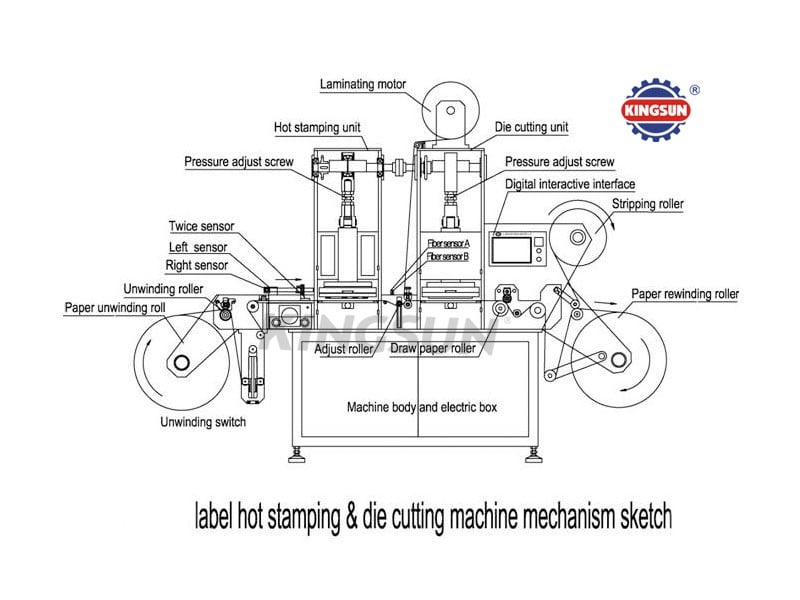

 Machine sketch diagram:

 Flat bed label converting systems for hologram label hot foil printing and die cutting.

hologram label hot foil stamping machine

 Flat bed label converting systems for hologram label hot foil printing and die cutting.

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
