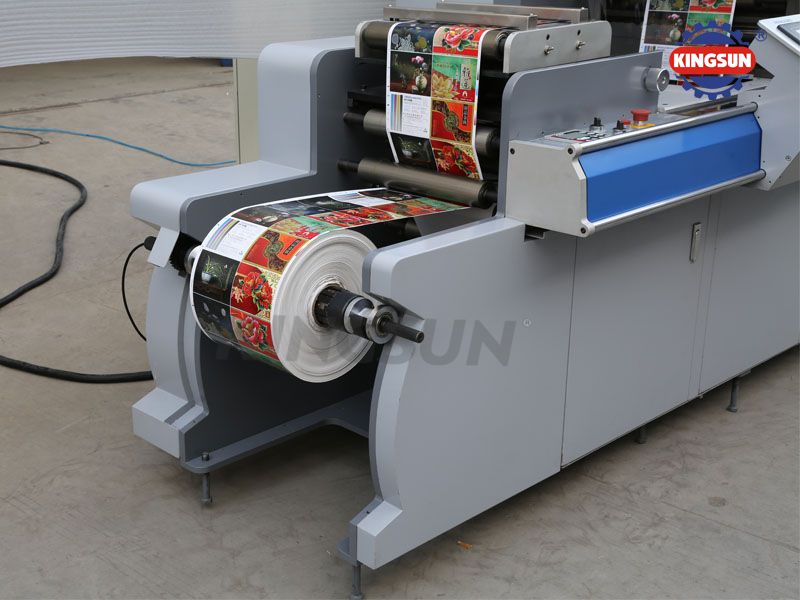

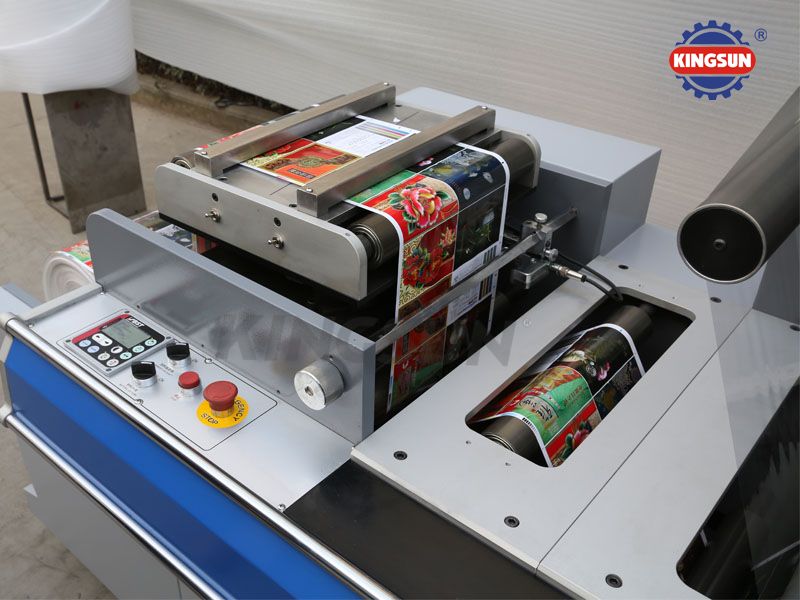

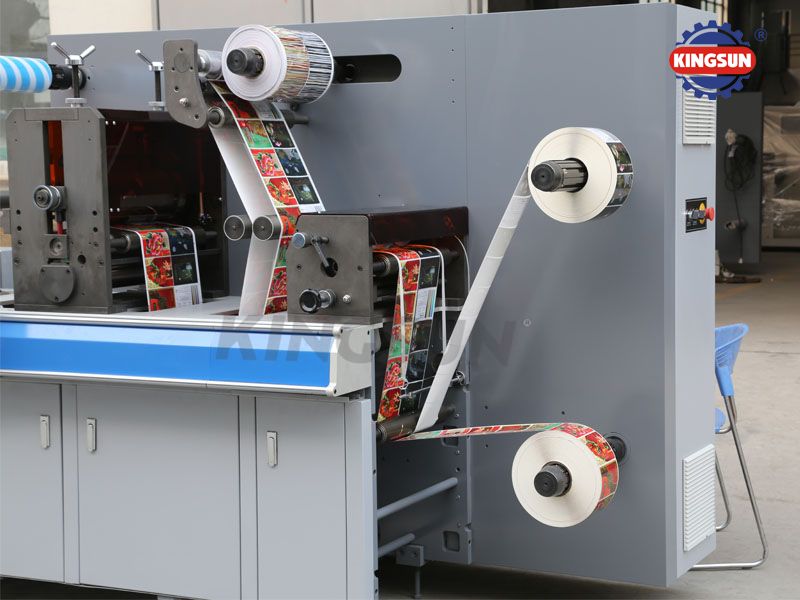

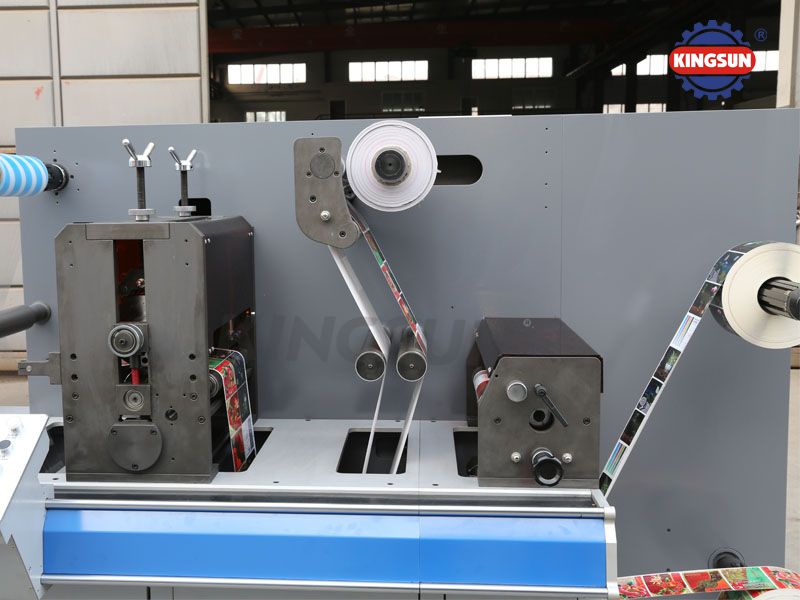

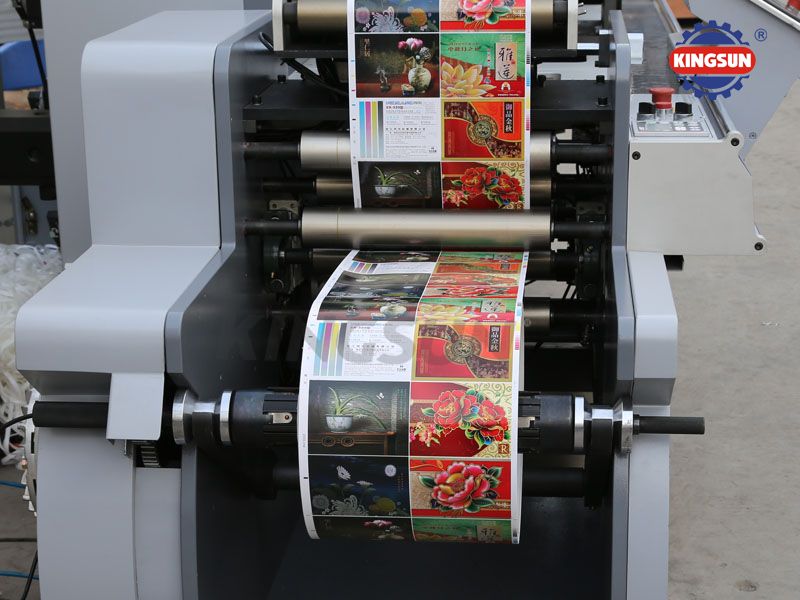

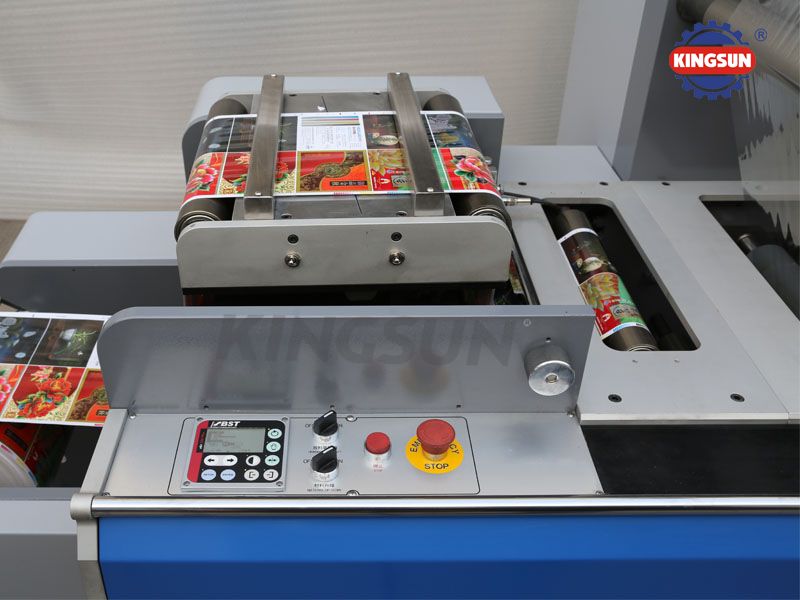

FM-320 Series Automatic Rotary Label Die Cutting Machine

FM-320 Series Automatic Rotary Label Die Cutting Machine

This label rotary die cutter is new developed label converting machine equips with inline slitter.It adopts latest Rexrtoh-Bosch(Germany) servo and control system, include: unwinder, web-guider, lamination, register die-cutter, slitter and rewinder.

kingsungroup

E-mail Us

PDF Download

Video Link

Product Details
Get a Quote Now

FM-320 Series Automatic Rotary/Semi Rotary Label Die Cutting Machines

Introduction of FM-320 die cutter:

This FM-320 series automatic rotary label die cutting machine is new developed converting machine equips with inline slitter.It adopts latest Rexrtoh-Bosch (Germany) servo and control system, include: unwinder, web guider, lamination, register die-cutter, slitter and rewinder, multi-combination functions.

It can be full rotary or semi-rotary die-cutter according to the production requirement. When semi-rotary die-cutter, the tension among unwinder, web-guider and rewinder will be the same (different from traditional intermittent type), the material will not run away during the die-cut. Semi-rotary die-cutting unit adopts one big magnetic cylinder, if you have different applications, the only job is to change the flexible die. This machine has the characteristic of fast speed, super accurate, easy operation, high efficiency and less cost. It’s good for all kind of label die-cutting jobs,include short run to long run. You can change the magnetic roller accordingly when you do big orders. It will highly increase the die-cutting quality and output finished label. This label equipment committed to make the maximum profit for you, it’s an ideal label converting machine for printing house .

Technical specifications:

Max die-cutting speed(rotary)	120m/min
Max die-cutting speed (semi-rotary)	65m/min
Max die-cutting length(rotary)	190.5-539.75mm
Max die-cutting length(semi-rotary)	100-350mm
Max die-cutting width	300mm
Max. web width	320mm
Slitting width	20-300mm
Max. unwinding diameter	600mm
Max. rewinding diameter	600mm
Die-cutting accuracy	±0.1mm
Voltage	380V 3P
Overall dimensions	2850x1000x1500mm
Weight	About 2400kg
