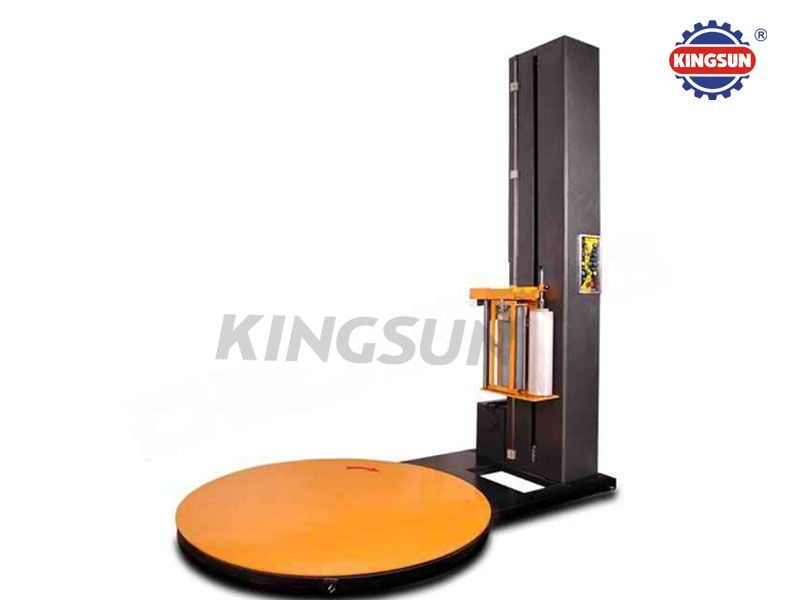

Automatic Pallet Pre-Stretch Wrapping Machines
Product Feature
Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff and drink etc.
Controls
OMRON PLC
Photo-eye pallet height sensor
0-9 separate top, bottom and up-down wrap count selectors
Photo-eye sensing delay
Reinforce wrap allow more wrap on same location
Film Tension Control adjustment on the panel
3-12 RPM variable carriage up-down speed
Cycle pause capability
Separate start, reset and emergncy stop buttons
Manual carriage up-down switch
Turntable jog button
Turntable
650mm Diameter Structural Steel Plate
85mm low profile turntable
Soft start, soft stop
Heavy duty chain drive
Film carriage
Powered pre-stretch system up to 200% to min film consumption (Pre-stretch ratio can be Specially made according your requirements.)
Carriage door opens for effortless roll change and thread film
Film delivery variable speed by separate DC Drive Motor
Film dancer-bar with variable speed output
Heavy duty double-chain carriage lift, calm and safety
Other
Hinged mast for easy handling
Rear Forklift transportable
Option
Ramp
Pneumatic top plate
Pneumatic film grabs and cut off system
Packing height: 2800mm
Turntable diameter: 1800mm, 2000mm
Turntable capacity: 2500kgs, 3000kgs
Machine color
Technical Specification
|
Model |
T1650F |
|
Wrapping Size(L×W)(mm) |
(500-1200) ×(500-1200) |
|
Wrapping Height(mm) |
L Type:(800-1800) / H Type:(800-2400) |
|
Wrapping Efficiency(loads/hour) |
20-40 |
|
Turntable Speed(rpm/min) |
3 - 12 |
|
Turntable Diameter(mm) |
Φ: 1650 / H: 85 |
|
Turntable Loading(max)(kg) |
2000 |
|
Electrical Requirement |
Single Phase 220V / 50HZ / 20A |
|
Power(kw) |
Turntable:0.75; Film Carriage:0.4; Steel Tower:0.37 |
|
Film Carriage |
Pre-Stretch Type |
|
Machine Weight(kg) |
900 |
|
Machine Dimension(mm) |
L Type:2545×1650×2280 / H Type: 3500×1800×980 |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
