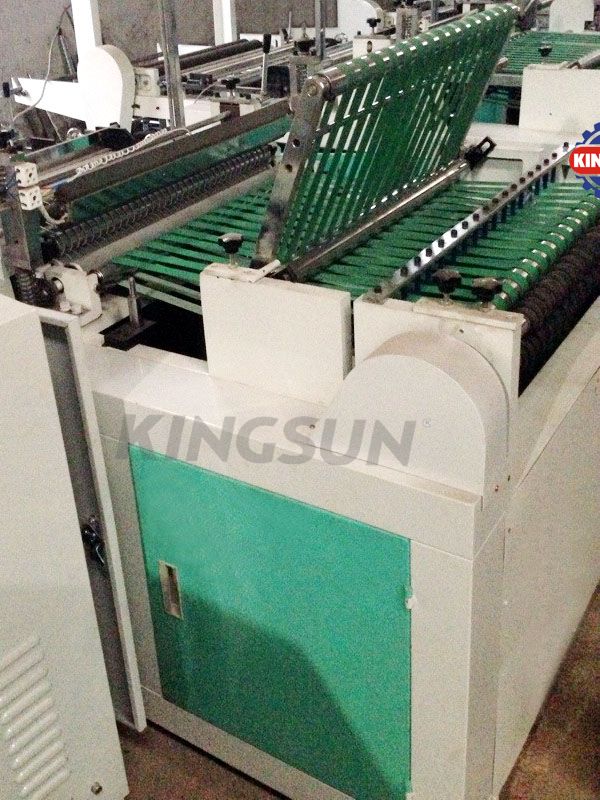

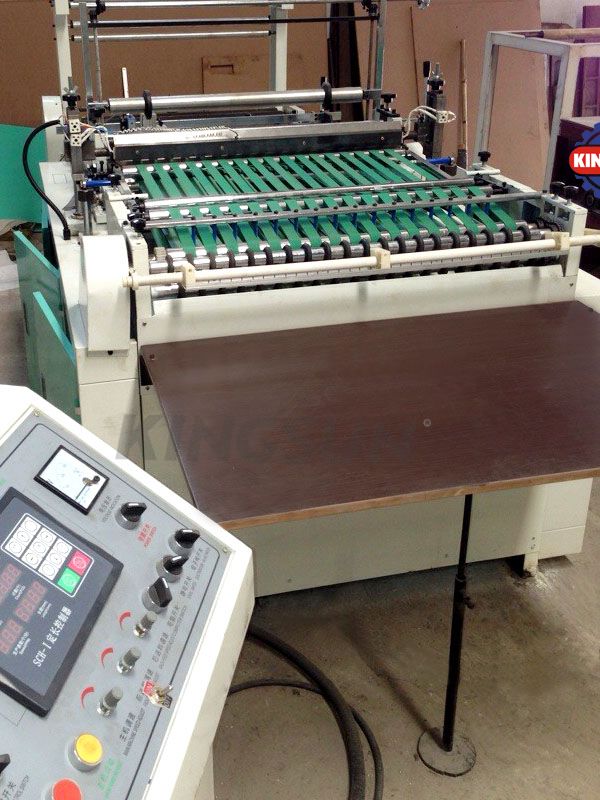

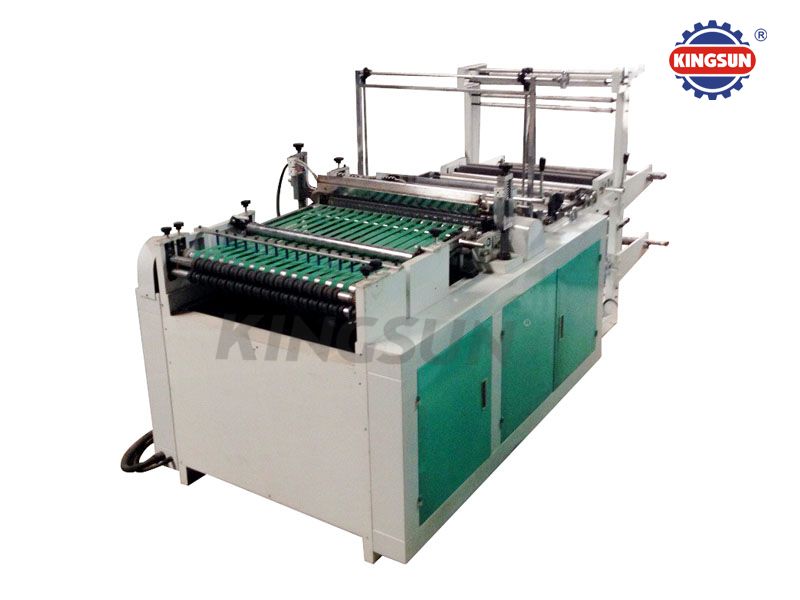

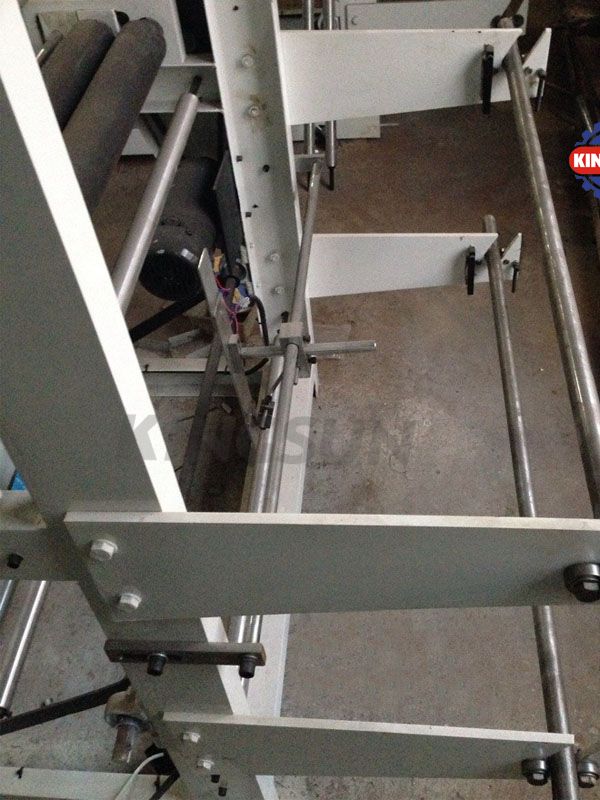

RDL Series Multi-functional Computer Control Thermal Cutting Side Sealing Bag Making Machine
Introduction：
This side sealing bag making machine is suitable for thermal cutting and bag making of such printed and non-printed plastic films as BOPP, OPP and PE, etc., and it is a kind of ideal equipment for making sock bag, towel bag, bread bag and ornaments bag etc.
Features:

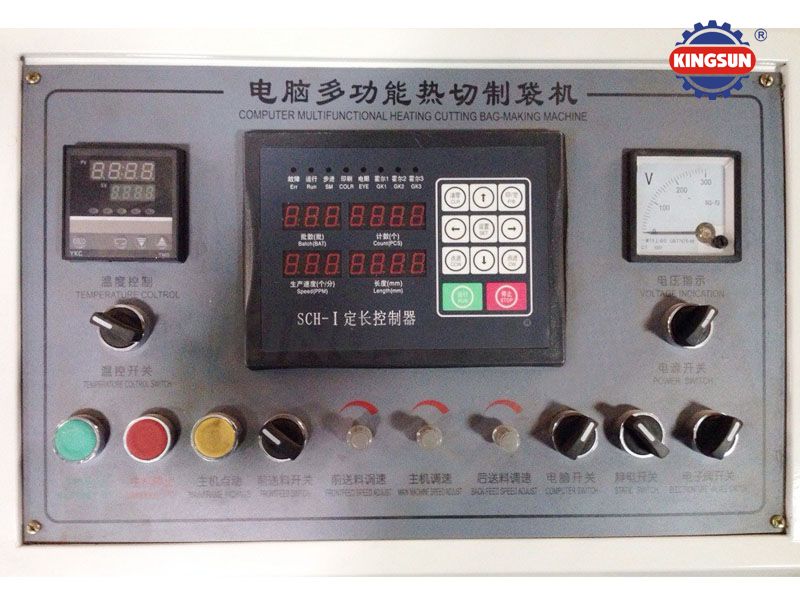

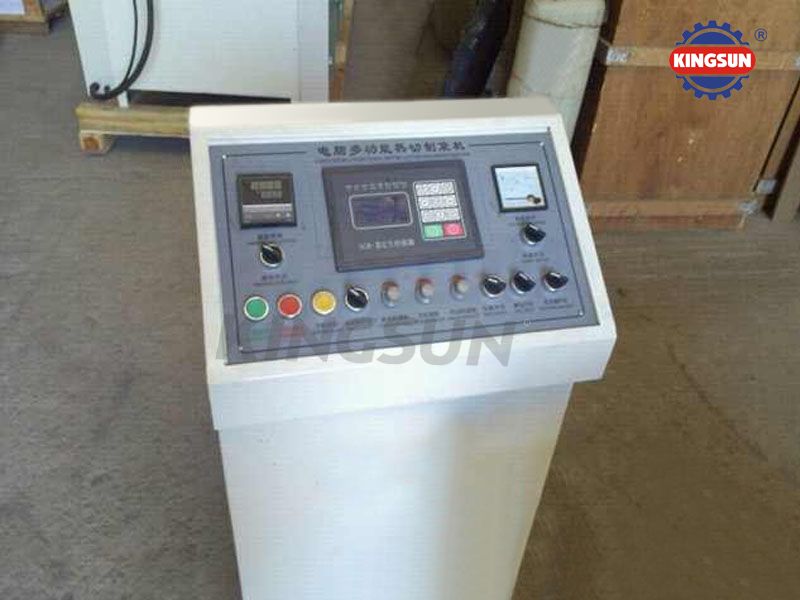

The whole machine adopts microcomputer control and material-pulling by stepping motor. (Servo motor control system available for option)
Arbitrary fixed-length, accurate and stable step photoelectric tracking, and stop automatically when the color mark is lost
Automatic and synchronous stick double-side tape, automatic punching
Automatic counting and setting alarm
Heating-sealing decorative border, automatic constant temperature, firm and smooth sealing
Technical specifications:
|
Model |
RDL-700 |
RDL-800 |
RDL-900 |
RDL-1000 |
|
Max. width of material |
700mm |
800mm |
900mm |
1000mm |
|
Max. cutting length |
50-70mm |
|||
|
Max. bag-making width |
680mm |
780mm |
880mm |
980mm |
|
Capacity |
40-140pcs/min |
|||
|
Total power |
3.6kw |
3.8kw |
4.5kw |
4.7kw |
|
Weight |
900kg |
1000kg |
1100kg |
1200kg |
|
Overall dimension |
350×110×180cm |
350×120×180cm |
350×130×180cm |
350×140×180cm |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
