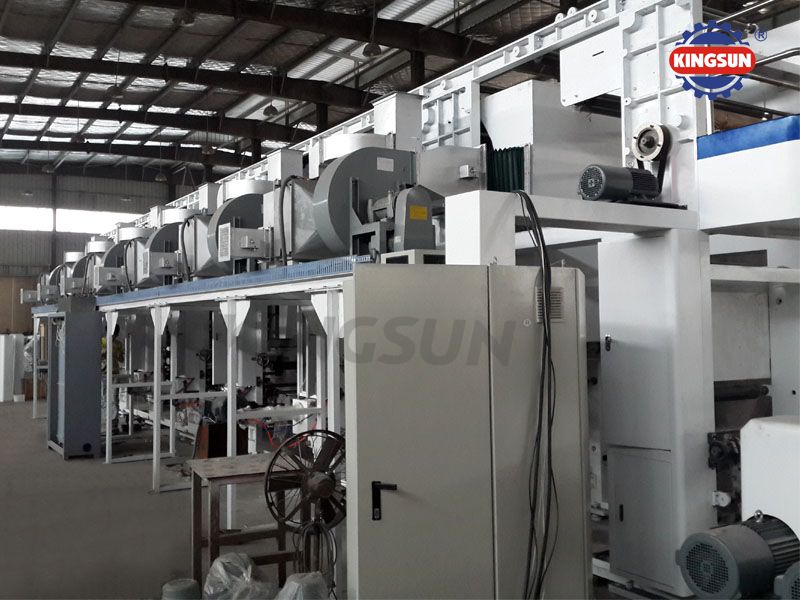

KYJD-800 High Speed Rotogravure Printing Machines

KYJD-800 High Speed Rotogravure Printing Machines (7motors)

Introduction:

This series computer control high speed rotogravure press is suitable for printing BOPP､PET､PVC､PE､paper etc.with good performance for multi-color continuous printing, this is a kind of ideal rotogravure printing machine for flexible printing and packaging industry.

Features:

1.Whole machine tension control by 5 motor, very stable

2.Back press type pneumatic doctor blade, shaft-less plate mounting

3.Air-electrical parts all PLC control, man-machine interface touch screen｡

4.Circulation inking system｡

5.High precision gera box, patent technical

6.Unwind and rewind double station, non-stop material splicing

7.Automatic computer color register system with video camera

8.Optional for steam, gas heating.

Technical specification:

Printing color:4-12color

Printing length 380-1000mm

Printing width: 800mm/1000/1100/1200/1400mm

Machine speed:170m/min

Printing speed 10-150m/min

Printing precision ±0.12mm

Machine weight: about 30000kg

Size of overall machine: 20500mm×4500mm×3700mm
