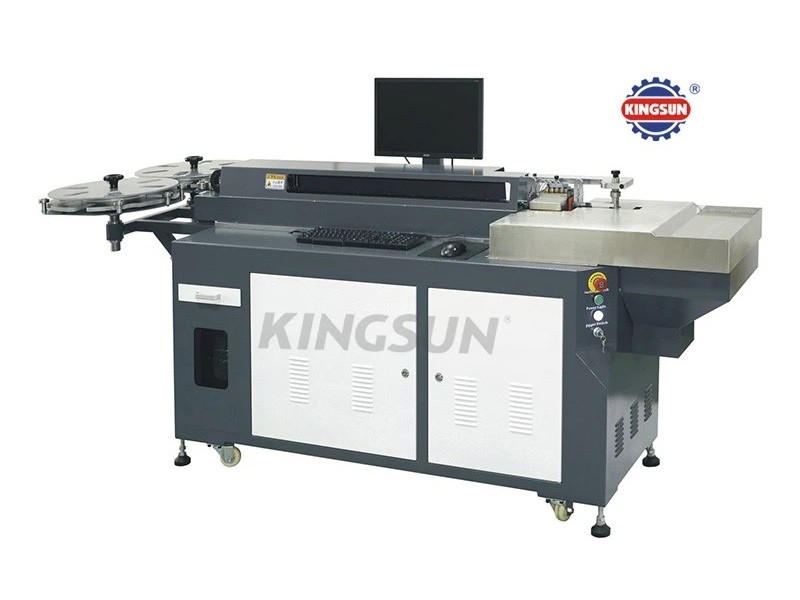

KT-830 Cutting Rule Bending Machines
Functions and usage:
1)Possess of functions such as bending, bridge, front lipping, back lipping, cutting, flat cutting six functions.2)Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.
3)Unique imported mould tool design, easy to bend pattern, high precision of size, durable
4)In order to guarantee precision and long-life span, transmission and control parts are imported
5)Self-developed latest bending control system, easy to operate and upgrade available.
6)Fully English & Chinese interface, easy to learn how to operate, make bending work easy.
7)It can be installed soon after bending patterns form the machine, no need extra more hard work.
8)It's widely used in box mould, doll mould bending.
9)Exactly to realize fully automatic bending, help to save plate making time.
Main specifications:
|
Bending Blade thickness(mm) |
0.45mm/0.71mm/1.05mm/1.07mm |
|
Bending Blade height(mm) |
8mm-23.8mm-30mm |
|
Bridge width |
Over 5.5mm any sizes available. |
|
Bridge height |
15mm, 18mm |
|
Max. bending angle |
100° |
|
Min. ARC radius of 90 degree |
0.4MM |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending, cutting, lipping, bridge |
|
Cutting methods |
Swing cutting or Auto flat cutting |
|
Optimal pattern format |
Auto CAD, Core Draw files are supported |
|
Air supply |
0.6mpa |
|
Power supply |
380V 50/60Hz (Standard) 3 Phrase |
|
Machine total power |
1.3KW |
|
Gross weight. |
450KGS |
|
Overall dimension |
2700×1050×1350mm(L×W×H) |
|
H.S. Code |
8462219000 |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
