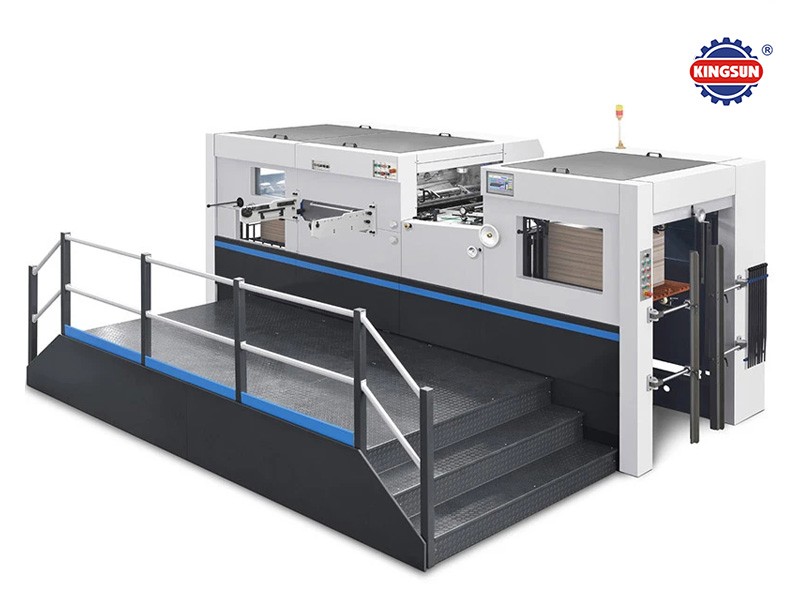

KMHC-1060/1080 model fully automatic flatbed die cutting machine
KMHC-1060/1080CE model fully automatic flatbed die cutting creasing machine with stripping

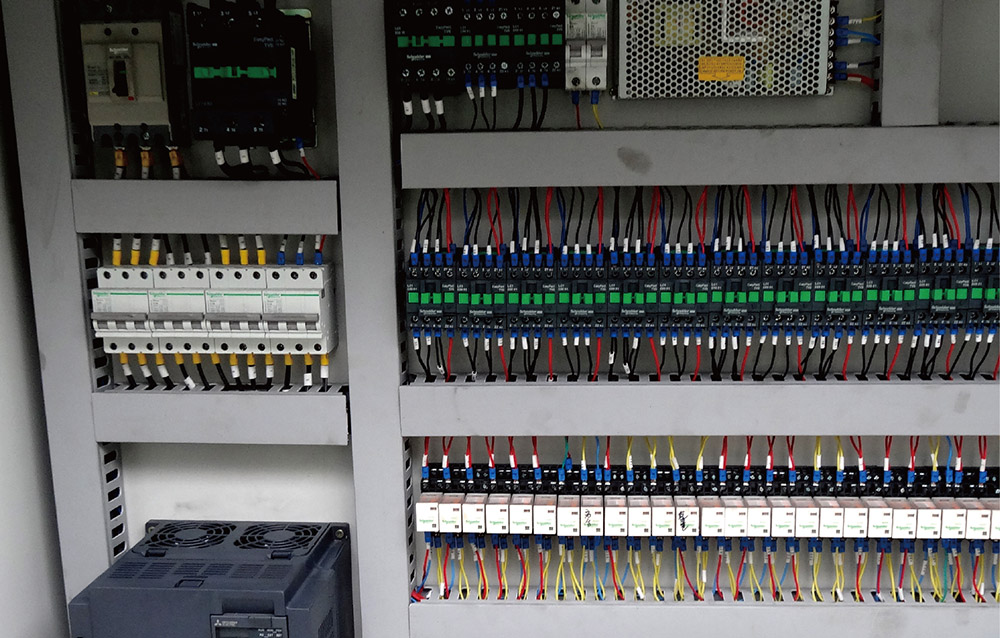

The KMHC-1060/1080 model fully automatic die cutting machine is necessary equipment for printing finishing such as die cutting, creasing and embossing etc. Unique drive gears are adopted high-precision indexing mechanism, pneumatic clutch, overload protection, automatic compression relief etc, to ensure stable and high speed running of the machine. This machine is equipped with practical and reliable mechanism such as pre-stack device, secondary delivery mechanisms, manual sampling etc, which ensure the excellent performance of the machine. Electrical components and driving parts use world well-known brands to ensure die cutting precision and reliability. Also man-machine interface is able to monitor machine running status, trouble shooting and indicating relevant help information which fully actualized man-machine communication.
Main specifications:
|
Model |
KMHC-1060 |
KMHC-1080 |
|
Max sheet size |
1060 X 760mm |
1080 X 780mm |
|
Min sheet size |
400 X 350mm |
|
|
Max die cutting size |
1050 X 750mm |
1070 X 770mm |
|
Gripper margin |
9-17mm |
|
|
Inner chase size |
1120 X 786mm |
|
|
Stock range |
100-2000gsm paper (0.1-2mm) |
|
|
|
≤5mm corrugated paper |
|
|
Die cutting accuracy |
≤ ±0.1mm |
|
|
Max die cutting force |
300tons |
|
|
Max die cutting speed |
7500 sheets/H |
|
|
Max feeder pile height |
1600mm (wooden pallet included) |
|
|
Max delivery pile height |
1400mm ( wooden pallets included) |
|
|
Main motor power |
11kw |
|
|
Air requirement |
0.6-0.7Mpa, ≥0.37m³/min |
|
|
Full load power |
17KW |
|
|
Machine weight |
About 16tons |
About 17 tons |
|
Overall dimensions |
6800 X 4300 X 2310mm |
|
