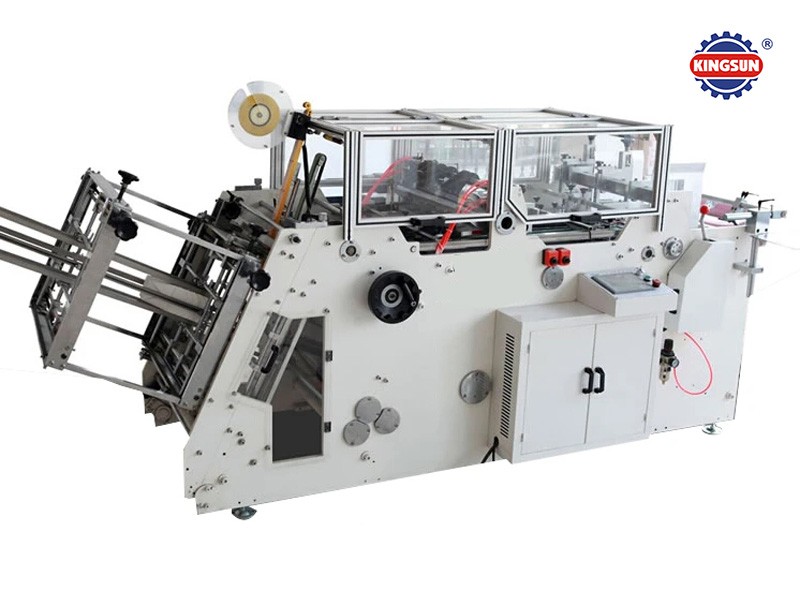

KJ-800D Model Take Away Food Box Making Machine

KJ-800D Model Take Away Food Box Making Machine | Hamburger Box Making Machine

Introduction:

Automatic take away food box making machine, or hamburger box making machine is molding equipment specialized in producing various paper products, which can produce hamburger box, square box, potato chipper, food box(portable outside),and other boxes made by paperboard and corrugated paper.

Working principle:

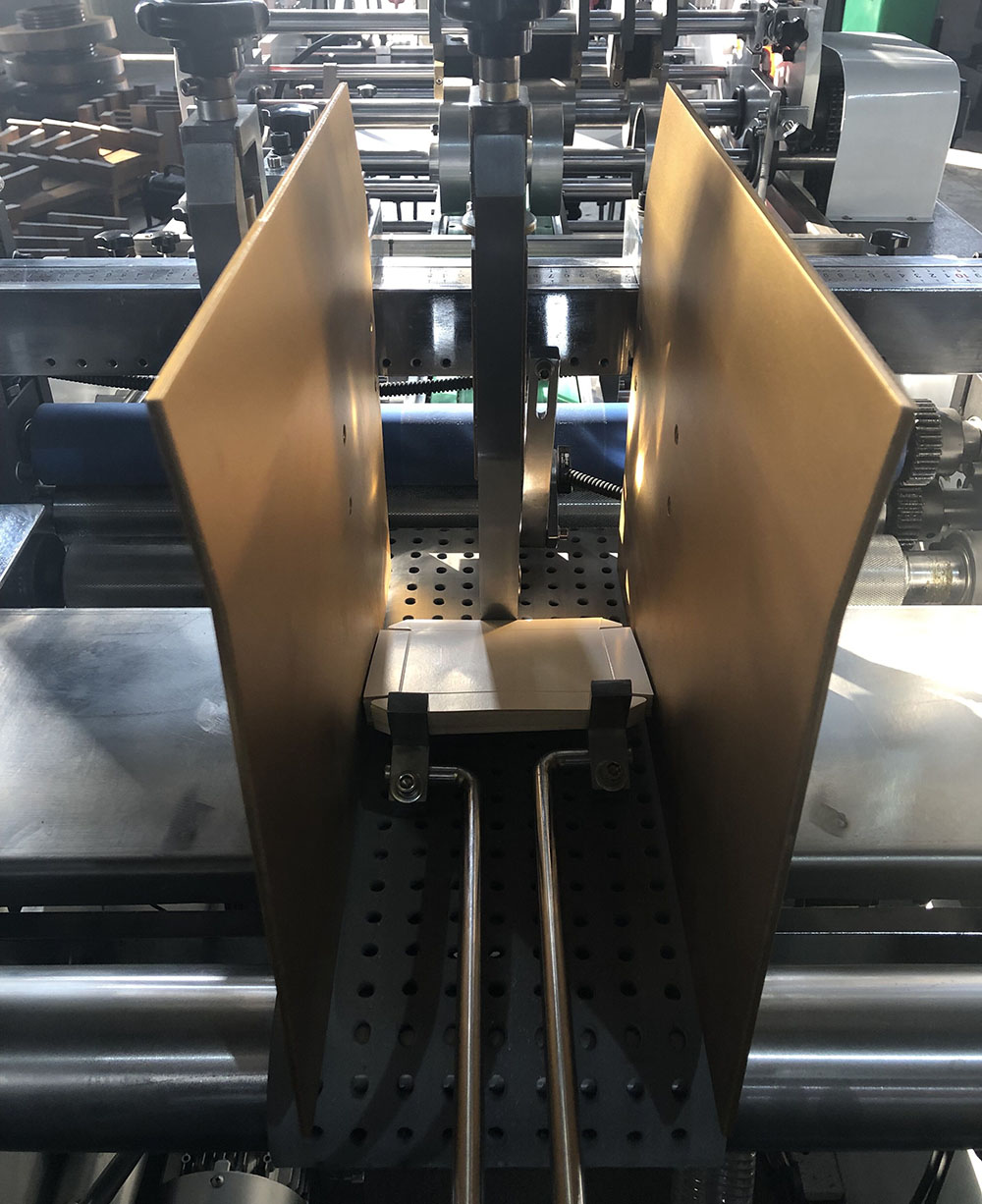

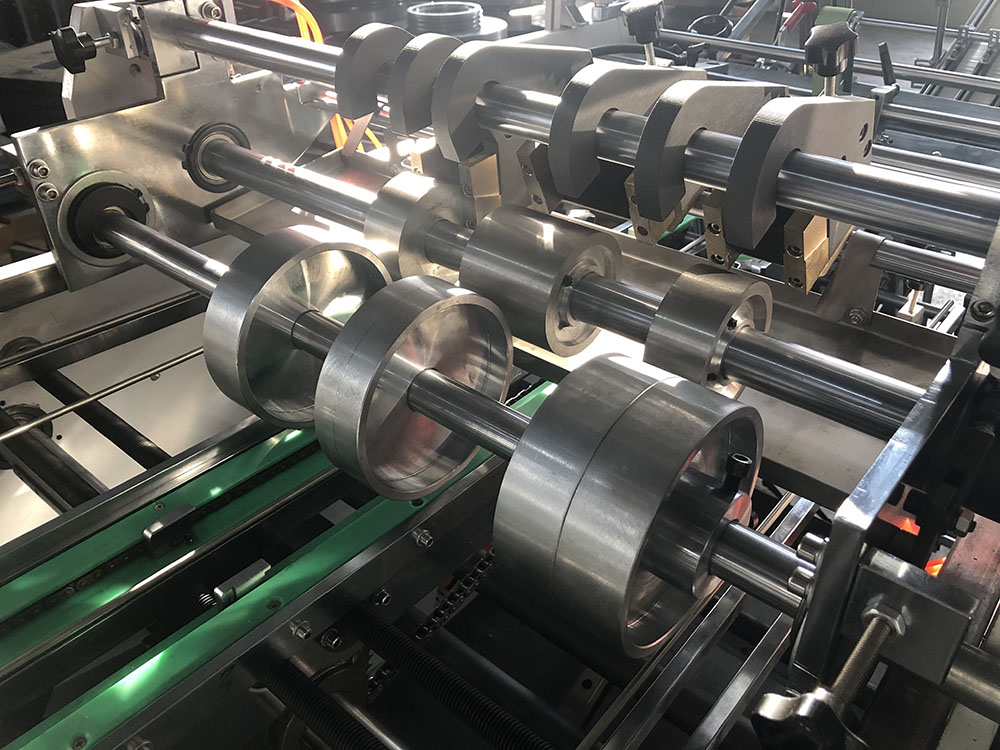

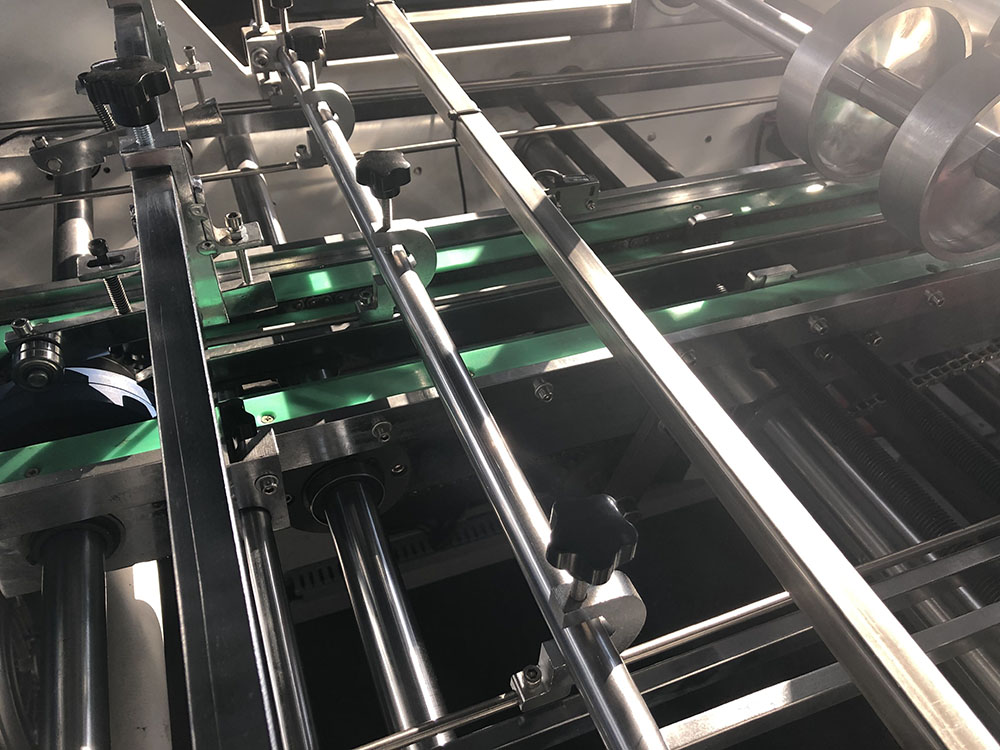

The printed and die-cut cardboard feed from paper feeder, brought out to the conveying chain, and then sent to die, in the process card paper is coated with a water-based glue, glue position can be adjusted, the amount of coating glue can be adjusted in production without stopping, cardboard film coating adhesive to the collector after forming, automatic stacking and counting, and according to a presetting number of stack automatic mark without stopping the machine.

Main Features:

1. The machine is with stable quality, high efficiency, speed up to 180PCS/MIN

2. Multi-functional :In the same machine, only need to change a touch can create different specifications of the boxes, boxes, hamburger boxes, boat shaped box, food packing box, carton products such as chicken

3. The machine uses the water-based glue device, can achieve high efficiency, high accuracy. Water based adhesive is a water-soluble adhesive glue for food grade (high security).

4. This machine is mostly used high quality seal bearing, long service life, and good stability.

5. The machine uses the PLC intelligent control system, in the paper, no paper state automatic shutdown.

6. The main mold with pine material, the replacement of the mold with high efficiency.

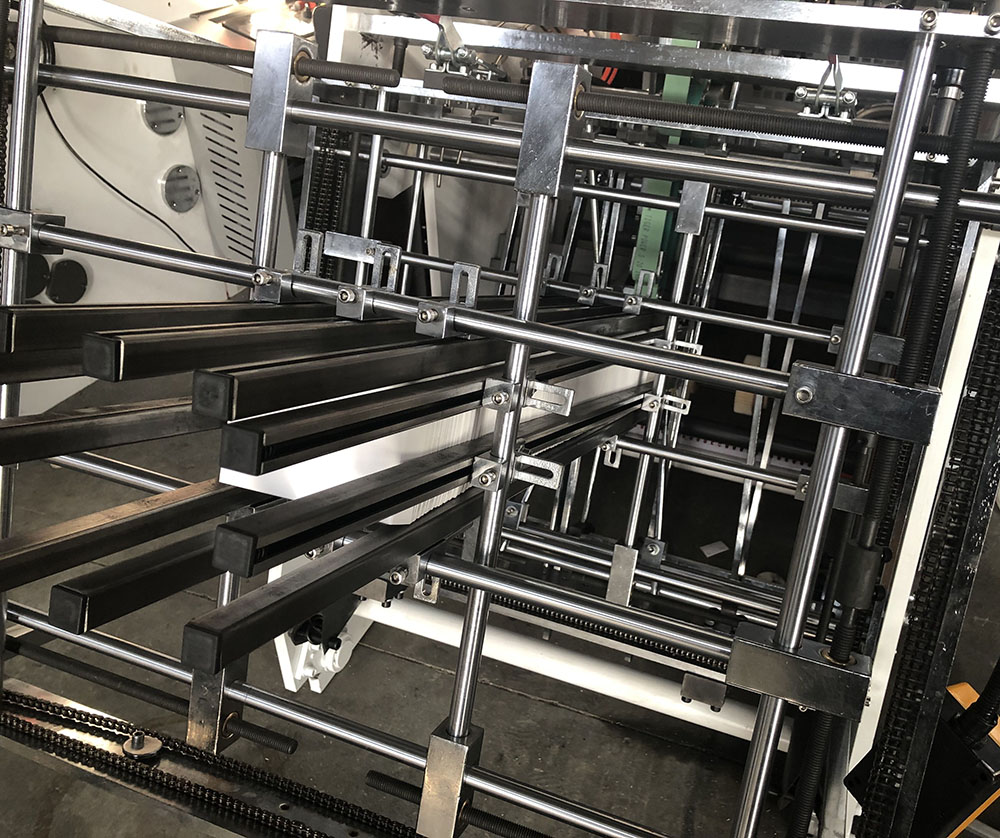

7. Can automatically collect deposits, inventory of finished goods.

8. Synchronous belt drives all adopt high quality, make the machine running almost no error.

Specification:
