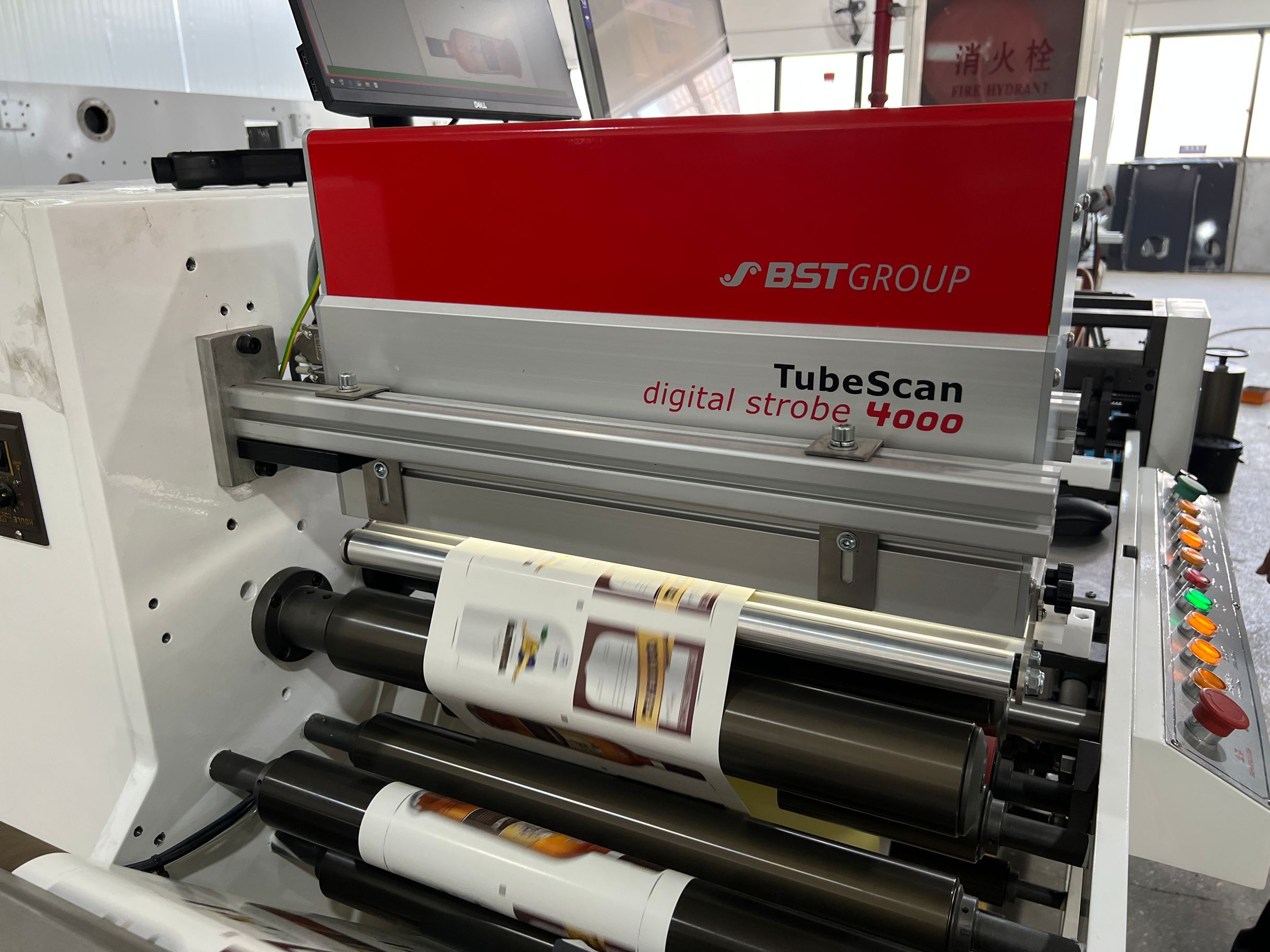

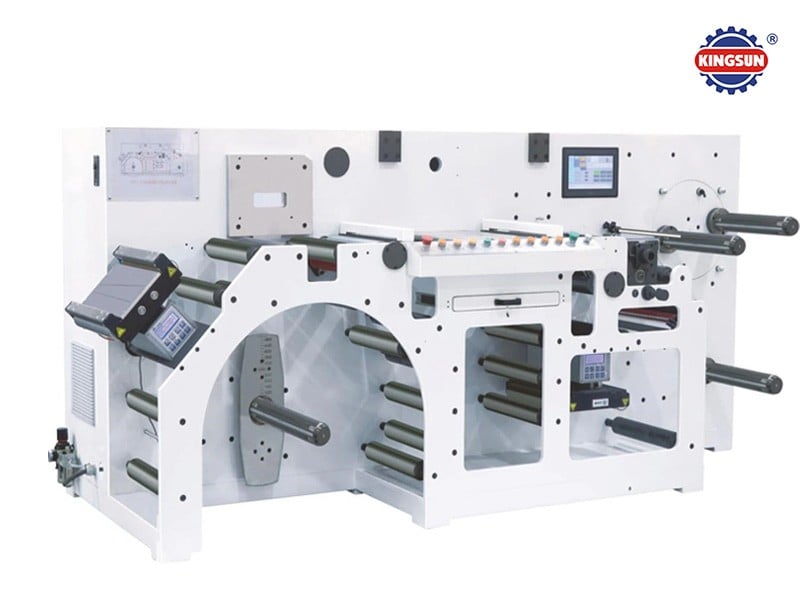

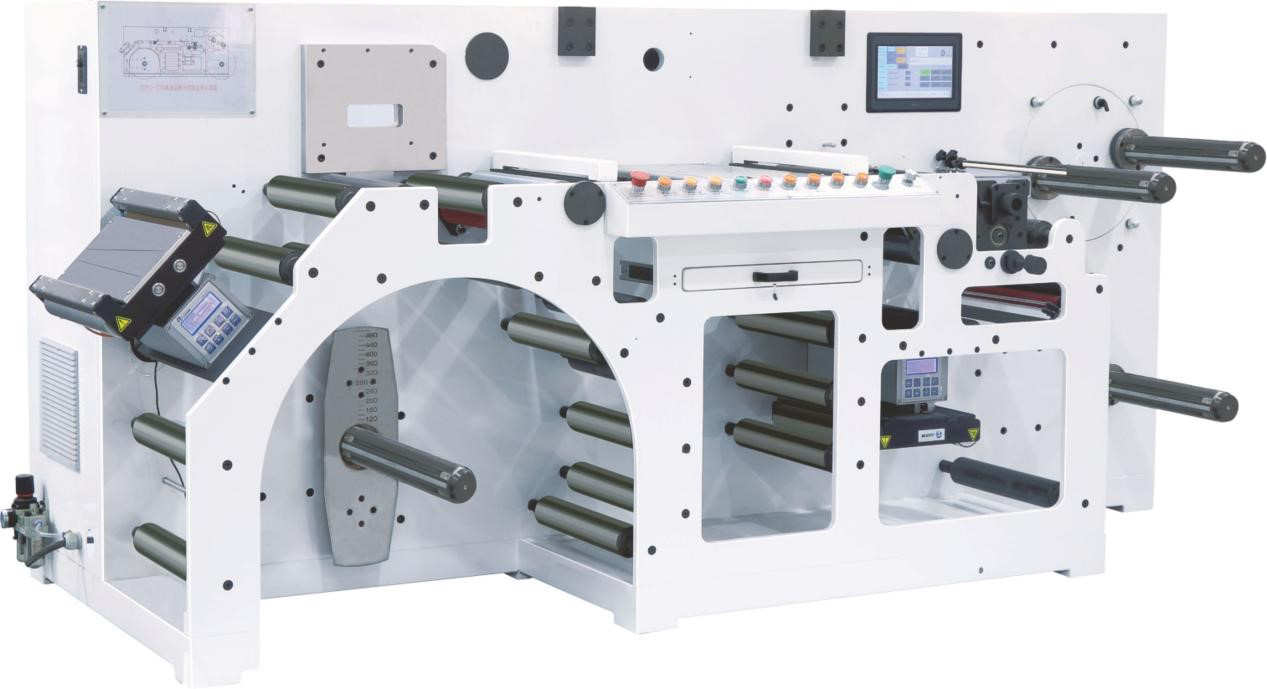

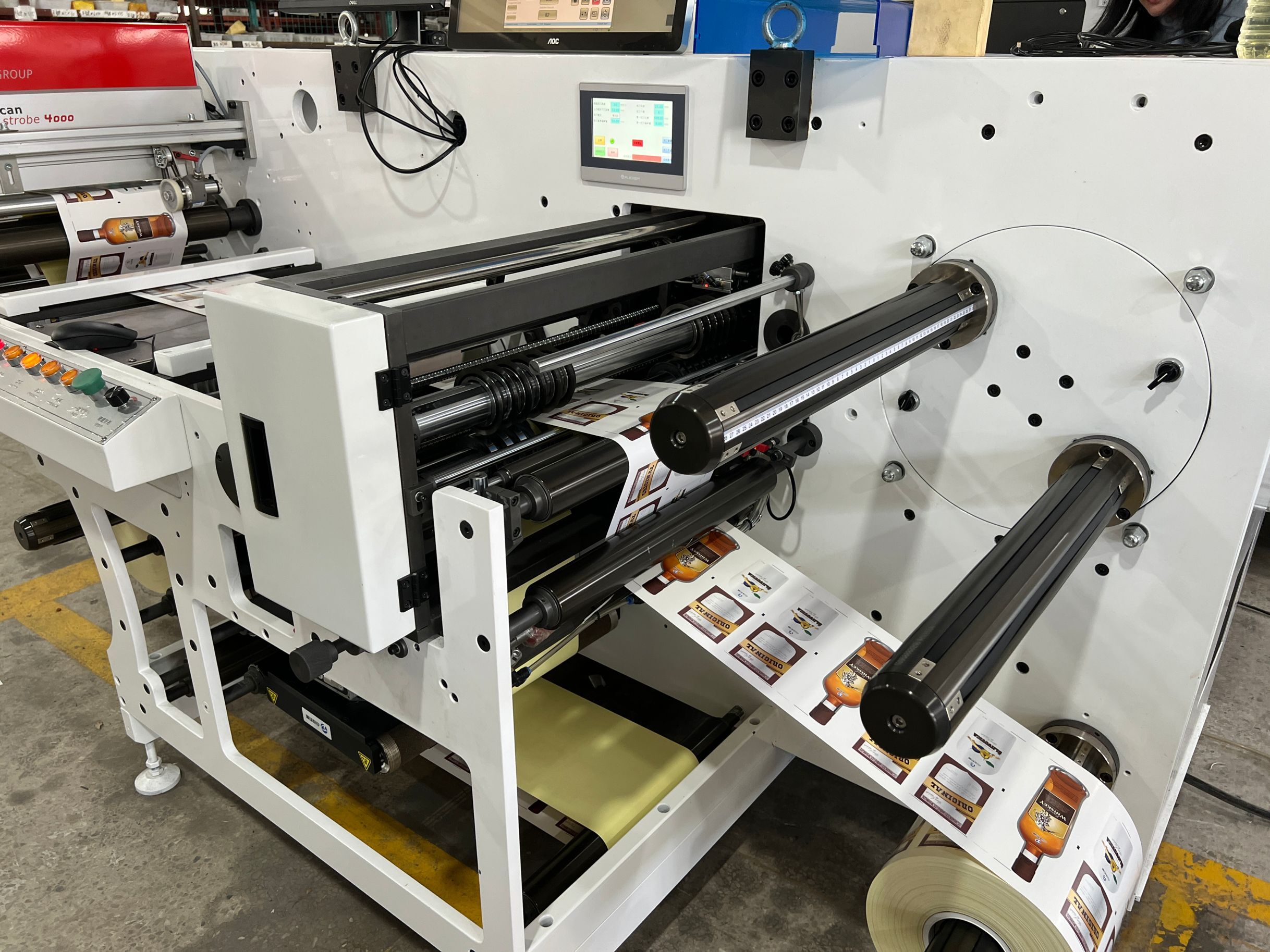

This high speed label inspection and slitting machine platform was developed by our own technology which blend with world advanced inspection system. Full servo control, both unwinding and rewinding unit choose tapper tension control system. World brand EPC web guide, imported touch screen and PLC control system. It is good for inspection of printed self-adhesive label, PVC/PET, PP film etc.
kingsungroup
E-mail Us
PDF Download
Video Link
This label inspection and slitting machine platform was developed by our own technology which blend with world advanced inspection system. Full servo control, both unwinding and rewinding unit choose
tapper tension control system. World brand EPC web guide, imported touch screen and PLC control system. It is good for inspection of printed self-adhesive label, PVC/PET, PP film etc.
Main Specification:
|
Models |
KPT-370 |
KPT-480 |
KPT-550 |
|
Slitting speed |
300m/min |
300m/min |
300m/min |
|
Max web width |
370mm |
480mm |
550mm |
|
Effective inspect width |
350mm |
460mm |
530mm |
|
Max unwinding diameter |
800mm |
800mm |
800mm |
|
Turnover Rewinding diameter |
450mm |
450mm |
450mm |
|
Max rewinding diameter down |
800mm |
800mm |
800mm |
|
Min slitting width |
15mm |
15mm |
15mm |
|
Straight knife( Razor) |
Optional |
Optional |
Optional |
|
Air pressure |
0.8Mpa |
0.8Mpa |
0.8Mpa |
|
Total power |
About 11kw |
About 14kw |
About 16kw |
|
Inspection system |
Custom choice |
Custom choice |
Custom choice |
|
Machine weight |
1.8T |
2T |
2.2T |
|
Dimensions |
302 x 125 x 140cm |
302 x 133 x 140cm |
302 x 140 x 140cm |
Machine Drawing:
