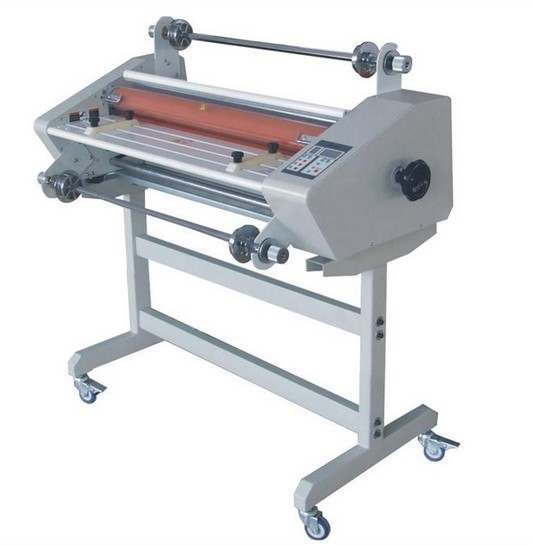

FM-480 Model Double Sides Thermal Film Laminator Machine
After printing equipment, Available for photographic, Ads shop and copy shop to do lamination work, adding a protective layer on books cover, photographic, color pages, documents, charts, drawings, indoor advertising products, etc.
kingsungroup
E-mail Us
PDF Download
Video Link
FM-480 Model Double Sides Thermal Film Roll Laminator Machine
Application:
After printing equipment, Available for photographic, Ads shop and copy shop to do lamination work, adding a protective layer on books cover, photographic, color pages, documents, charts, drawings, indoor advertising products, etc.
Applicable Laminating Medium:
Photo paper, PP, self adhesive PP, backlit film or transparent film
Features:
1. Economic type 480mm width thermal hot and cold lamination machine;
2. Silicone rubber hot rollers;
3. Reverse for clearing jams;
4. Variable Speed and Temperature control;
5. Steel body and cover;
6. One sided and two sided laminating;
7. Hot and cold laminating;
8. Temperature memory function;
9. with film trimmer (optional)
Specifications:
Model Number: FM-480
Power Supply: AC 100,200,220~240V 50 / 60Hz 120V 60Hz
Power Consumption: 900W
Max Laminating Width: 480mm
Diameter of roller: 55mm
Film Thickness: 10-80 microns
Max Laminating Speed: 0.20-1.60m/min
Ready Time: 6-10min
Heating Method: Hot Roller
Driving Motor: DC geared motor
Temperature Control: Digital
Max Temperature: 140
Speed Control: 10 settings
Transport Type: 4 rollers
Film Core Size: 1" /2.25"/3",
Reverse: Yes
Dimensions: 880 x 550 x 450mm
Unit Weight: 65KGS
Certification: CE
Advantages:
1) Hot roller technology;
2) Laminate both hot and cold;
3) Tension control on film mandrel;
4) Speed and temperature control;
5) Anti-Jam reverse switch;
6) Attached safe shield;
7) CE approved
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
