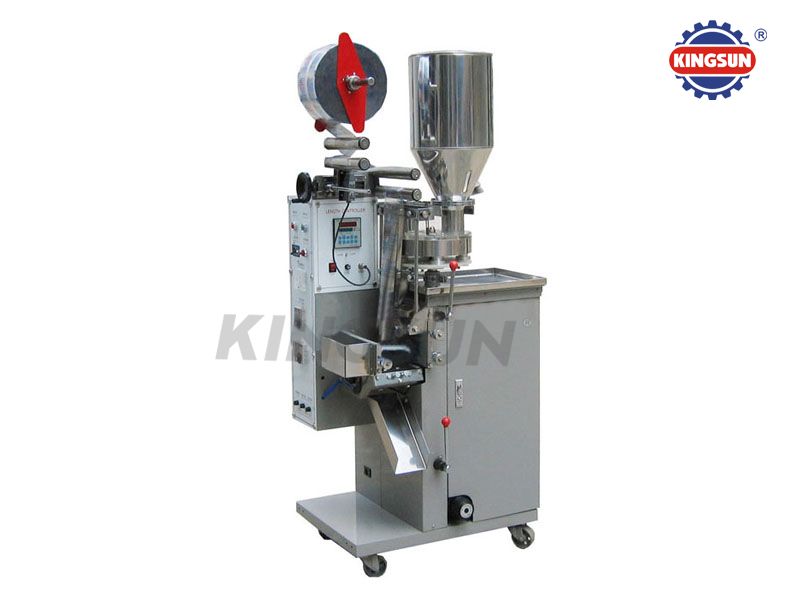

Automatic Granule Packing Machine DXDK Series
Product Feature:
This machine is suitable for packaging of soft bags of granular materials in the field of food, daily chemical and medicine etc. It adopts step-less bag length adjustment and adjustable volumetric cups control filling. It’s suitable for single Paper/PE, Cellophane/PE, Plated aluminum/PE, BOPP/PE, Nylon/PE, and other heat-able sealed laminated film as packaging material.
Technical Specification:
|
Model |
DXDK-20II |
DXDK-40II |
DXDK-150II |
|
Voltage (V/HZ) |
AC 220V/50HZ, or 110V/60HZ |
||
|
Power (W) |
1300 |
1700 |
|
|
Packing volume (ml) |
0.5-20 |
5-40 |
30-150 |
|
Packing speed (bags/min) |
50-100 |
50-90 |
35-75 |
|
Bag width (mm) |
25-70 |
30-80 |
30-110 |
|
Bag length (mm) |
35-85 |
50-110 |
80-150 |
|
Dimension (L x W x H) mm |
790×600×1780 |
800×700×1900 |
|
|
Net Weight (Kgs) |
350 |
350 |
400 |
|
Model |
DXDK-500II |
DXDK-1000II |
DXDK-2000II |
|
Voltage (V/HZ) |
AC 220V/50HZ, or 110V/60HZ |
||
|
Power (W) |
1500 |
1700 |
2000 |
|
Packing volume (ml) |
20-500 |
50-1000 |
50-2000 |
|
Packing speed (bags/min) |
35-70 |
25-50 |
15-35 |
|
Bag width (mm) |
30-150 |
50-200 |
50-220 |
|
Bag length (mm) |
50-220 |
50-250 |
50-300 |
|
Dimension (L x W x H) mm |
1002×860×1900 |
1002×860×2050 |
|
|
Net Weight (Kgs) |
400 |
500 |
550 |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
