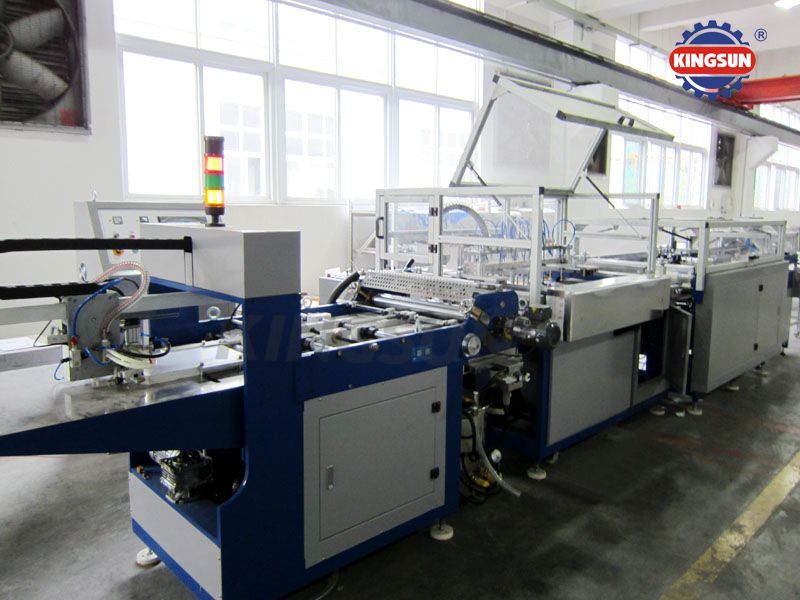

AHC-450A/540A Model Automatic Hard cover making machines (Automatic case makers)
This AHC series automatic hard cover making machines or automatic case makers, is most reliable equipment for hard cover making in China, which adopts an automatic paper feeding system and utilizes an automatic positioning system for the correct placement of cardboard. It is with features of high accurate and fast in producing and beautiful finishing for making hard book covers, notebook covers, desktop or hanging calendars, lever arch file folders etc.
Features of AHC case makers :

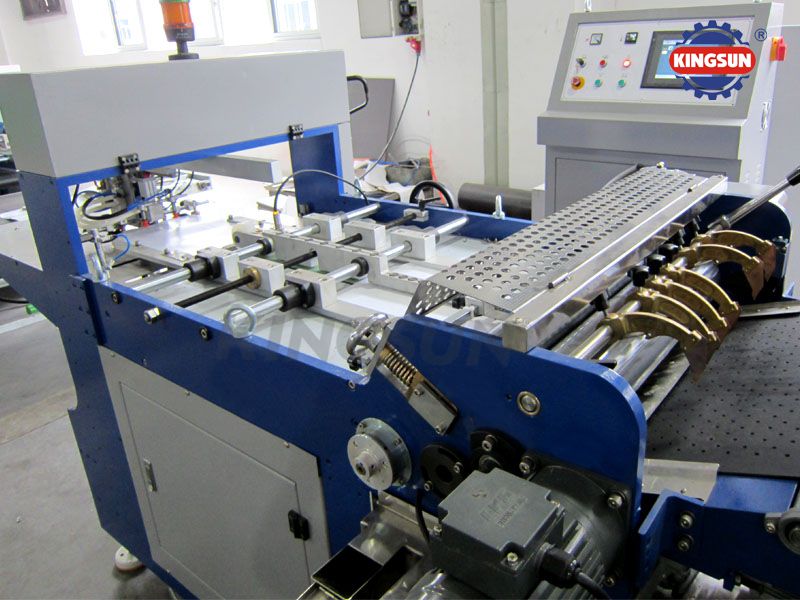

1.The feeder using a back-push feeding system which is controlled pneumatically, this structure is simple for operation and designed reasonably.
2.The width between stacker and feeding table is concentrically adjusted in the center; the operation is very easy and without tolerance.

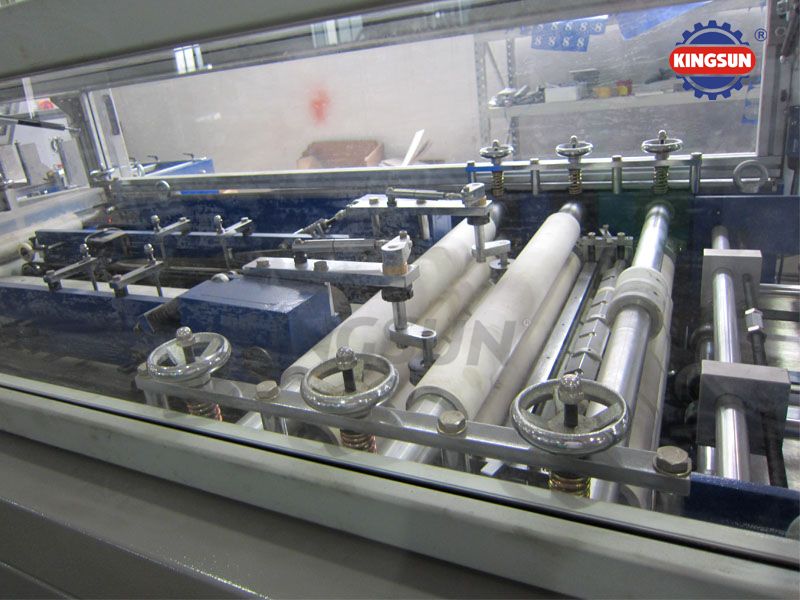

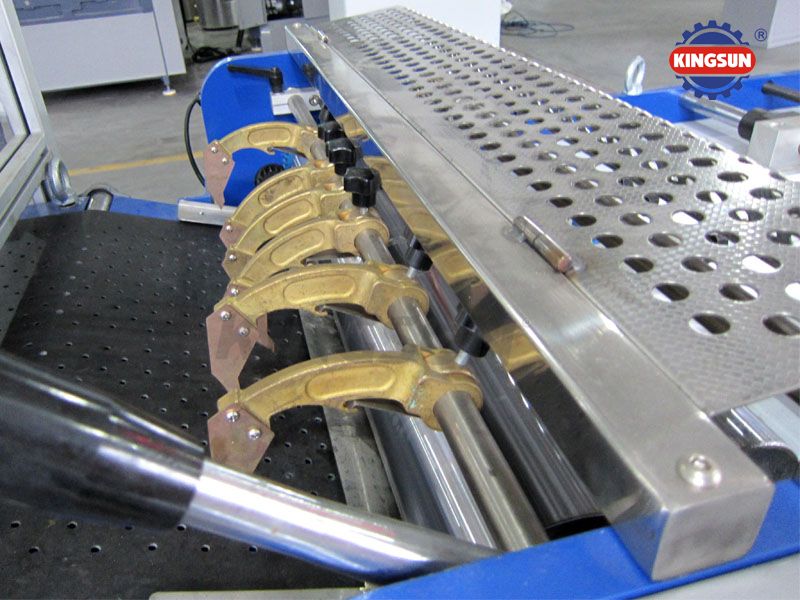

3.A newly designed, durable copper scraper effectively prevents paper winding onto the glue roller.
4.The imported ultrasonic paper detector, easy to operate, it effectively prevents paper jams or two pieces of paper feeding at one time.

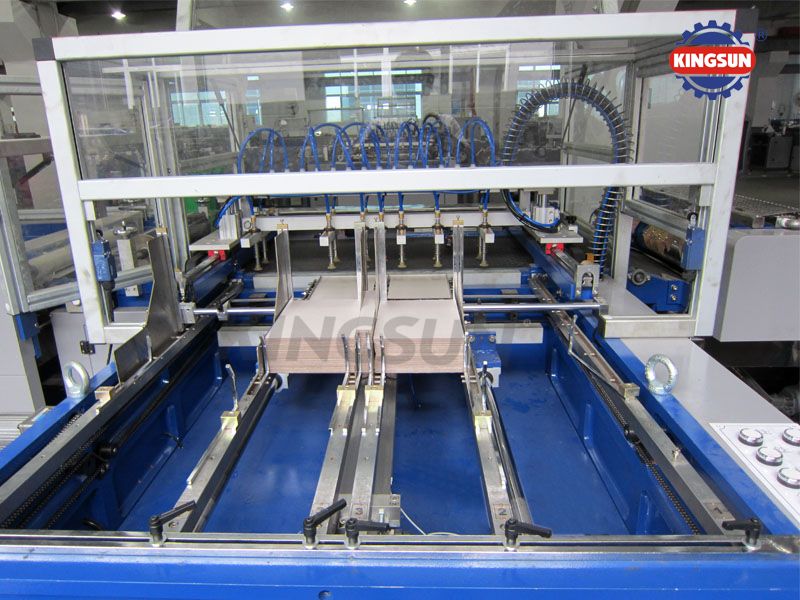

5.The cardboard feeding table is controlled by linear guide line and servo motor, its positioning is precisely and quickly.
6.Auto stop response in case of paper shortage in the cardboard feeding table.

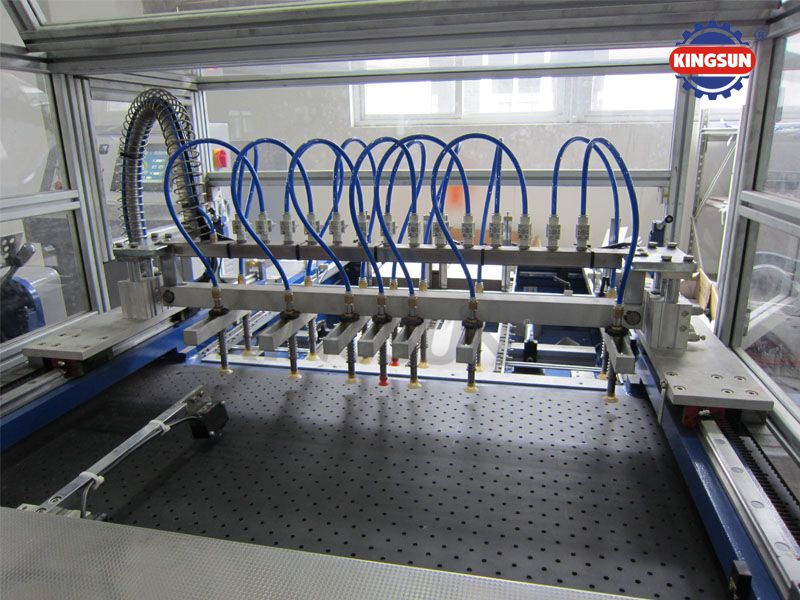

7.Big power air sucker is adopted for conveyor belt to feed the paper more stably and accurately.
8.Paper and cardboard feeding and positioning by use of an imported high precision photo electric control device for accurate positioning of paper and cardboard.
9.Special automatic angle & edge trimming by the four edge folding system to ensure the quality of the finished product.
10.The whole machine adopts PLC control, featuring in simple operation. Errors are displayed directly on the touch screen, which enables the operator easily solve the problem.
11. All main electronic components are use world famous brand. There is multi-language option in the computer, so the operator can choose the language which they are familiar with. Automatic alarming for problem occuring. Easy for operation and simple for maintenance.
Main specifications:
|
Model |
AHC-450A |
AHC-540A |
|
Paper size |
130X230mm(Min) 480X830mm(Max) |
130X230mm(Min) 570X830mm(Max) |
|
Surface paper gsm |
100-200g/m2 |
100-200g/m2 |
|
Cardboard thickness |
1-3mm |
1-3mm |
|
Finished product size |
100X200mm(Min) 450X800mm(Max) |
200X200mm(Min) 540X800mm(Max) |
|
Working speed |
25-28 sheet/min(Max) |
25-28 sheet/min(Max) |
|
Motor power |
5KW/380V or 220V 3 phase |
5KW/380V or 220V 3 phase |
|
Heating power |
6KW |
6KW |
|
Dimensions |
7750X2320X1660(LXWXH) |
7750X2500X1660(LXWXH) |
|
Weight |
3000kg |
3300kg |
Note: The specifications of automatic hard cover making machine will be changed when the machine is improved!
