YZHH Series Pre-fold Automactic Folder Gluers

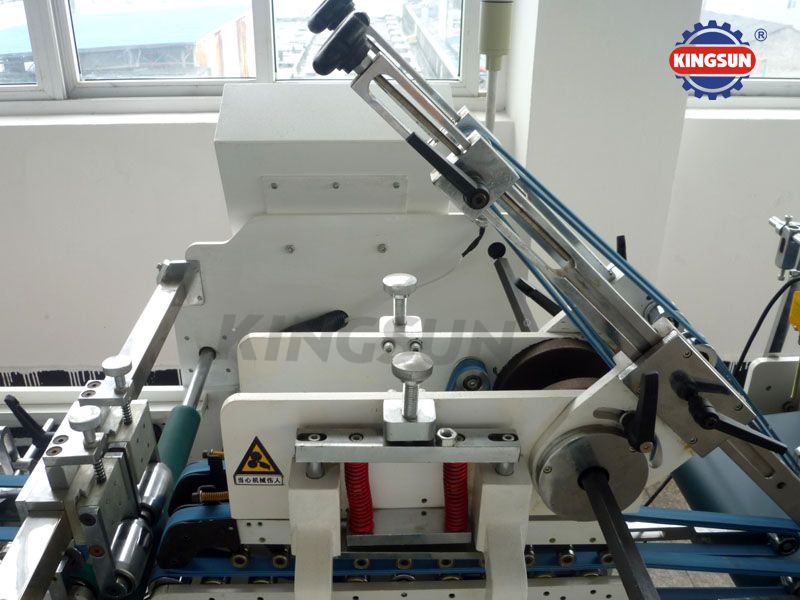

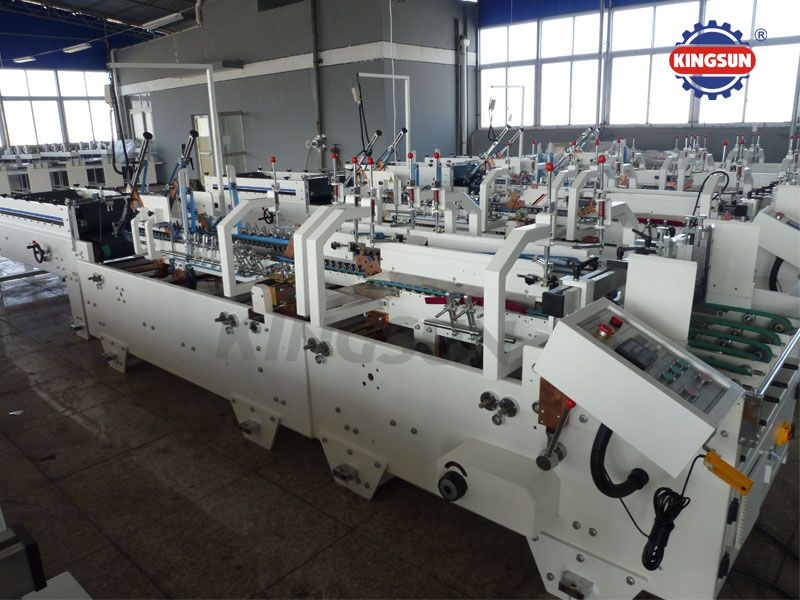

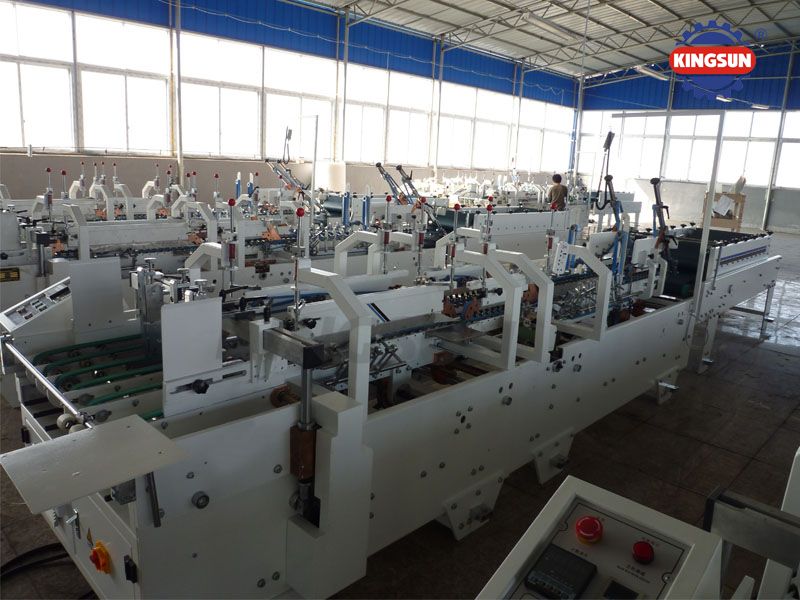

YZHH Pre-fold automatic high speed automatic pasting machine ,In the pre-folding part, the first fold and the third fold can be exchanged by 180 degree and 150 degree. The second fold and the fourth fold can be molded in 180 degree, the special design is also available.

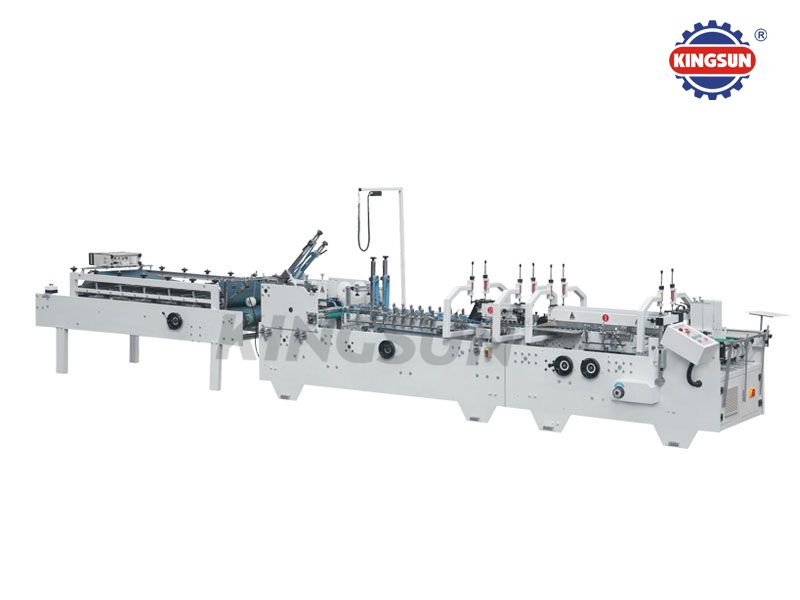

YZHH Series Pre-fold Straight-Line Automactic Folder Gluers

YZHH Pre-fold straight line automatic high speed automatic pasting machine ,In the pre-folding part, the first fold and the third fold can be exchanged by 180 degree and 150 degree. The second fold and the fourth fold can be molded in 180 degree, the special design is also available. Main parts of this machine are adopted import and domestic famous brand products,suchas folding belt is adopted powerjul rubber flat belt imported form Swiss,its service lifeis raised greatly,which is 10-20 times of common belt, Use of imported electrical appliances. Speed, reasonable structure, convenient and flexible operating characteristics .It is suitable for the production of the wine boxes, cosmetic boxes, pharmaceutial boxes, CD boxes, file folders and French fry pockets etc

Characteristics:

1.The partial paper feeding adopt the monomer structure,it is extremely convenient to

movethe assemble and disassemble.

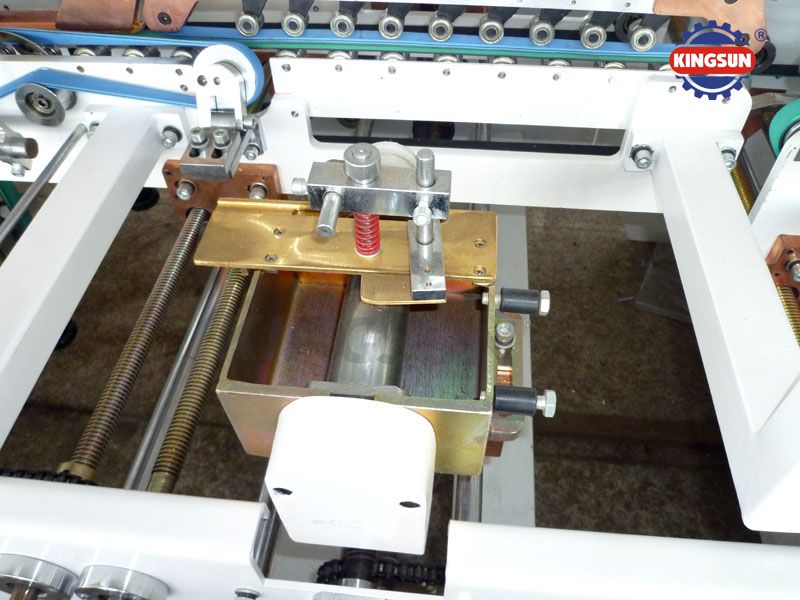

2.Adopt the integral sealde glue box,so as to make glue not easyto evaporate,move conveniently.

3.The move row adopts the two-way screw rod to adjust,fast and simple.

4.The transmission adopts the synchronous belt and mast top,accurate,ensure to paste box perfect quality.

5.Pre-folded function can develop the production efficiency,forma complete set with the automation packing.

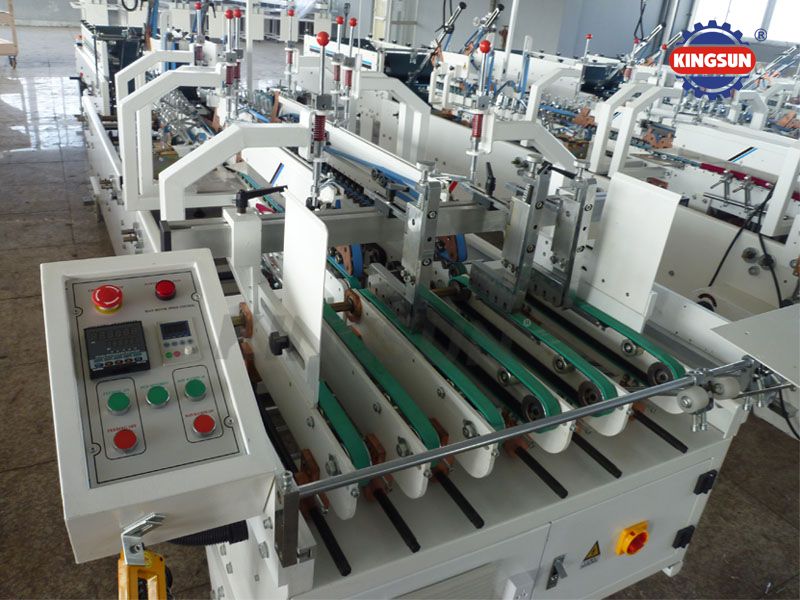

6.The press and delivery part can move front and back,so as to provide the convenience to wine box and long box.

7.The photoelectricity countand automatic kick board are assort ,accurate and convenience.

automatic folder gluer Kingsun yzhh

Major technical index:

Box type

Model

A Max

A Min

B Max

B Min

C Min

D Min

F Min

No crash-lock

YZHH-800

700

70

620

110

8

70

51

YZHH-1200

700

70

840

110

8

70

51


Major technical index:

Linear velocity

0~220m/min

Suitable paper quality

220~800g/m² cardpaper and E wave corrugated paper

Paste box basic form

Both side edge are folded , both sides are Pre-folded, One-side edge pastes.

Feeding way

Automatically and continuously feeding

Adhesive

Solute type

Needed power

AC380V 5 KW

Weight

2100KG

Overall Size

7200×1100(1300)×1300mm

The scope of Count

0~999999
