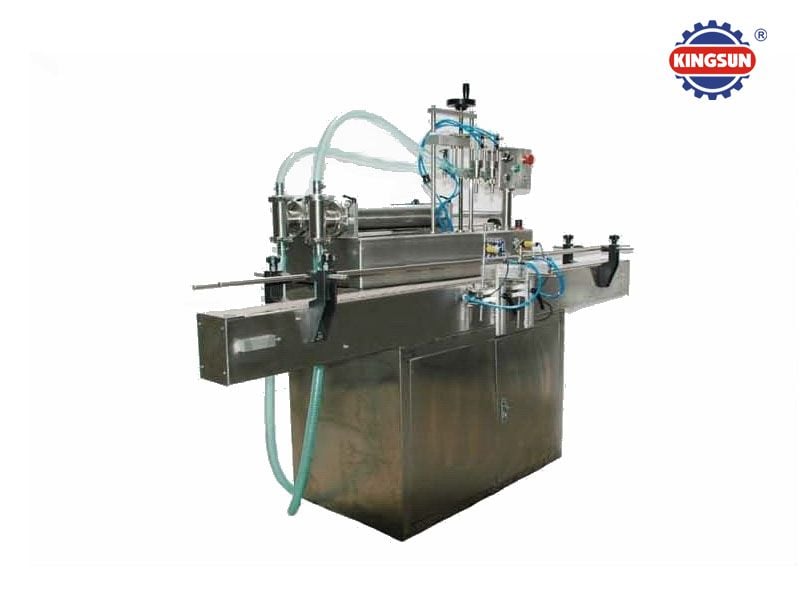

YT-Series Automatic Piston Type Liquid Filling Machines

This series of liquid filling machine is suitable for daily food, oil, medicine and Pesticide industry etc. It can fill different types of liquid products.

YT-Series Automatic Piston Type Liquid Filling Machines

Product Feature:

This series of liquid filling machine is suitable for daily food, oil, medicine and Pesticide industry etc. It can fill different types of liquid products. Use with straight line piston filler filling with high precision, easy in installation, cleaning and maintenance simple, non-drip, and other advantage, whose material contact parts equip with 304 stainless steel (can customize with 316 stainless steel), all stainless steel chassis with a clean, tidy, beautiful appearance of generous and so on.

Technical Specification:

Model

YT6T-6G

YT2T-2G

Filling speed

20-50 Bottle/min

10-30 Bottle/min

Filling accuracy

≤±1%

Power supply

220/50HZ or 110V/60Hz

Air pressure

0.5-0.7MPa

Current

3A

Power

500W

300W

Filing volumes range

5-100ml 10-280ml 20-500ml 100-1000ml,

500~2800ml, 1000~5000ml
