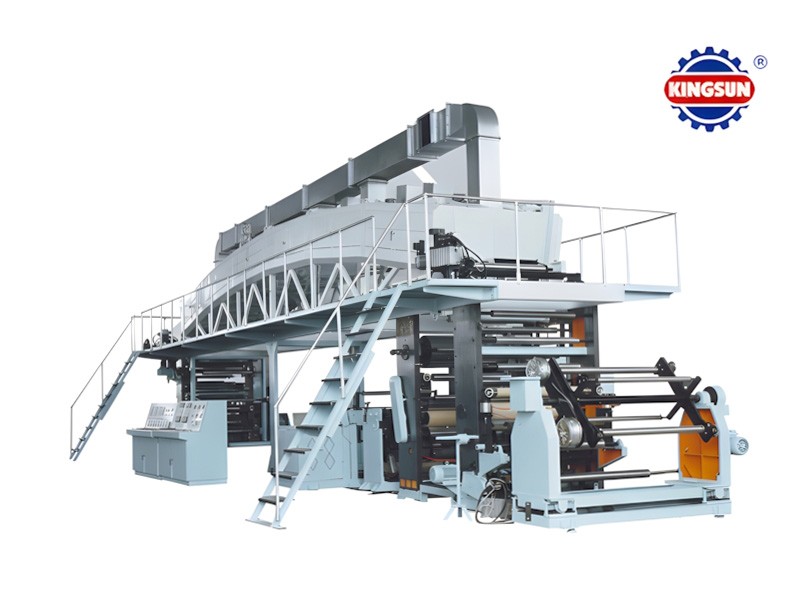

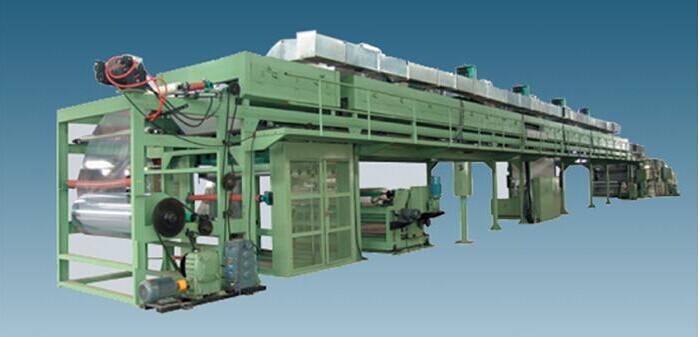

THP series PVC/PE protection film coating machines

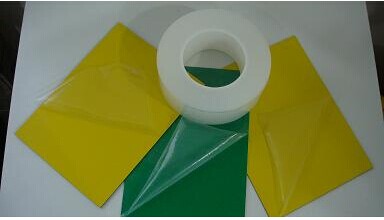

This series coating machine is suitable for coating, printing and laminating process of PE/PVC protective film etc.

THP series PVC/PE protection film coating machines

This series coating machine is suitable for coating, printing and laminating process of PE/PVC protective film etc.
Features:
1. Flat oven configuration, adopt conveying belt to transport the film.
2. Multi-section temperature controls, can precisely control the temperature of each oven according to production process.
3. Automatically film splicing device for rewinder and unwinder, equip with accumulator before rewinder, can splice film and rewind set length without stopping machine; high production efficiency.
4. PLC automatically controls the whole machine, and the whole tension is close-loop automatically controlled.

Main data:

Effective Width (mm)

1100

1300

1600

Dry Oven Length (m)

Depends on the process requirement

Mechanical Speed (m/min)

40~120

Heating Method

Steam/thermal oil/ hot air burner /electric heating

Kingsun machinery experts in tailor-made the multi-functional coating machines,welcome to contact us to discuss the details.
