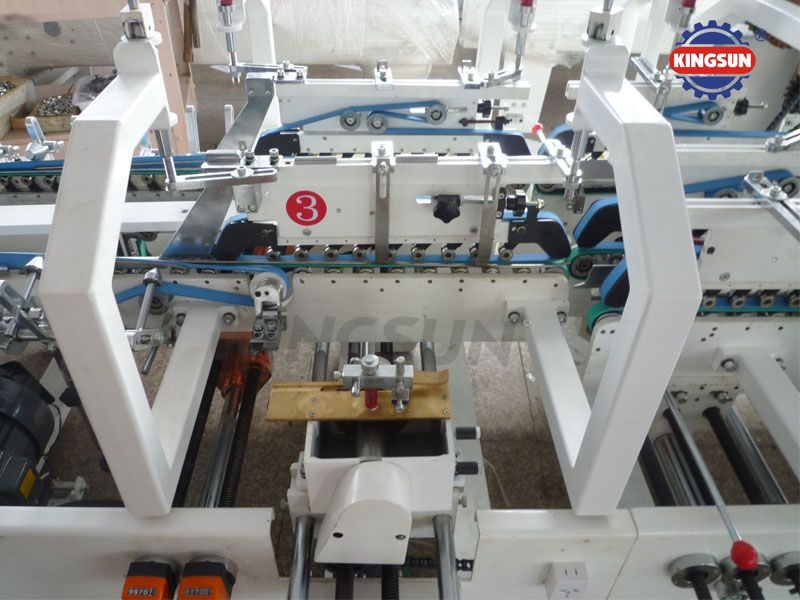

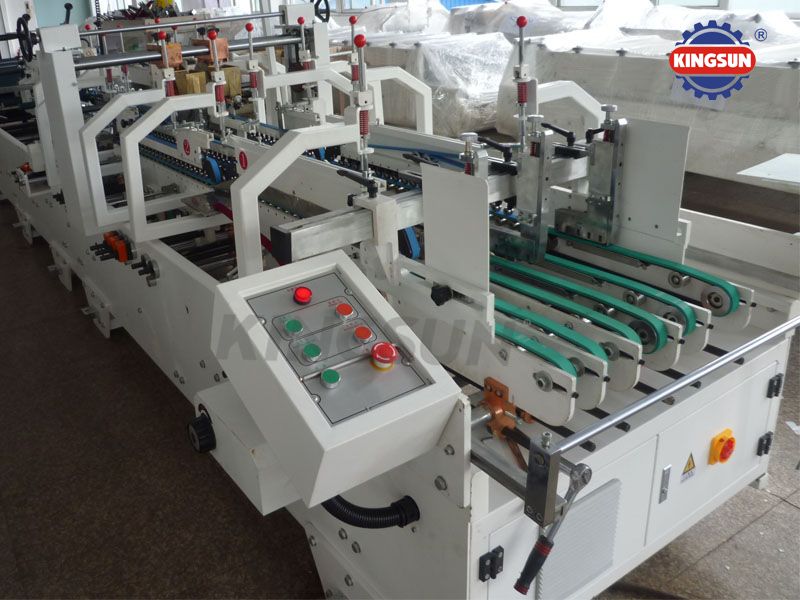

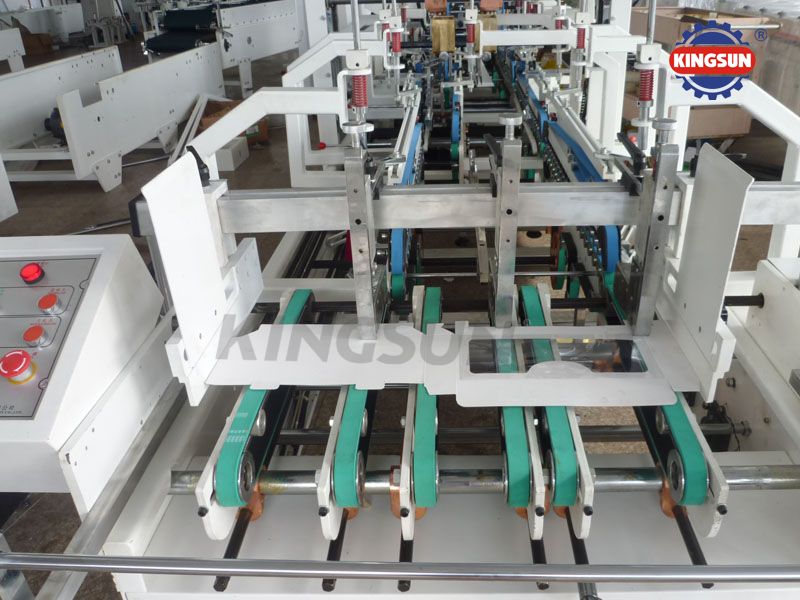

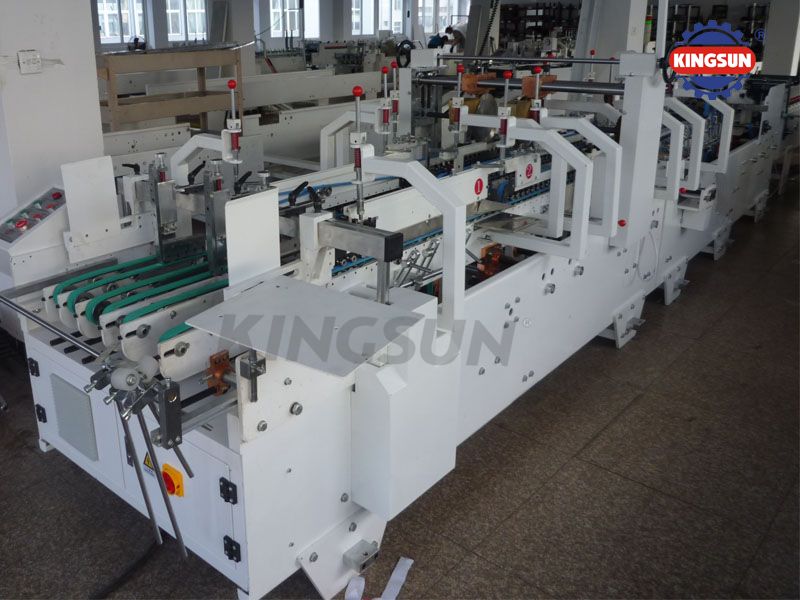

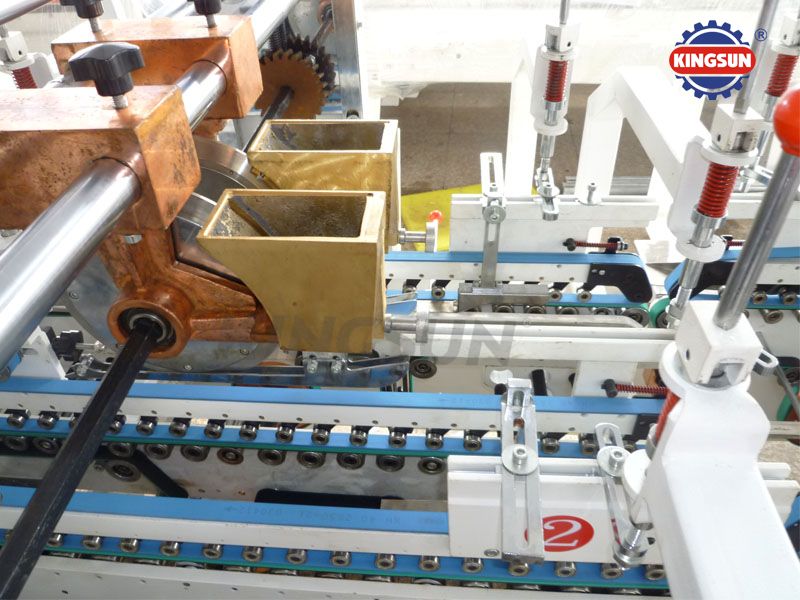

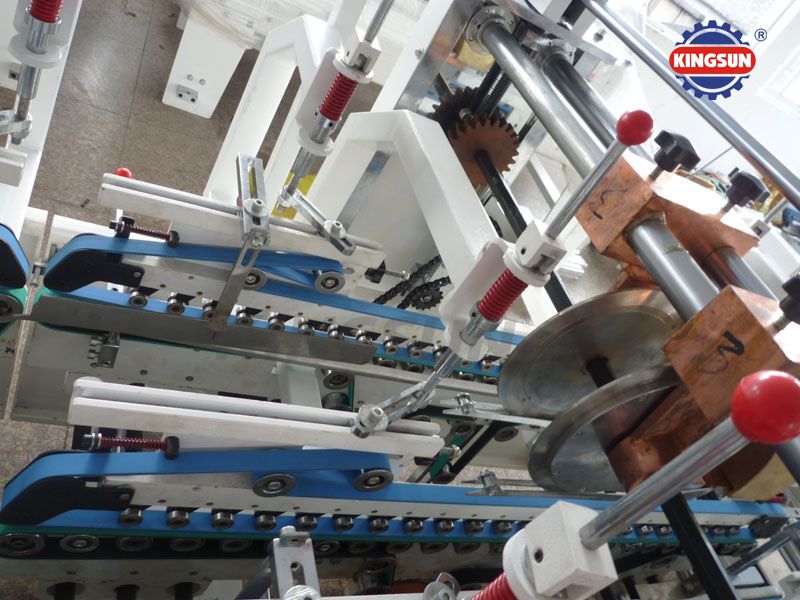

SHH-AG Pre-folding and Crash-lock Automatic Folder Gluers

SHH-AG folder gluer is new kind of economic model equipment that the pre-folding and crash-lock is separate, with the features of high speed, reasonable mechanism structure and convenient for operation, it is also suitable for making pharmaceutical box, cosmetic box, wine box making, etc.

SHH-AG Series Pre-folding and Crash-lock Bottom Automatic Folder Gluers

SHH-AG series folder gluers are new kind of economic model equipment that the pre-folding and crash-lock is separate, with the features of high speed, reasonable mechanism structure and convenient for operation, it is also suitable for making pharmaceutical box, cosmetic box, wine box making, etc.

Main specifications:

  Kingsun Automatic folder gluer sketch


Model

SHH-800AG

SH-1200AG

Paper thickness

220-800g/m2

220-800g/m2

Paper feeding

Automatic

Automatic

Working speed

0-220m/min

0-220m/min

Gluing mode

One side/two side glue

One side/two side glue

Power

7KW/380V

7KW/380V

Dimensions

8900X1100X1300mm

8900X1300X1300mm

Weight

2500kg

2700kg


Box type

Model

A Max

A Min

B Max

B Min

C Min

D Min

F Min

No crash-lock

SHH-800AG

700

110

620

110

8

70

51

SHH-1200AG

700

110

840

110

8

70

51

With crash-lock

SHH-800AG

700

160

520

180

9

90

85

SHH-1200AG

700

160

800

180

9

90

85

As China leading supplier of folding gluing machines, we provides large quantities of folder-gluers worldwide, so our production cost is low, we sell competitive unbelievable price but very good quality equipment, please don't  think that low price means not high quality, if fact it is good folder gluer equipment. Kingsun brand foling gluing machines designed for easy installation and operation, as long as your technicians have experience for any kind of folder gluer,  then it will be very simple for them, because our design is more user friendly and no need complicated training, so it is an ideal carton gluer equipment for paper box manufacturing. This series foding gluers can well fit most of straight line and three points carton box.

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
