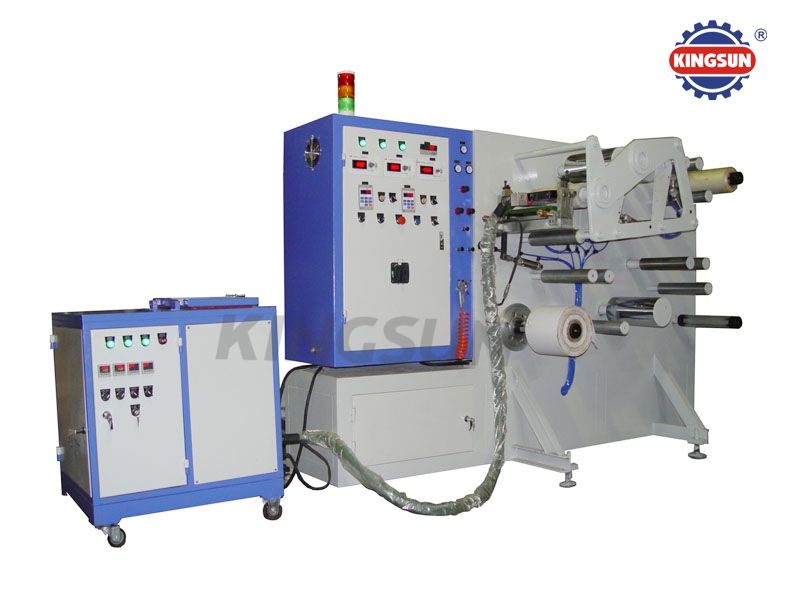

RT Series Hot-melt Coating Machine

The thermal-melting coating technology is a new know-how developed in the past 10 years. With advantage of 100% solid composition, no solvent included, no pollution

RT Series Hot-melt Coating Machine

The thermal-melting coating technology is a new know-how developed in the past 10 years. With advantage of 100% solid composition, no solvent included, no pollution, no need of drying equipment, low consumption of energy, quick production, high efficiency, low cost and less area needed. These kinds of machine have been widely used for packaging, medicine, automobile, apparel, electronic, decoration industries.

According to the requirements of different products, an optimized design used for RT series thermal melting coating machine, therefore, its functions greatly practical and improved. It is suitable for coating Kraft paper, label paper, metal foil, plastic film, natural textiles, chemical fiber fabrics, non-woven cloth, carpet, paper-plate and other various materials.

Main Specification:

Model

400

600

800

1100

1300

1500

Coating width

400mm

600mm

800mm

1100mm

1300mm

1500mm

Coating quantity

15-200g

Machine speed

50m/min

Unwinding diameter

1000mm

Rewinding diameter

700mm

Unwinding device

2 sets

Rewinding device

1 set

Install power

8.5kw

11kw

12kw

15kw

18.3kw

20kw

Power

380V/50Hz

Temperature

230℃
