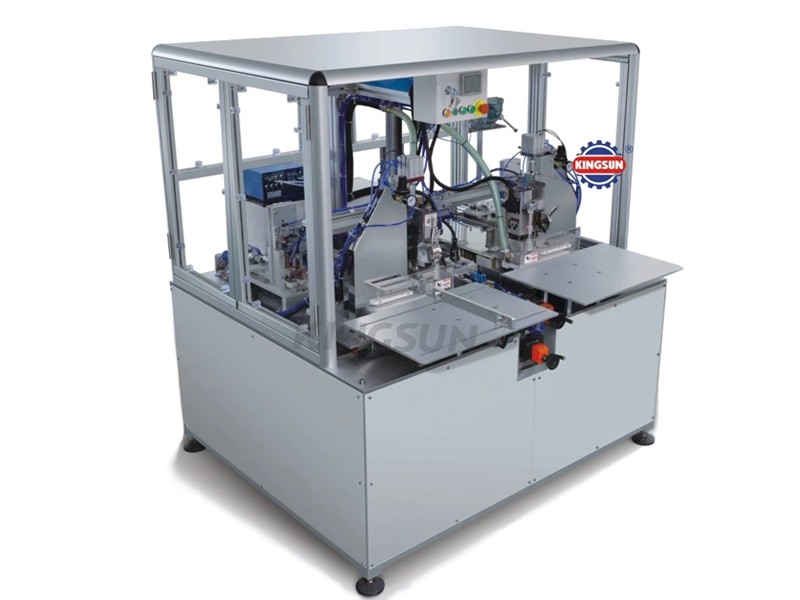

MAG-800 Rigid box magnet pieces assembling machine

MAG-800 Rigid box magnet pieces assembling machine

MAG-800 semi-automatic rigid box magnet pieces assembling machine is introduced the latest technology from Italy PERONI company.

Semi-automatic magnet pieces assembling machine for rigid boxes

MAG-800 semi-automatic rigid box magnet pieces assembling machine is introduced the latest technology from Italy PERONI company. Using particular mechanism to completion of the milling holes, gluing, and magnets installation in the cardboard automatically. Effective substitution the manual installation process in domestic technology .Applicable to book-case, folders, hardcover, gift boxes, calendar and other products for any need magnet pieces assembling.

Machine features:

1. Adjust size according to the size of board and hole in one time.

2. Machine will start to work when the board on sensor.

3. At first, fix the board, then milling hole as the thickness of magnet and dust absorption at the same time.

4. Automatic location and spray glue

5. Magnet whole stack and send one piece each time, the PLC will notice when magnet use up.

6. Send the magnet to correct position automatically.

7. Multifunctional combined electromagnetic valve can complete whole action quickly.

8. Electronic precision measuring spray glue each time, clean and without extra glue.

9. Best Melting and pumping glue system in the world.

Main specifications:

Board thickness

1.5-4mm

Magnet Diameter

5-10mm

Magnet thickness

1-2mm

Board width

250-800mm

Magnet spacing

240-680mm

Production speed

10times/min

Power

2Kw, 380V

pneumatic consumption

160NL/min (6bar)

overall dimensions

1560 x 1300 x 1700mm

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
