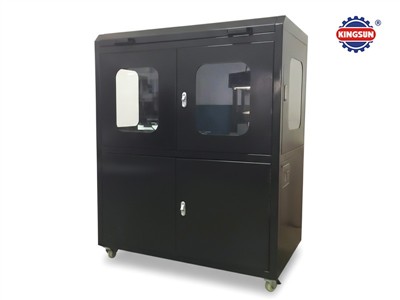

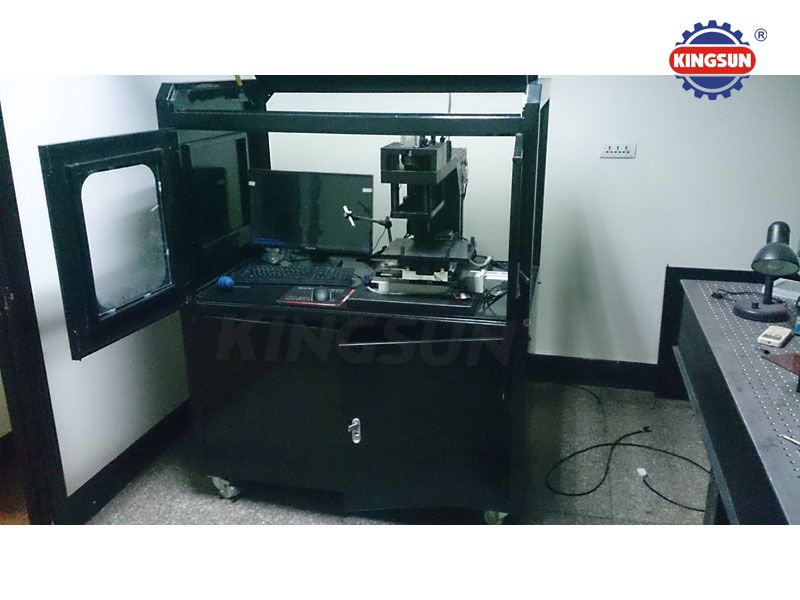

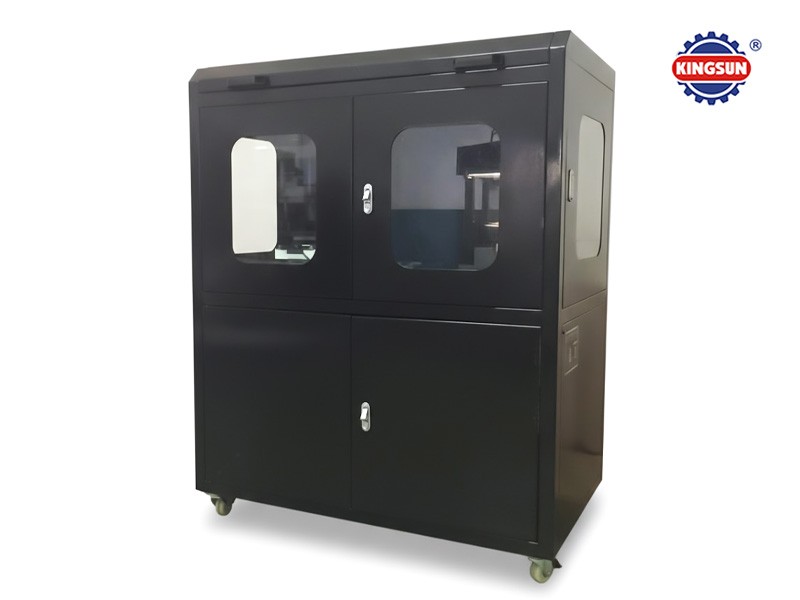

Laser Holographic Dot-Matrix Machine
Features:
1.Digital laser holographic lithography plate-making system is an intelligent design and production system, with dynamic image processing and control system.
2.With digital laser holographic lithography plate-making system, any letter and image can be designed in dynamic lattice image, which shaped into round, square, diamond, multi-part or curve and to be made as the original master; the laser image is dynamic in any viewing angle under any light.
Main specifications:
|
Lithography area |
X152 x Y152mm |
|
Laser generator |
Imported semi-conductor laser generator (optional) |
|
Pixel point shape |
Square, round, other |
|
Image color separation |
RGB, true color, Matte white, etc |
|
Operation mode |
PC interface |
|
Lithography resolution |
158-1270 dp adjustable |
|
Min. angle of resolution |
0.25 degree |
|
Angle range |
0-360 degree |
|
Positioning precision |
0.001 mm |
|
Working speed |
25-100 points/sec |
|
Working mode |
As per X or Y, or the shortest path(optimum) |
|
Working control software |
ODS-C1.0 |
|
Treatment software |
Bodalaser-dos2.0 |
|
Control image |
8-digital grayscale image, BMP or TIF |
|
Control system |
Step or servo control system (optional) |
|
Working ambience |
Temp: 20±3, Humidity: 30﹪-50﹪ |
|
Power |
220±10﹪, 500W |
|
Dimensions |
700 x 600 x 580mm |
|
Weight |
300kg |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
