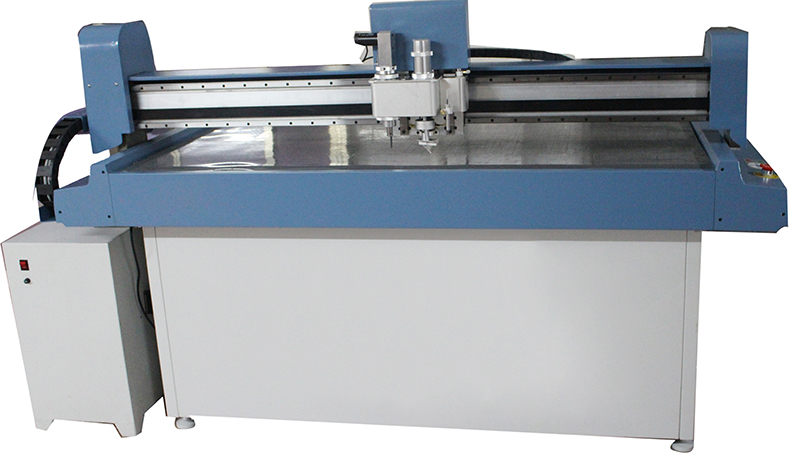

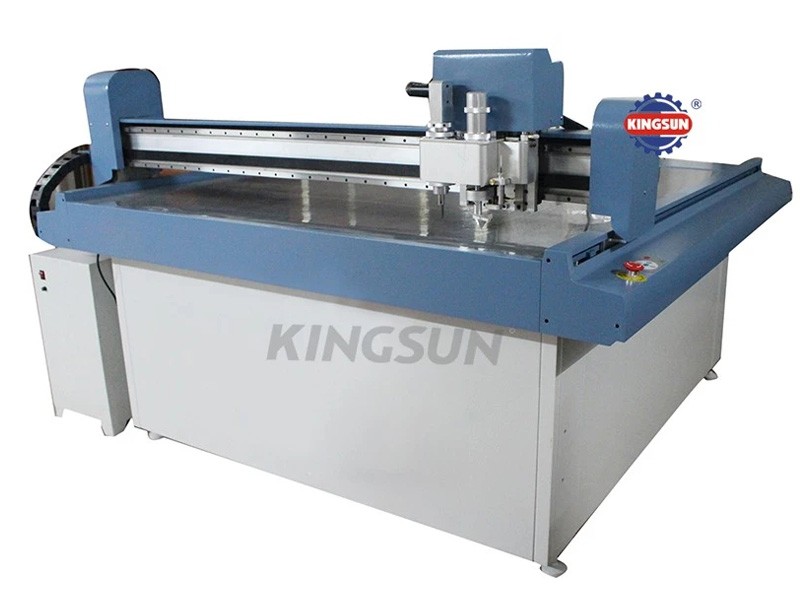

KZX Series flatbed paper box cutting plotter sample maker

This digital cutting plotter is new design model with superior speed and accuracy. Supported by computer and servo motor, it wins the market by its best cost-performance. This series smaple box cutting plotter has three tool-holders on the head and is universal for inserts of cutting knives,

kingsungroup
E-mail Us
PDF Download
Video Link

KZX Series new design digital flatbed paper box cutting plotter & sample maker

This digital cutting plotter is new design model with superior speed and accuracy. Supported by computer and servo motor, it wins the market by its best cost-performance. This series smaple box cutting plotter has three tool-holders on the head and is universal for inserts of cutting knives, vibration cutting & creasing tools & plotting pens. So can maximize the application range. It is fit for many materials such as cardboard, corrugated board, paper solid board,PVC board,foam board ,it helps you save time while reducing the cost. The maximum cutting depth is up to 30 mm, depending on material's features. Especially it can cut 45 degrees for solid paperboard, so it is an excellent digital cutter for rigid box making.
This machine is very developed and gained CE certificate, also working in real busy folding box producers, and functions very reliable for one more year. So it is an ideal digital cutting equipment for short run orders of packaging boxes or displays.

Main specifications:

Model

KZX-1209

KZX-1310

KZX-1713

KZX-2516

Cutting area

1200 x 900

1310 x 1000

1700 x 1300

2500 x 1600

   Cutting materials

Cardboard, corrugated, PVC, grey board, foam board, plastic board, honeycomb board

Max cutting thickness

30mm

Position precision

≦0.1mm

Fasten type

Vacuum suck

Cutting precision

≦0.1mm

Min cutting diameter

3mm

Knife tool

Pen, drag knife, vibration blade, crease wheel

Command system

HPGL

Travel speed

40-1350MM/S

Electric power

220V ±10%50HZ/380V ±10%50HZ

Driven type

Linear guide rail and servo motor

                                   Note: this machine can tailor made cutting area

Please write more details of your specific requirement, so our sales team can provide you right machine you need.

Submit
Related products

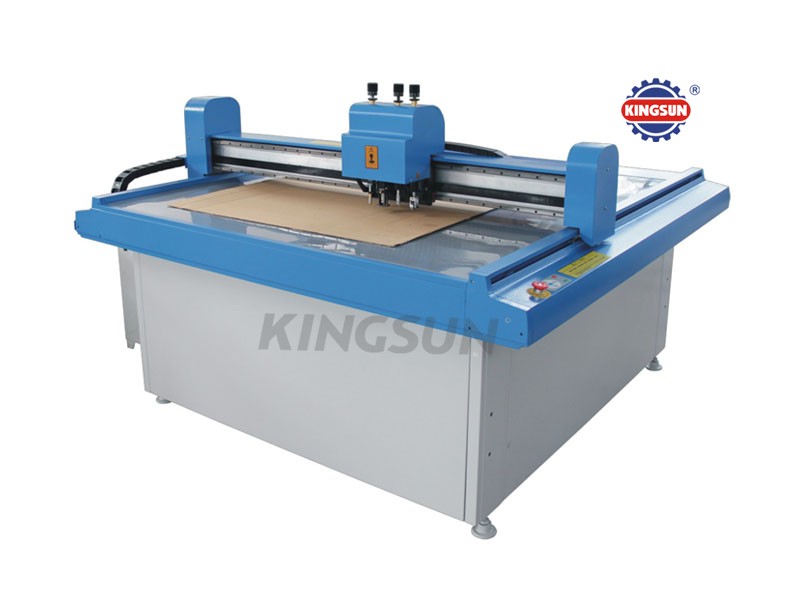

ZXF series Carton Sample Box Cutting Plotter
