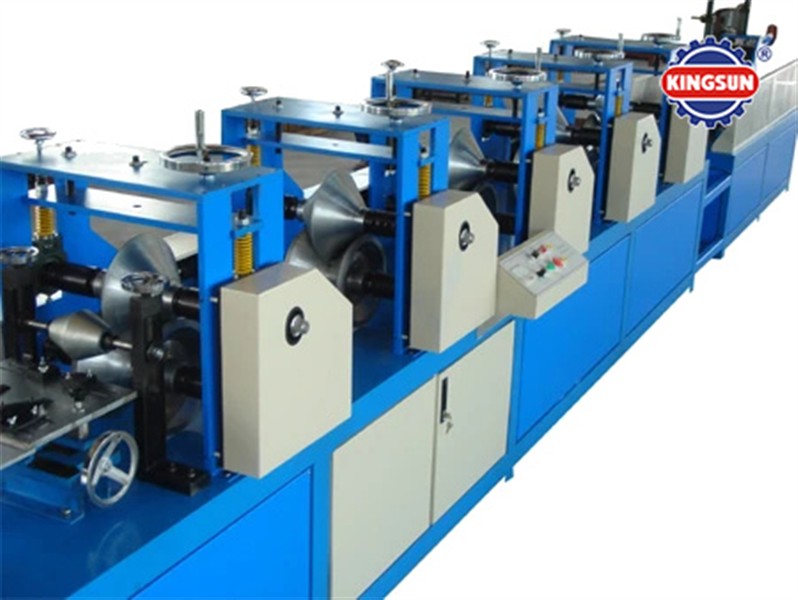

KZJ-120C model paper edge protector production line

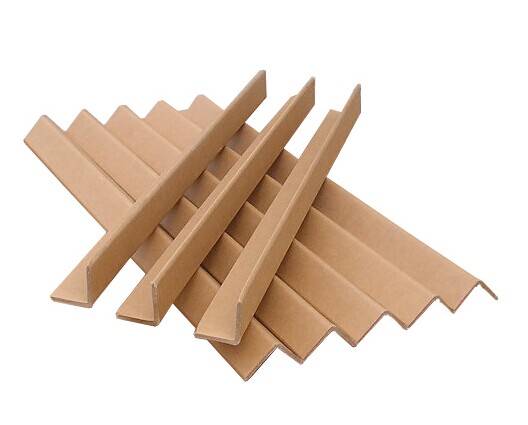

This series paper edge protector production line mainly for making paper edge protector.The finished edge protecotr can use for protecting the goods packing during transportation.

This series paper edge protector production line mainly for making paper edge protector.The finished edge protecotr can use for protecting the goods packing during transportation.

Machine Features:
1.Coaxial transmission. All transmission parts with strictly heat treatment for smooth working.
2.Double hydraulic cutting system for transmission. All transmission gears use high quality material after heat treatment so keep long lasting.
3.Touch screen and servo control system control the operation, cutting precision is ±1mm.
4.Automatic alarm system show the fault position, guarantee safe operation.
5.With output counting for every shift and total production volume, no need for manual counting.
6.Convenient for change mould.
7.Automatic glue feeding with quantity setting control.

Technical specification :

1. Edge Protector size:25mm-120mm
2. Production speed: 0-25m/min, Economic speed:20m/min
3. Cut off precision:±1mm
4. Max.quantity of layer: 13 layer
5. Applicable paper:surface paper:200-250gsm(kraft) and inner paper:420-520gsm
6. Power supply: 9kw
7. Dimension: 15500(length)×980(width)×1600(heigh)
8. Total weight:5,000 kg

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
