KS-150B/330B/450B/600B Automatic Lollipop Depositing Line

The KSB series lollipop depositing line is an advanced equipment to produce lollipop.

KS-150B/330B/450B/600B Automatic Lollipop Depositing Line

Introduction:

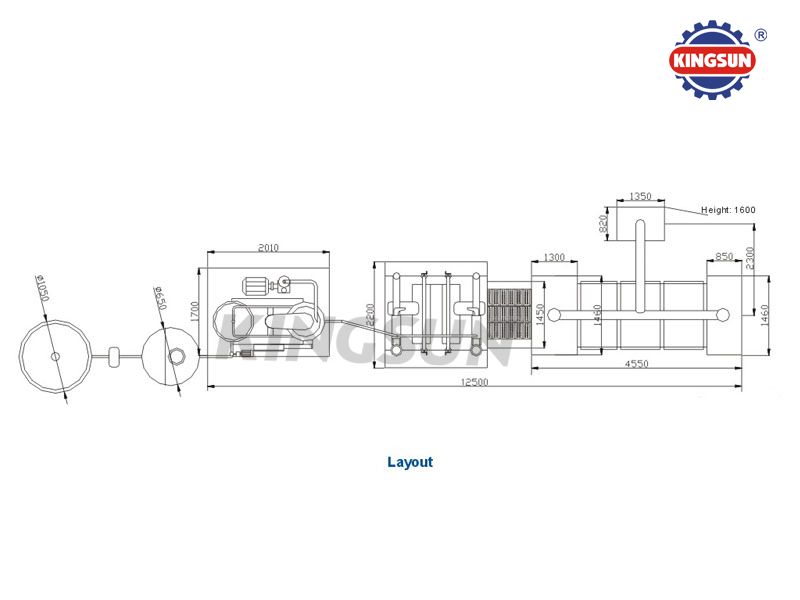

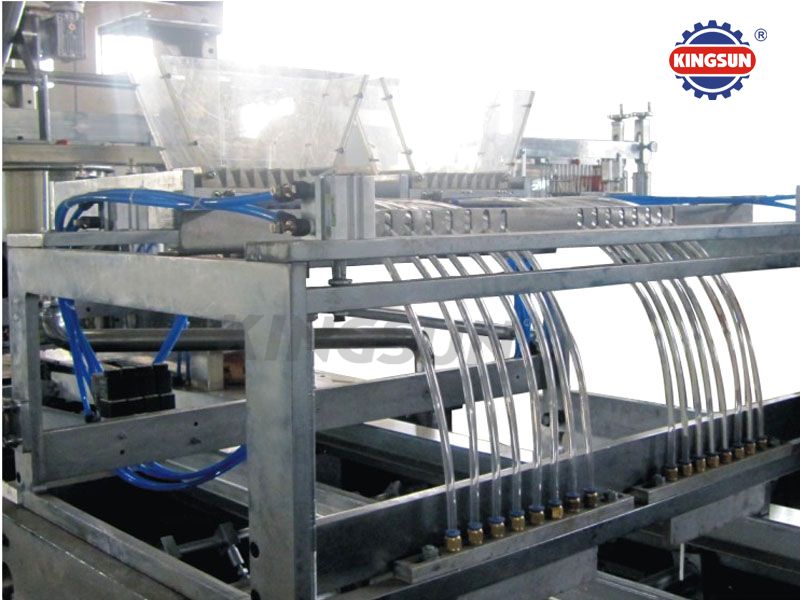

The KSB series lollipop depositing line is an advanced equipment to produce lollipop. The operation is controlled by a PLC/ program for the vacuum cooking, feeding, and depositing. It can be in-line injection, dosing and pre-mixing for the proportional addition of liquid colors, flavors, and acids. The line is composed of cookers, storage tank, micro-film cooker, depositing, moulds and industrial cooling tunnel. It can produce two color striped, two color layers, one color and central-filled lollipop. The line is a full-automatic plant equipped with an automatic stick insertion system.

The whole line is produced according to the GMP standard of food machinery; it is not only an ideal equipment which can

produce out good quality products with the saving of both the manpower and the space occupied, but also help the candy manufacturer pass the GMP, HACCP, QS authentication easily.

Moreover, just change the moulds ,it is available to produce both hard candy and lollipop on the same depositing line.

Technical specification:

Model

KS-150B

KS-300B

KS-450B

KS-600B

Output

150kg/h

300kg/h

450kg/h

600kg/h

Max Candy Weight

Max.26g

Max.26g

Max.26g

Max.26g

Diameter

Flat:18-28mm  Ball: max.25mm

Specification Of

The Stick

60-100mm

60-100mm

60-100mm

60-100mm

Depositing Speed

25-30n/min

25-30n/min

25-30n/min

25-30n/min

Steam Requirement

250kg/h,

0.5-0.8MPa

300kg/h,

0.5-0.8MPa

400kg/h,

0.5-0.8MPa

500kg/h,

0.5-0.8MPa

Compressed

Air Requirement

0.2m³/min,

0.4-0.6MPa

0.2m³/min,

0.4-0.6MPa

0.25m³/min,

0.4-0.6MPa

0.25m³/min,

0.4-0.6MPa

Working Condition

Temp20-25℃

Humidity55%

Temp20-25℃

Humidity55%

Temp20-25℃

Humidity55%

Temp20-25℃

Humidity55%

Electric

Power Needed

27kw/380V

28kw/380V

41kw/380V

64kw/380V

Total Length

17m

17m

18m

18m

Gross Weight

3500kg

4000kg

4500kg

5000kg
