KQS420 Three Knife Trimmers

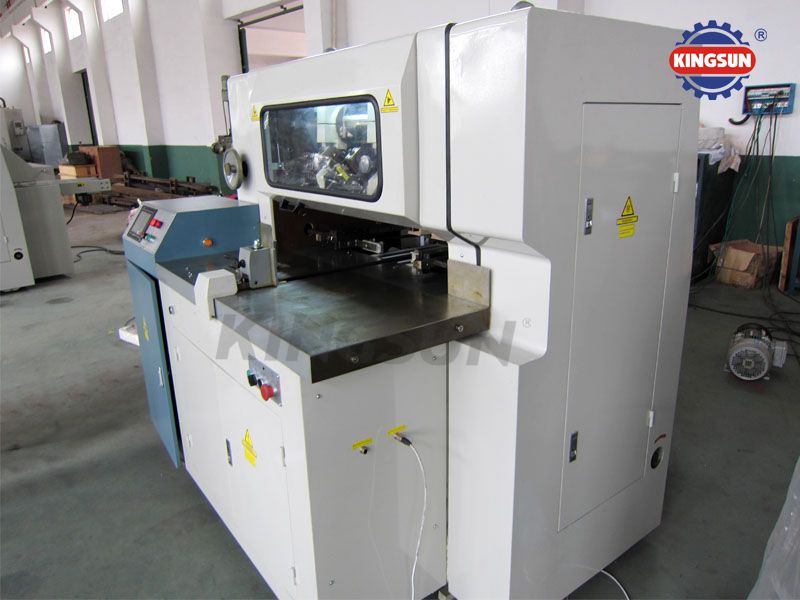

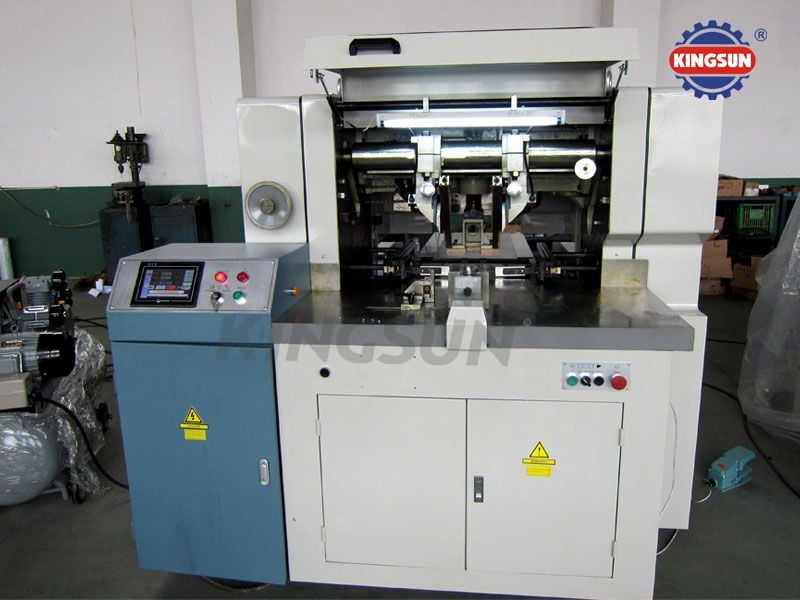

1. This three knife trimmer is primarily composed of a machine frame, a transmission system, a book presser, a cam, a side cutting system, a front cutting system, a book carrier, a vertical and horizontal book arranging device, a book-delivery system and an electric control system, etc.
2. The main transmission is designed in roller bearing structure and adopts splash lubrication, so it features well leak tightness.

KQS420 Three Knife Trimmers

1. This three knife trimmer is primarily composed of a machine frame, a transmission system, a book presser, a cam, a side cutting system, a front cutting system, a book carrier, a vertical and horizontal book arranging device, a book-delivery system and an electric control system, etc.

2. The main transmission is designed in roller bearing structure and adopts splash lubrication, so it features well leak tightness.

3. Our three knife trimmer adopts manipulators for book arranging, which enables books in good order all the time.

4. People only need to put books in the book carrier, and then our three knife trimmer can automatically finish the following steps.

5. Our three knife trimming machine is designed with fully enclosed structure which helps prevent paper scrapes from entering into the machine.

6. This post press equipment is equipped with a foot switch for controlling electro magnetic clutch. This provides our trimmers with more convenience and higher safety standard.

7. An oil feeder is equipped in our three knife trimmer, to lubricate machine wearing parts periodically and rationally, except few guide ways.

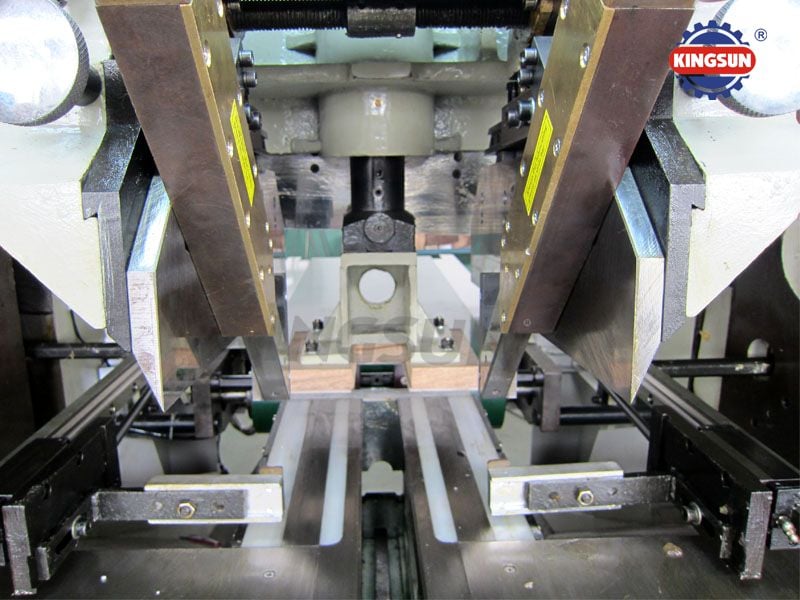

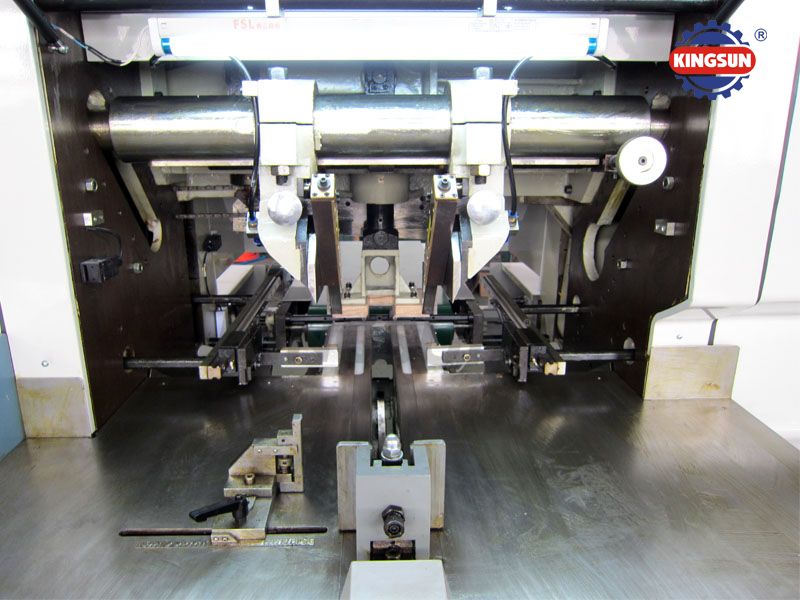

8. The front cutting system of our three cutter knife is designed with fast positioning cutter apparatus, thus reducing cutter replacement time.

9. Our three knife trimmer is designed with a cutter-leaning device, which avoids paper tearing and guarantees high quality books.

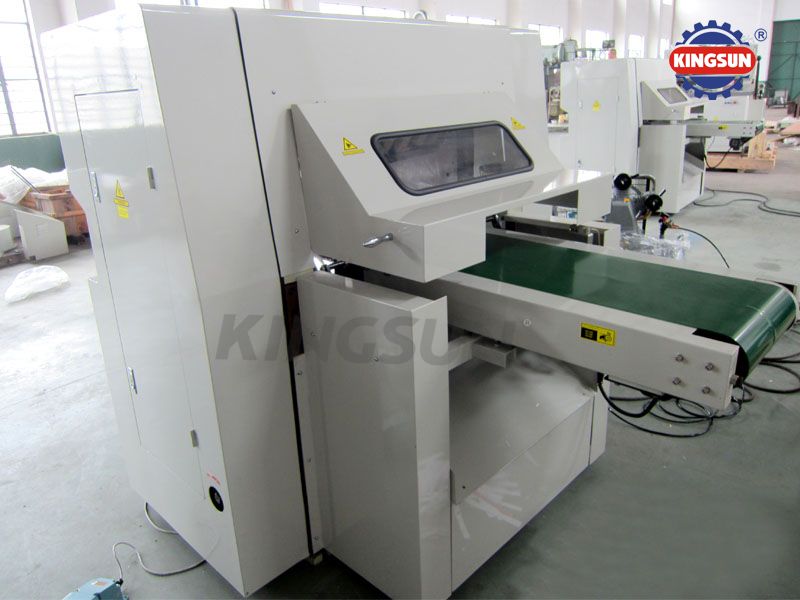

10. The main motor is controlled by an imported variable frequency converter, and there is a counting device for the book-delivery system. Additionally, motor speed and delivered book numbers are both displayed on the screen.

11. The technical function of our three knife trimmers have reached advanced international standard.

Main specifications:

Trimmer model

KQS420

Max. cutting size

420×300mm

Min. cutting size

80×80mm

Max. cutting height

100mm

Cutting speed

28 time/min

Motor power

4KW

Outer dimensions

2415×2050×1676mm

Machine weight

3000kg
