KLJ-1200 Roll to Roll UV Optical Film Imprinting Machine

Applied to emboss the diffusion film, brightness enhancement film, reflective film, the light guide film, can be used for IMD/ IML, TFT- LCD TV, computers, mobile phones and other touch screen backlight module to let backlight glow.

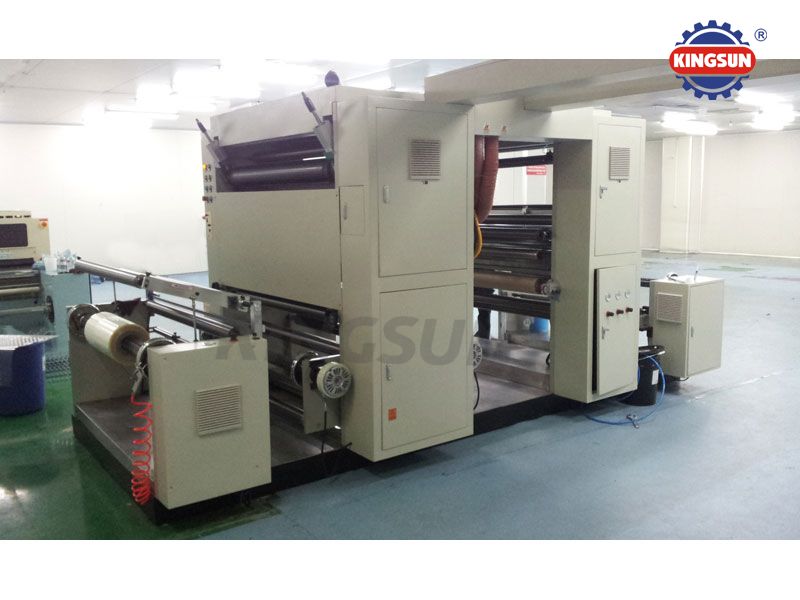

KLJ-1200 Model Roll to Roll UV Optical Film Imprinting Machine

Features:

1.Applied to emboss the diffusion film, brightness enhancement film, reflective film, the light guide film, can be used for IMD/ IML, TFT- LCD TV, computers, mobile phones and other touch screen backlight module to let backlight glow.

2.With UV Nano-leveling transmission device, using light pre-cured and cold pressing technology transfer micro-prismatic constructions, with light polymerize strong curable systems, positive and negative wire bonding the protective film performance, embossing thickness of 20- 50u.

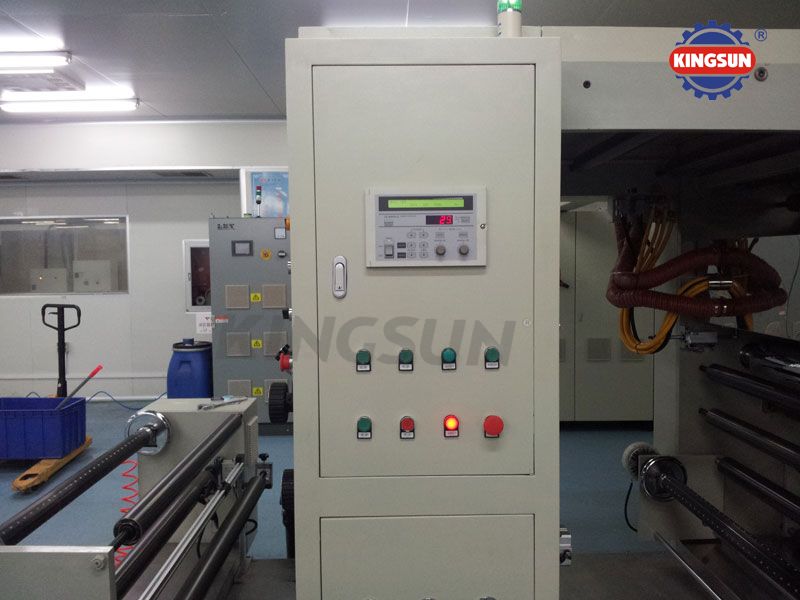

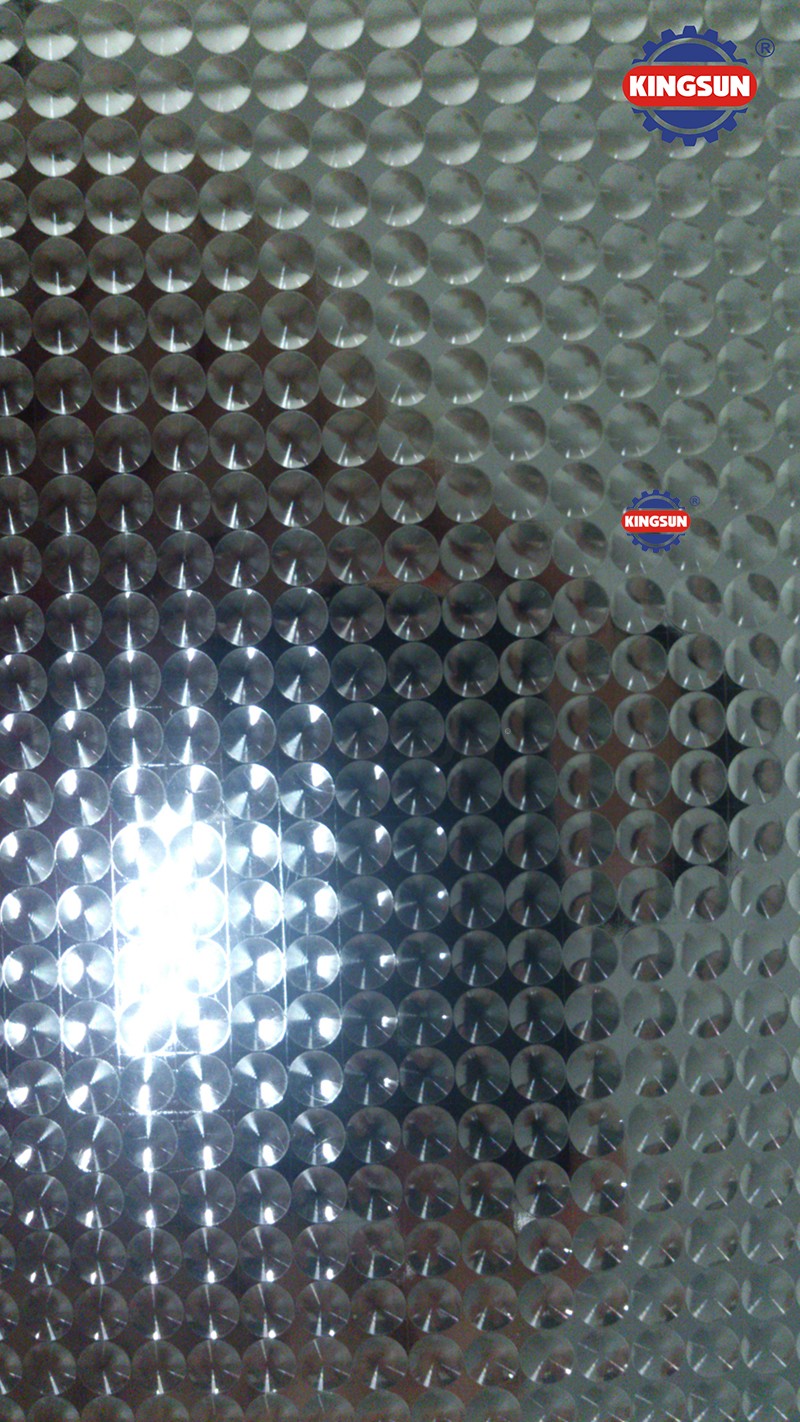

3.With PLC automatic control, TDM extra accuracy wheel, the most compete UV coating line, non-contact drying tunnel design to improve the flatness of the film surface; the Nitrogen filling UV curing technology makes a perfect combination between the coating and the raw material and a high embossing quality, its accuracy is up to the Nano-scaled; the protective film to fit with various micro-edge structures can be done by one machine, the machine can reduce manpower, and save cost; able to emboss hard coating, ITO scratch-resistant protective film, solar Fresnel lens film, LED lighting reflective film, and with special plate to emboss PET or OPP local positioning Fresnel lens (Multi-lens) anti- counterfeiting film.

4.This machine with balance between the structure system and the technical performance; multipurpose and performance- to- price ratio is higher than the similar models in USA, Japan, Korea.

Main specifications:

Model

KLJ-1200

Embossing width

600-1200mm

Max. roll diameter

600-800mm

Material thickness

20-500um

Max. speed

5-100m/min

Plate roller diameter

240-300mm

Motor power

20KW

Voltage

380V

Air pressure Mpa

0.4KG/CM2

Coating mode

Smooth roll, anilox roller

Overall dimensions

5000 x 2330 x 2380mm
