KJT-2D two heads paper tube winders

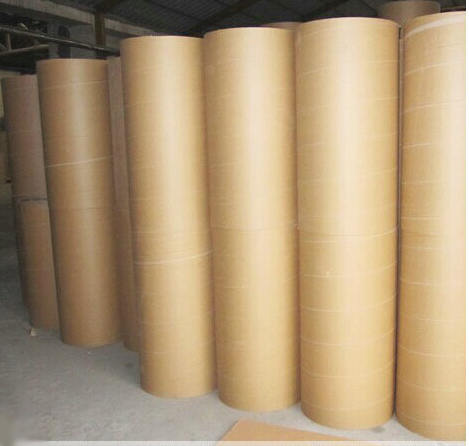

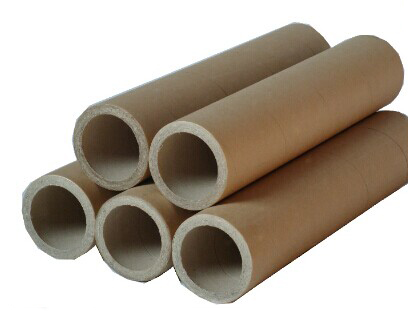

Paper tube inside diameter reaches from 76mm to 500mm , the thickness can be up to 30mm (Need auxiliary body).

KJT-2D two heads paper tube winders

Features:

1.Paper tube inside diameter reaches from 76mm to 500mm , the thickness can be up to 30mm (Need auxiliary body).

2.Adopt spiral bevel gear, changeable angle, working more stable.

3.Assemble the newest wax-lubrication system, firm the friction between tubes and mandrel, easily control tubes' spiral seam, improve the paper tube's quality.
4.The diameter of drum reaches to 350mm , enlarge the distance and strengthen the tensile. Improve the hardness, the strength and the pressure-proof of the ribbons.

5.Long beam design for using long belt, improve smoothness .

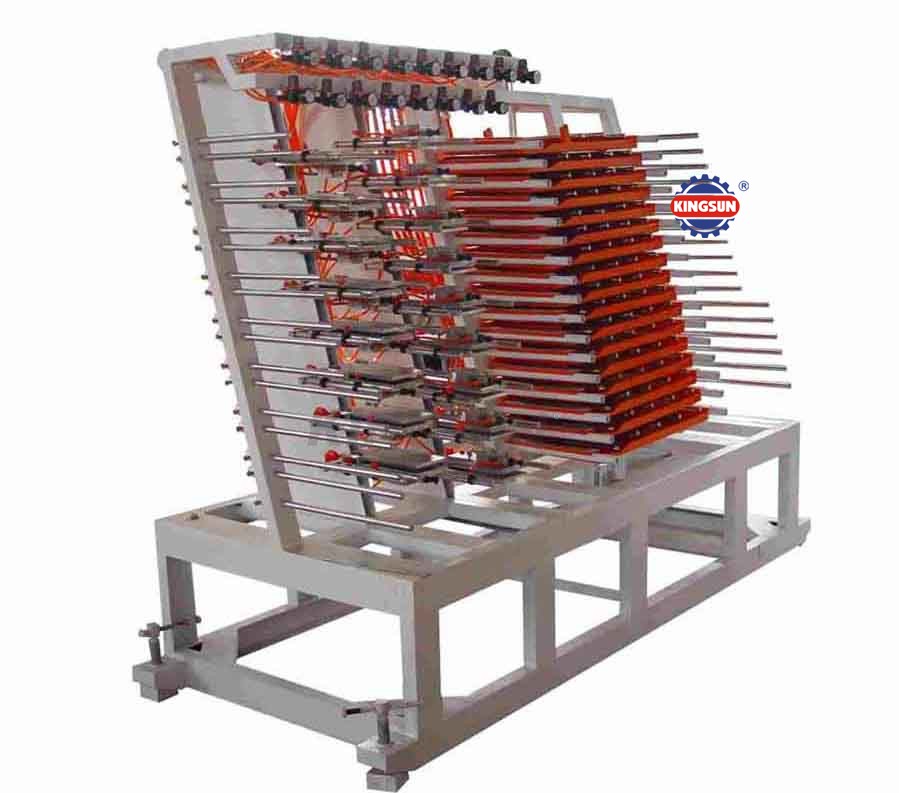

6.Multi-plies paper rack unwinding system.

7.High-speed and low-resistance cutting system.

8.Electric control system designed and installed in line with international standard.

Main Specifications:
Applicable thickness: 2-15mm (If up to 30mm thickness need auxiliary device)Length of tubes: 1-4mm

Speed: 15m /min

Power of main machinery: 22KW

Size of main machinery: 5000 x 2600 x 2100 (mm)

Note: There are various option for paper tube winder, controling, in line cutting system,paper rack etc.

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
