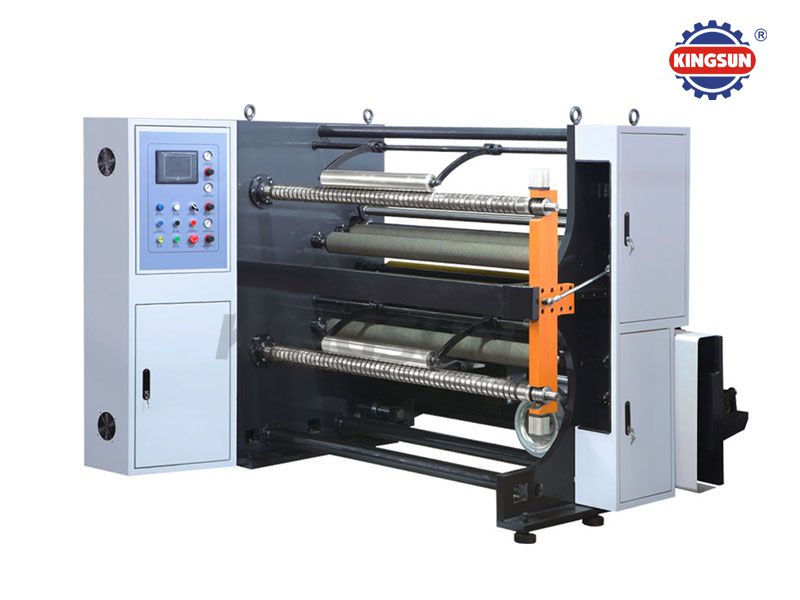

KHQR-A series high speed plastic film slitting rewinding machines

  • KHQR-A series high speed plastic film slitting rewinding machines
  • KHQR-A series high speed plastic film slitting rewinding machines
  • KHQR-A series high speed plastic film slitting rewinding machines
  • KHQR-A series high speed plastic film slitting rewinding machines
KHQR-A series high speed plastic film slitting rewinding machines

KHQR-A series slitting and rewinding machines are economical model but high speed machines for slitting rewinding double adhesive label paper, laminated film, laminated Al foil, or normal plastic film etc. We welcome the special sizes or materials, for different materials and requirement, the specifications of slitting machine will be some changes.


KHQR-A series high speed plastic film slitting and rewinding machines

Introduction:

KHQR-A series slitting and rewinding machines are economical model but high speed machines for slitting rewinding double adhesive label paper, laminated film, laminated Al foil, or normal plastic film etc. We welcome the special sizes or materials,  for different materials and requirement, the specifications of slitting machine will be some changes.

1) All electric system with PLC central control, HMI setting technical parameters, with English page.

2) Rewinding and unwinding use magnetic clutch and brake, PLC automatic tension control.

3) Unwinding with air shaft loading, with air cylinder for materials lifting.

4) With straight knife and circle knife cutting device, rewinding edge side flat and smooth, the edge side has blower to treat the waste.

5) With EPC web guide so can rewinding more accurate.

6) Meter counter for length measuring.

Technical specifications:

Slitting material

Film 12-180um, PE, PVC film 40um-150um, paper

Max. unwind diameter

φ800mm

Max. rewind diameter

φ500mm

Slitting width

40mm-1300mm

Rewind paper core ID

3″

Max machine speed

300m/min

Machine inner width

1540mm (depends on models)

Web guide Precision

≤0.5mm

Tension arrange

2~30kg

Unwind brake

5KG

Main motor

5 kW(1300model)

Whole machine power

8 kW

Machine size

2400mm(L) × 3600mm(W) × 1700mm(H)

Machine weight

2600kg

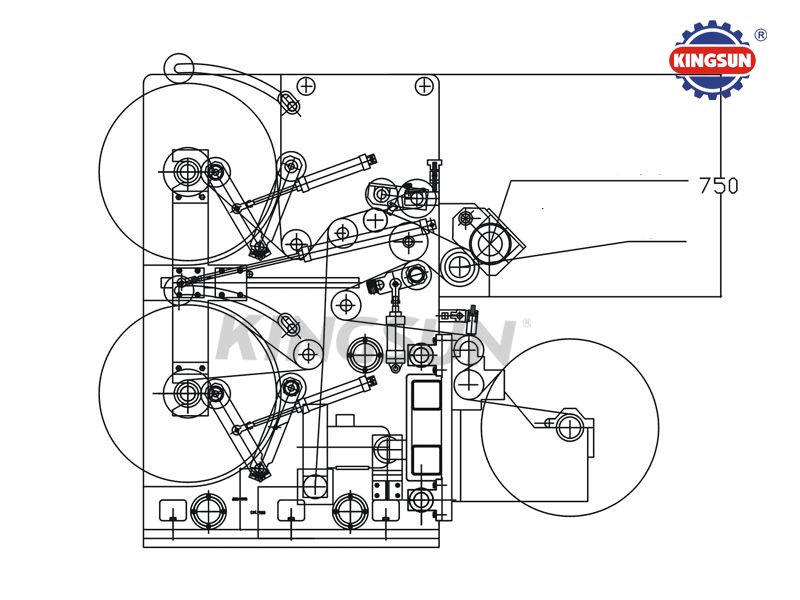

KHQR-A Series Slitting Rewinding Machines Diagrammatic Sketch:
