KFHJ-1050/1200 High Speed Dry Laminating Machine

1.Machine control system with programmable control, man-machine interface operation.
2.PLC is responsible for the whole tension, speed and other data input and pre-processing, and is responsible for the control and the output of the machine control logic.

KFHJ-1050/1200  High Speed Dry Laminating Machine

Laminator Features:

1.Machine control system with programmable control, man-machine interface operation.

2.PLC is responsible for the whole tension, speed and other data input and pre-processing, and is responsible for the control and the output of the machine control logic.

3.First unwinding , second unwinding, coating, rewind, these five part  speed synchronization and tension configure all-digital AC frequency vector control system (inverter motor + Yaskawa inverter), closed-loop tension control, roller stable system to achieve international advanced level.

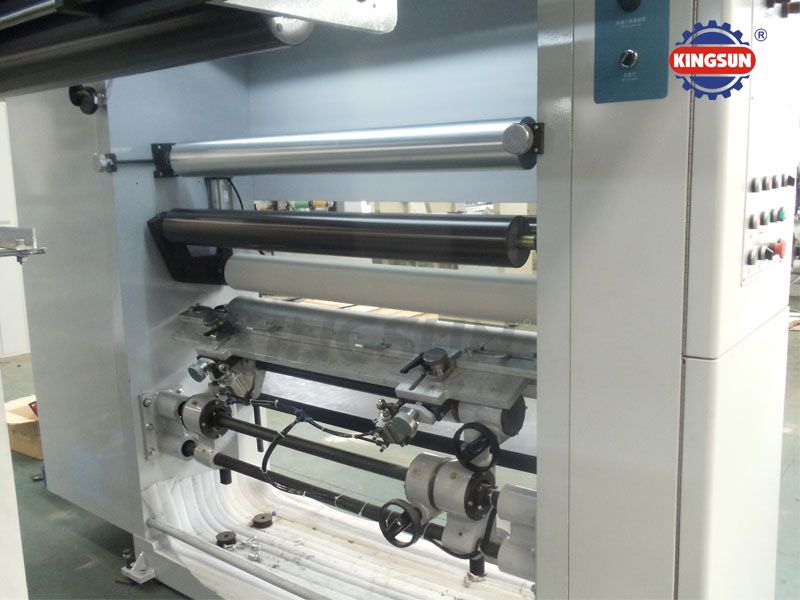

4.Coating device by the anilox roller coating, press, horizontal scraping ink,glue circulation device and spin coating roller components.

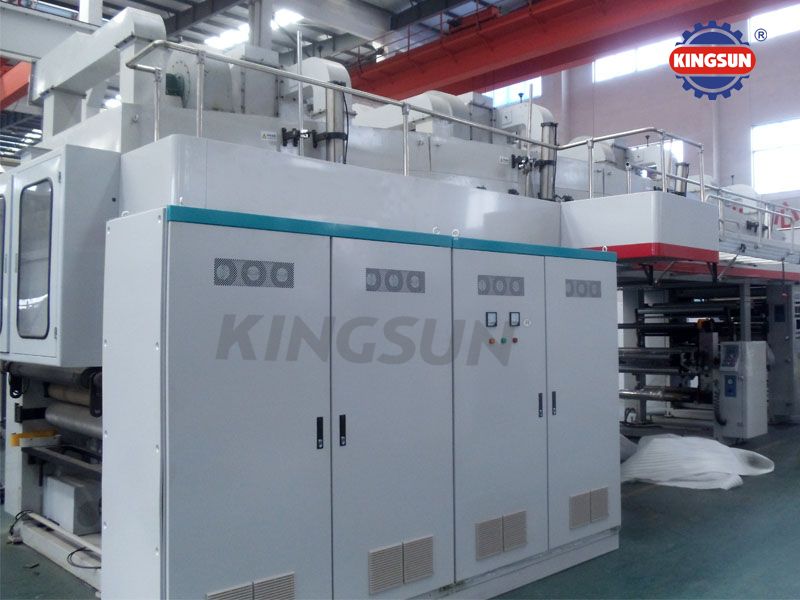

5.The drying oven segmented heating, automatic temperature control, in and out exhaust volume of air can be adjusted according to the process.

7.Guide roller in oven active synchronous operation, and equipped with penumatic lifting and film platform.

8.Lamination device heated by the bilayer thread typr lamination roll group, the supporting preheat roll, cooling roller and the main transmission system.

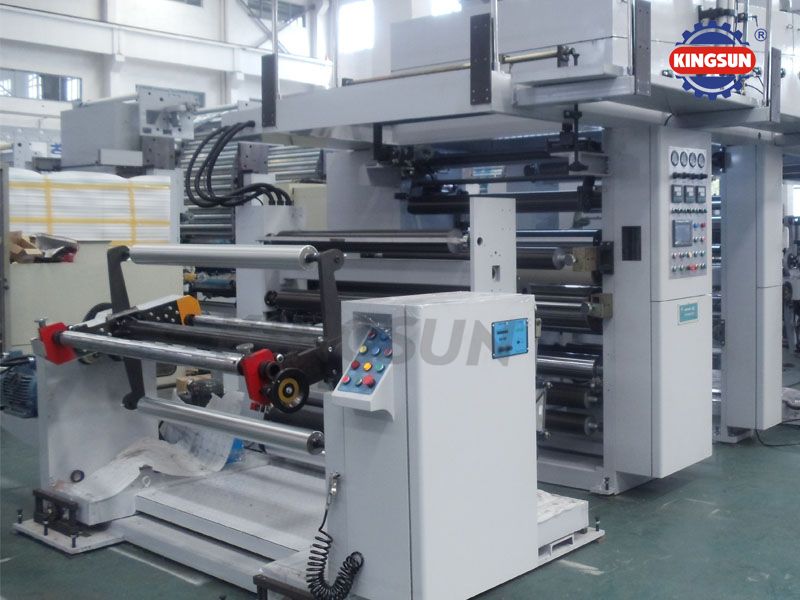

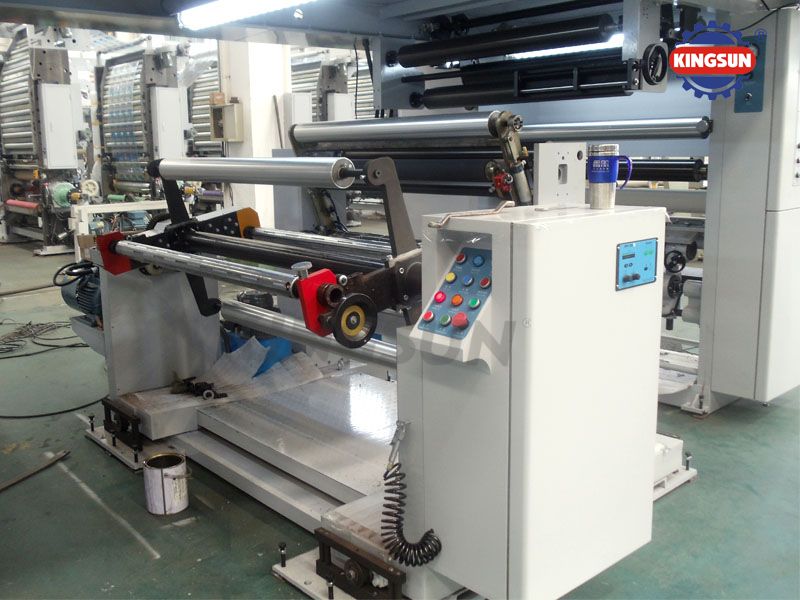

9.Two unwinding and rewinding device structure turret duplex, inflatable shaft clamping materials.

Technical specifications:

1.Coating form: direct anilox coating

2.Lamination type: Dry laminate

3.Lamination Material:  Plastic film, BOPP, PETNylon, PE: 25 ~ 150 u Aluminum foil 7-30um (bottom feed) Paper 30-150g / m²

4.Maximum laminating speed: 160m/min

5.Maximum mechanical speed: 180m/min

6.Max.feeding width :600-1050mm

7.Double shaft synchronous constant tension (Siemens inverter motor + Japan Yaskawa Inverter)

8.Maximum diameter of unwinding: 600mm

9.Maximum rewind diameter: ø800mm

10.Automatic tension control range :3-20kg

11.Coating roller diameter: ø176mm

12.Laminating steel roller diameter: ø260mm

13.Material core diameter: ø76mm

14.Total power: 165KW when electric heating

15.Machine weight: about 23000kg

16.Dimensions: 14500 (L) * 3600 (W) * 3200 (H) mm (drying tunnel length 10 meters)
