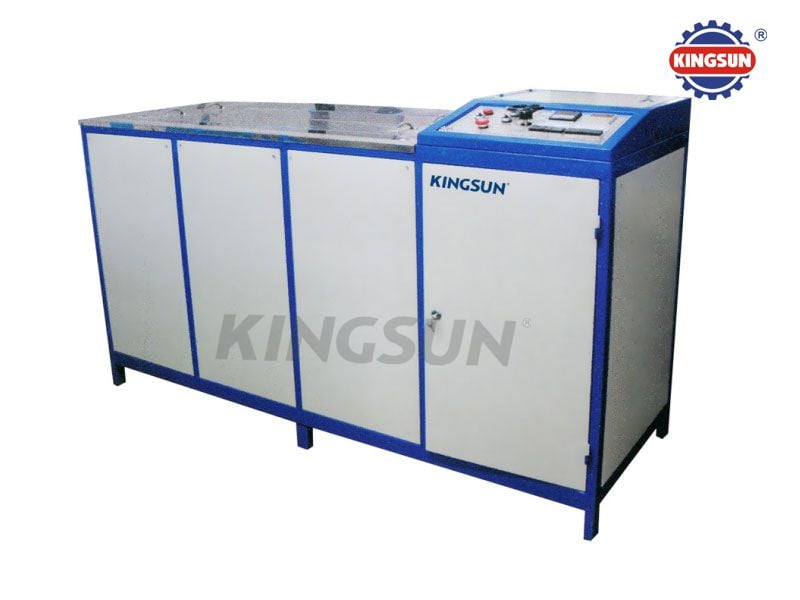

KDZ-1200 Holographic Nickel-plate Electroforming Machine

KDZ-1200 Holographic Nickel-plate Electroforming Machine

This electroforming machine is applied to duplicate the working master plate of holographic nickel plate. Mounting the original master onto the plate rack, to be replicated in the electrolytic solution, time setting and current increase & decrease according to the size of master plate.

KDZ-1200 Holographic Nickel-plate Electroforming Machine

Features:

This electroforming machine is applied to duplicate the working master plate of holographic nickel plate. Mounting the original master onto the plate rack, to be replicated in the electrolytic solution, time setting and current increase & decrease according to the size of master plate.This machine consists of hard PVC made tank, high-frequency impulse, centrifugal filter, heater, positive pole, Ti-alloy positive pole, relay and digital display, which result in a quick and high fidelity of master duplicate.

Main specifications:

Model

800

1200

Negative pole area

800-330mm

1200-800mm

Size of electric controller

45 x 45 x 90cm

45 x 45 x 90cm

Tank temperature

38-43℃

38-43℃

Max. current

150A

200A

Max. voltage

15V

15V

Power supply

380V, 220V

380V, 220V

Rated power

3kw

4kw

Machine dimension

1.3 x 0.7 x 0.5M

1.7 x 0.8 x 1.2M

Machine weight

500kg

800kg
