KCP-A4 Series A4 Paper Sheeting and Packing Machine

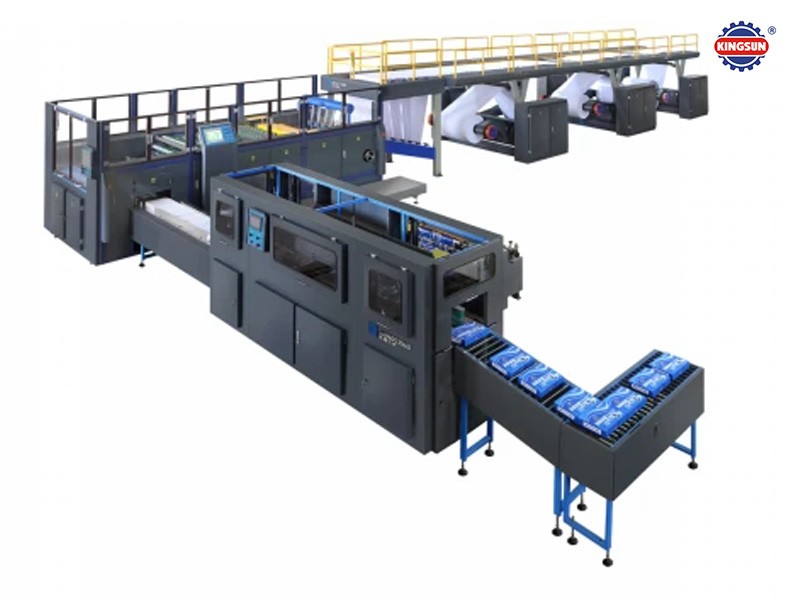

This is fully automatic A4 paper sheeting and packing machine, or automatic A4 paper cutting & packing line, our machine is one of most advanced type of A4 paper production line in the world, it adopts the latest technologies in the similar paper converting equipment in Europe

This is fully automatic A4 paper sheeting and packing machine, or automatic A4 paper cutting & packing line, our machine is one of most advanced type of A4 paper production line in the world, it adopts the latest technologies in the similar paper converting equipment in Europe, uses world famous brand electric components, it is excellent for paper mill or paper converting company to make A4 copy paper or A3 paper ream.

KCP-A4 Paper Ream Making Line Technical Parameter:

Gross width

846mm

Net width

840mm

Number  of cutting

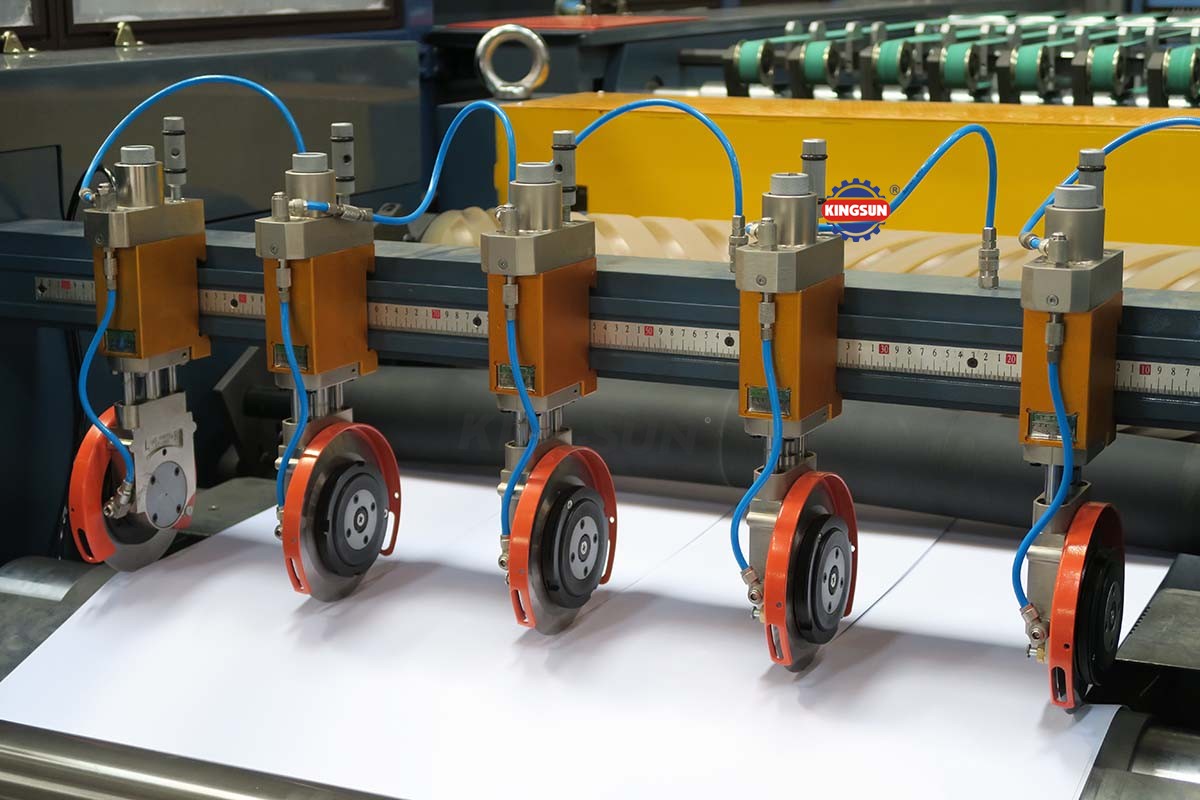

4 slittings-A4 210mm(width)

Diameter of paper roll

400-1200mm

Diameter of paper roll's core

3”(76.2mm)-6”(152.4mm)

Paper grade

High grade copy paper, writing paper, two-side offset paper etc.

Weight of paper sheet

60-100g/㎡

Length of paper cutting

A4(297mm)

Paper quantity

0-500 pages

Ream height

65mm (Max)

Designing speed of paper cutting

250m/min

Times of cutting

538/min

Cycle time of ream output

4.3/min

Production speed of paper cutting

180-220m/min

Times of cutting

437 cuts /min

Cycle time of ream exhausted

4 Cycles/min(16 reams/min), depends on specifications

Load of paper cutting

(max)400g/㎡(4×100g/㎡)

Paper cutting accuracy

±0.2mm(Compromise error)

Paper cutting condition

1. Speed not change 2.Paper roll with no breakage 3. Qualified paper rolls.

Transmission

AC Frequency conversion, stepless speed regulating

Main power source

3phase/4line/380v/50Hz

Adjustable voltage

220V AC/22V DC

Installed capacity

24KW

Air consumption

300NL/min

Pneumatic pressure

(Min)7bar---(Max)8.5bar

Overall dimension(cutting machine)

16500×2750×2100mm

Overall Weight

15T

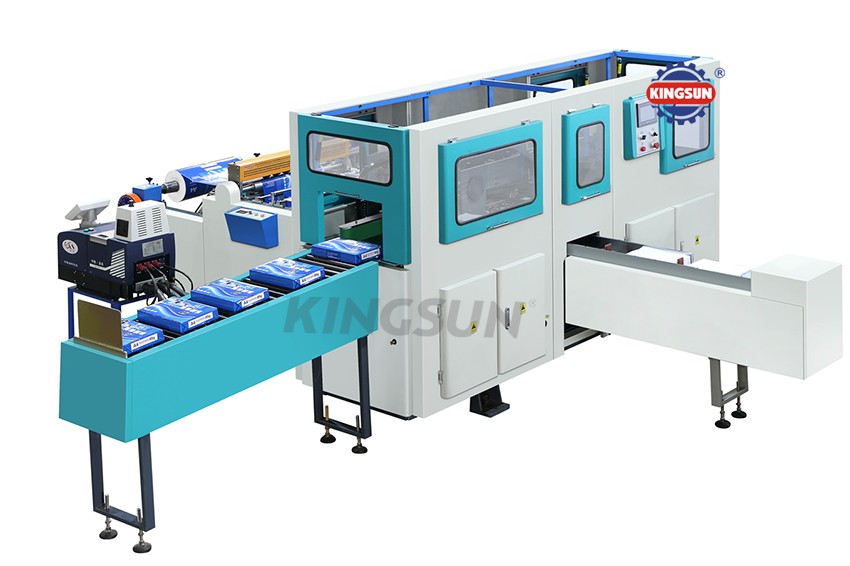

KCP-A4 Paper Packing Machine Main technical data:

Productive capacity

12-16 reams/min

Function of roll overwrapping paper

can be automatically cross cut and feed

12-16 sheets/min

Specification of packed object

210×297×50mm (Based on the height 500 pieces of copying paper.)

Wrapping Material

Roll laminated paper

Sealing Method

Hot melt glue

Power supply

380V/3Phase/4Wire

Motor power

5.1kw

Rubber roller power

2.25 kw

Compressed air

0.6-0.8 mpa

Paper size(Length × Width)

550-560mm×386mm

Overall dimension

3400×3300×1600mm

Weight

1.5T

Note: This A4 paper ream production line with various options for different capacity. All the specification depends on customer request of speed and models. For more details please contact us now.
