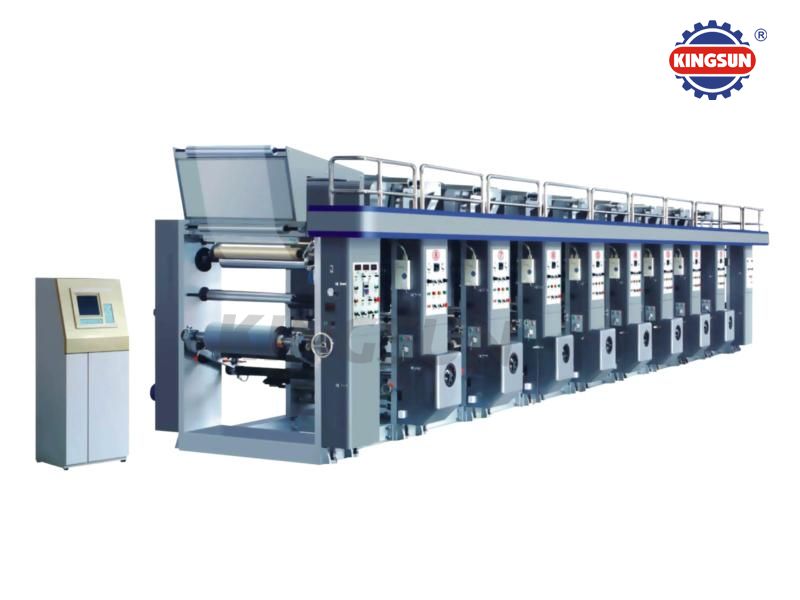

KASY-E series Computer Control Rotogravure Printing Presses

KASY-E Series computer control rotogravure printing presses are applied for continuous multi-color printing on rolling materials such as BOPP, PET, PVC, PE film, aluminum foil, cellophance and paper.

KASY-E series Computer Control Rotogravure Printing Presses

Introduction:

KASY-E Series computer control rotogravure printing presses are applied for continuous multi-color printing on rolling materials such as BOPP, PET, PVC, PE film, aluminum foil, cellophance and paper.

Features:

1.This series is combination type, the printing unit can be increased or decreased, the reverse printing mechanism can be installed upon required by customers.

2.Shaftless pneumatic printing cylinder loading, prompt and convenient for printing cylinder change.

3.Alloy guide roller with static balance, sealed type oven, fast drying with less energy consuming, and automatic constant temperature control system.

4.Auto constant tension controller and magnetic powder brake for control of unwinding and feed drawing.

5.Frequency converter control for rewinding and output drawing, realizing more stable operation results.

6.Pneumatic back pressure moving doctor blade structure.

7.Printing ink circulating system.

8.High-accuracy gear transmission box, adopting patent technology.

9.Unwinding and rewinding roll materials by double-station turret mechanism, realizing auto material change without machine stop.

10.Full automatic computer color register device.

11.Video camera system and ink viscosity controller is optional for this model.

Technical specifications:

Printing length

240-1100mm

Printing width

600/800/1000/1200mm

Printing speed

10-90m/min

Overprint accuracy

±0.12mm

Power

46/58/72/88KW

Dimensions

10800X2250X2720MM(LXWXH)

Weight

About 12000kg(800mm 6color)
