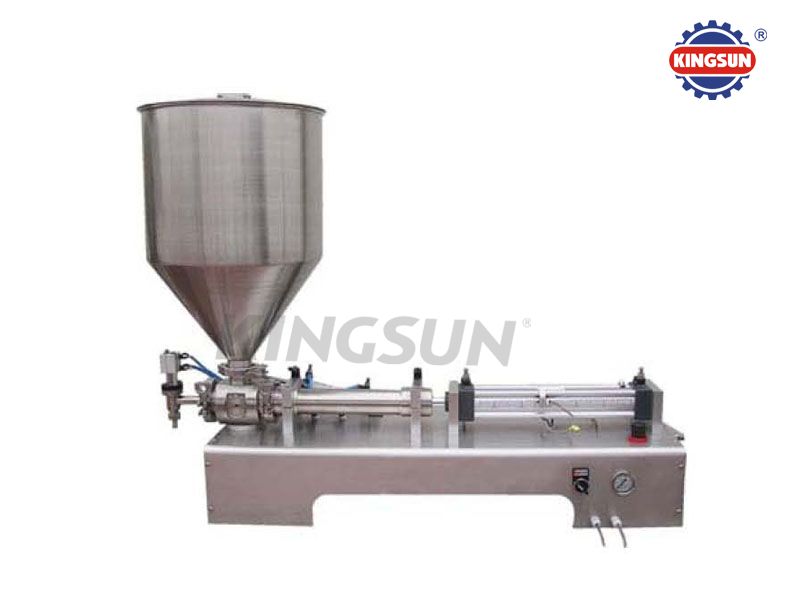

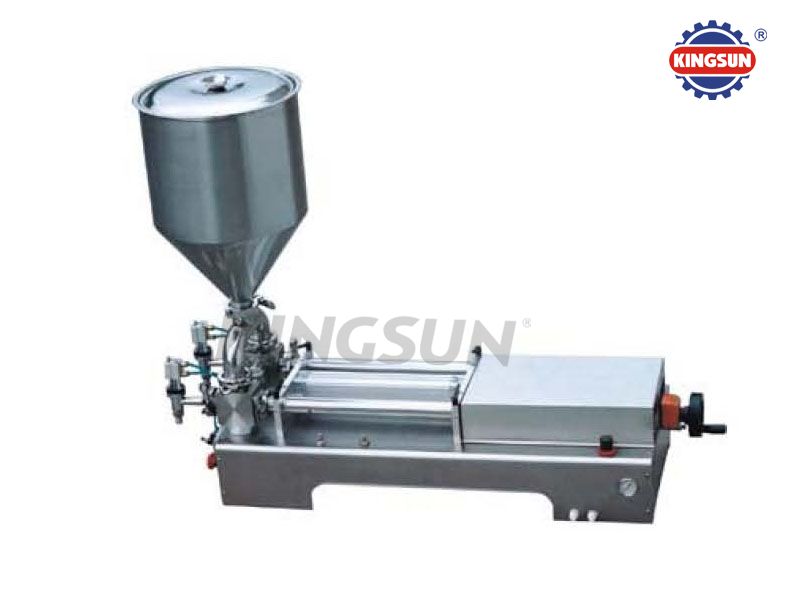

GWGD Series Semi-Automatic Paste Filling Machine

This series product is suitable for filling high-viscous liquid and paste products in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades.

GWGD Series Semi-Automatic Paste Filling Machine

Product Feature:

This series product is suitable for filling high-viscous liquid and paste products in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises requirements. This machine is the semi-automatic double piston liquid filling machine, improving the work efficiency. This machine reasonable in design, smart in model, easy to operate, the materials contacting part is made of 304 stainless steel material. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.

Technical Specification:

Model

G1WGD (single head)

G2WGD (2 heads)

Voltage

200/110V50/60HZ

Air pressure

0.4-0.6mpa

Filling speed

5-20 bottle/min.

10-40 bottle/min.

Filling accuracy

≤±1%

Filing volumes range

5-100ml 10-280ml 20-500ml 100-1000ml  500-2800ml  1000-5000ml

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
