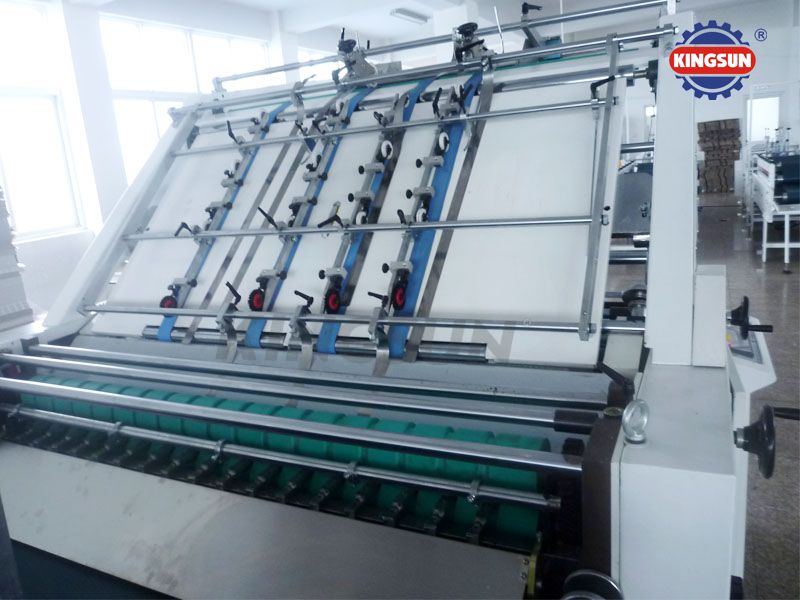

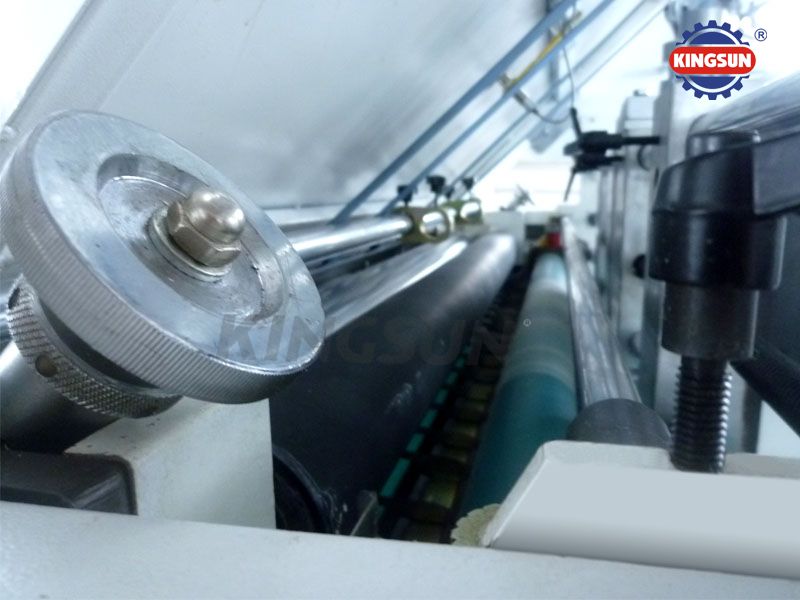

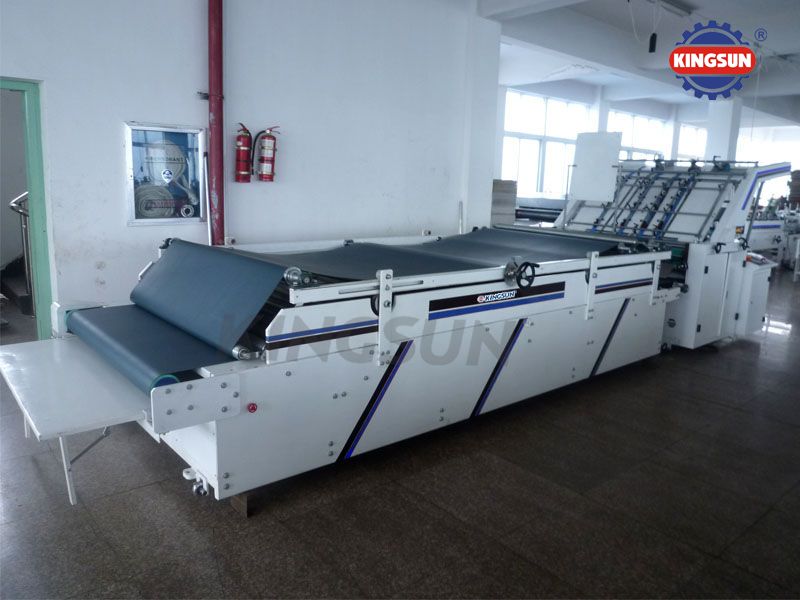

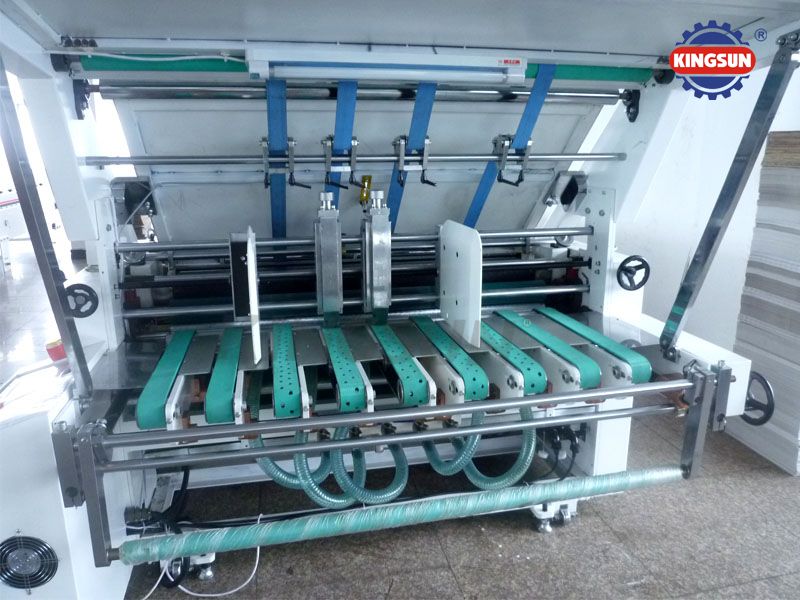

FM Series Semi-automatic Flute Laminating Machine

  • FM Series Semi-automatic Flute Laminating Machine
  • FM Series Semi-automatic Flute Laminating Machine
  • FM Series Semi-automatic Flute Laminating Machine
  • FM Series Semi-automatic Flute Laminating Machine
  • FM Series Semi-automatic Flute Laminating Machine
FM Series Semi-automatic Flute Laminating Machine

This machine is with humanity design of automatic feeding for bottom sheet that makes feeding easier. Several feeding positions are available; feeding can be either from the top or from the side .
This machine has features as easy for operation, convenient for maintenance, low noise, high speed and high precision , etc .

FM Series Semi-automatic Flute Laminating Machines, Litho Laminators.

This FM series flute laminating machines are with humanity design of automatic feeding for bottom sheet, so that makes feeding easier. Several feeding positions are available; feeding can be either from the top or from the side . This laminator machine has features as easy for operation, convenient for maintenance, low noise, high speed and high precision for carton production, etc . Suitable for flute lamination of corrugated paper to cardboard, and cardboard to cardboard, adopting automatic feeder for the feeding of bottom sheet, the right side for feeding of face sheet, front positioning gauge for lamination precision, stepless speed control, with attractive and nice appearance, easy for cleaning and with high lamination precision,it is the new equipment for producing of high quality laminated cardboard , the laminated cardboard is much more striking, attractive and with a high strength, widely for the packaging of food, wine products, household appliances and light industrial products.

Main Specifications:

Model

FM1300

FM1450

FM1600

Max sheet size(mm)

1300*1200

1450*1200

1600*1200

Min sheet size(mm)

350*350

350*350

350*350

Speed(m/min)

0~90

0~90

0~90

Total power(kw)

7

7.8

7.8

Measurement(mm)

7100*1850*1250

7100*2000*1250

7100*2100*1250

Kingsun machinery offers manual, semi and fully automatic flute laminating for micro-corrugated carton making, please feel free to tell us the max and min size of paper, we suggest best model for your packaging making.

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
