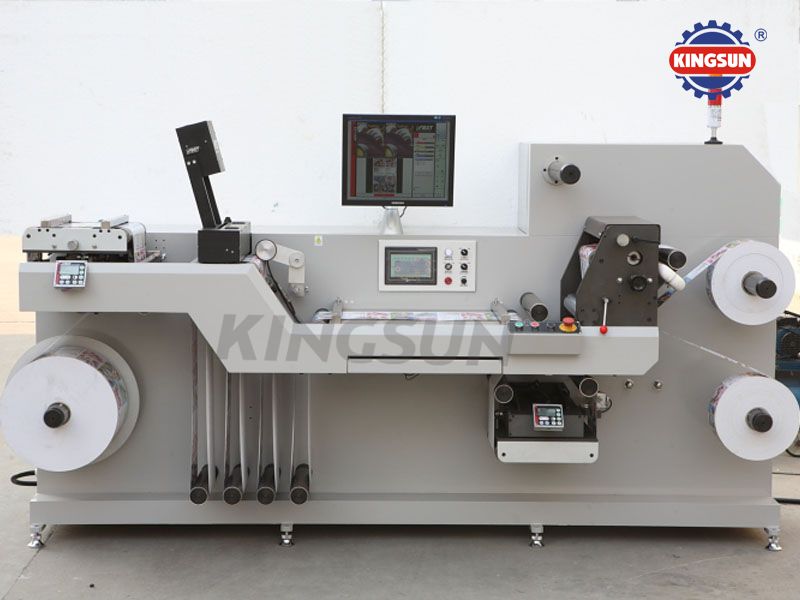

FB-320 Automatic Label Inspecting Machine

This machine adopts latest BST (Germany) inspecting system. It can detect defective labels such as missing label,color differnces, bad registration and scratched labels. It equips with inline slitting unit,has the characteristic of fast speed, high accurate and easy operation, highly increased the final label quality and output.

FB-320 Automatic Label Inspecting Machine

This FB-320 automatic label inspecting machine,also called as label doctoring machine, adopts latest BST (Germany) inspecting system. It can detect defective labels such as missing label, color differnces,  bad registration and scratched labels. It equips with inline slitting unit, has the characteristic of fast speed, high accurate and easy operation, highly increased the final label quality and output.

Technical specifications:

Max inspecting speed

160m/min

Max. web width

320mm

Max. unwinding diameter

650mm

Max. rewinding diameter

650mm

Slitting width

20-300mm

Total power

5kw

Voltage

380V 3P 50Hz

Overall dimensions

2850x1000x1500mm

Weight

1450kg
