DK Series Label Slitting Rewinding Machines

This label roll slitting machine suitable for narrow width paper label slitting.It has the function of automatically counting length,counting number and pre-setting stop,waste edge side paper blowing out.The whole structure is compact,high efficent,simple for operation

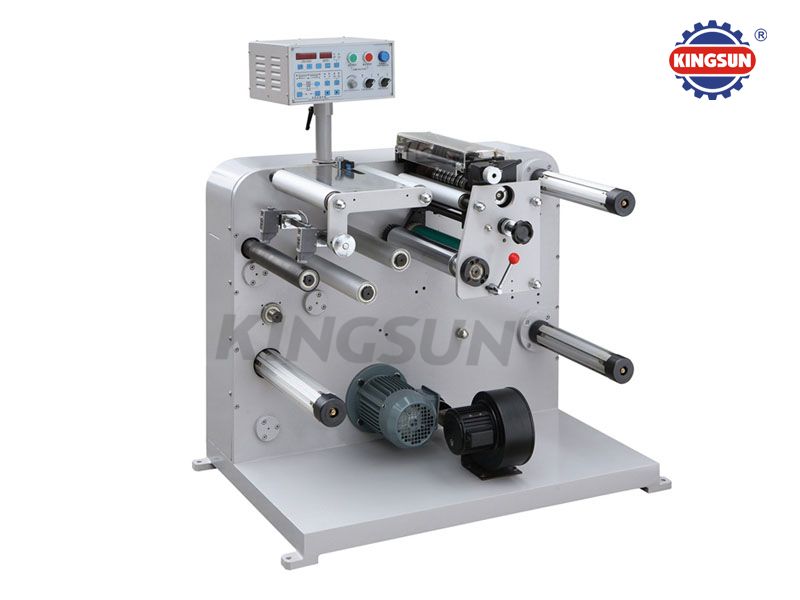

DK Series Label slitting Rewinding Machines /DK-320 Label Roll Slitting Machines

This DK-320 label slitting rewinding machine suitable for narrow width paper label slitting.It has the function of automatically counting length,counting number and pre-setting stop,waste edge side paper blowing out.The whole structure is compact,high efficent,simple for operation.( Also availabel the DK-550 model, special made are welcome!)

Main specifications:

Model

DK-320

DK-450

Slitting speed

75m/min

75m/min

Max. web width

320mm

450mm

Max. unwinding diameter

500mm

500mm

Max. rewinding diameter

480mm

480mm

Slitting precision

±0.5mm

±0.5mm

Overall dimensions

1.1X0.9X1.28M

1.1X1.0X1.28M

Weight

About400kg

About 550kg


Please write more details of your specific requirement, so our sales team can provide you right machine you need.
