BF2000A Automatic Bottle Washing, Filling and Capping Line

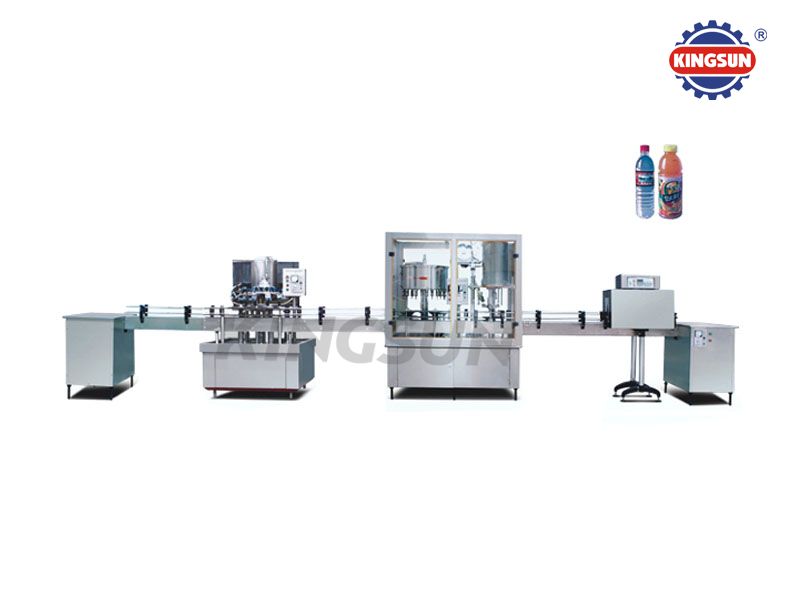

The line is composed of automatic bottle washing, filling, capping and label shrinking machine, used for PET plastic bottles, glass bottles, can fill mineral water, fruit juice, soy sauce, wine and so on.

BF2000A Automatic Bottle Washing, Filling and Capping Line

Products Feature:

The line is composed of automatic bottle washing, filling, capping and label shrinking machine, used for PET plastic bottles, glass bottles, can fill mineral water, fruit juice, soy sauce, wine and so on. Machine adopt very simple electric controller and very easy adjustment, suit for various types of bottles, It is the ideal production line for beverage makers.

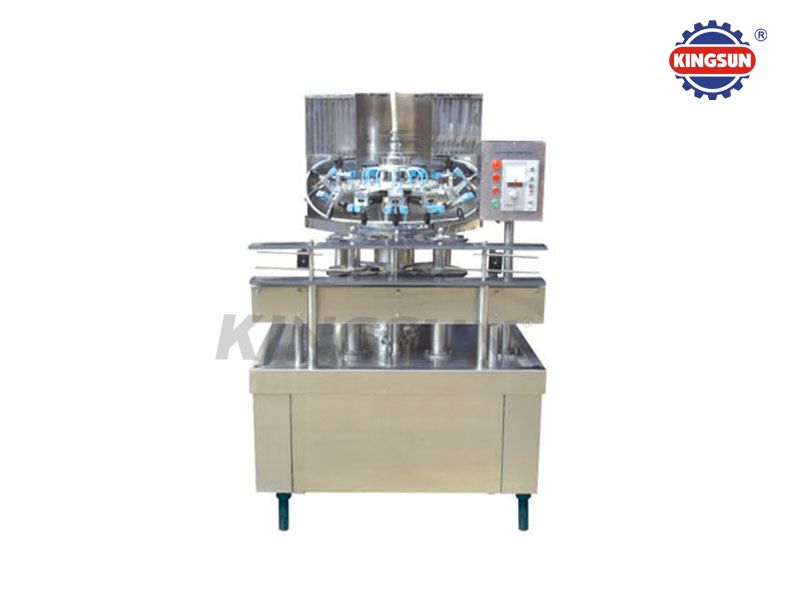

The washer can automatically finish the whole process: inside-bottle-washing and draining-out-bottle. It is the most advanced and applied machine for wash the plastic polyester bottle and glass bottle. It can make up of an automatically production line with bottle filler and sealer.

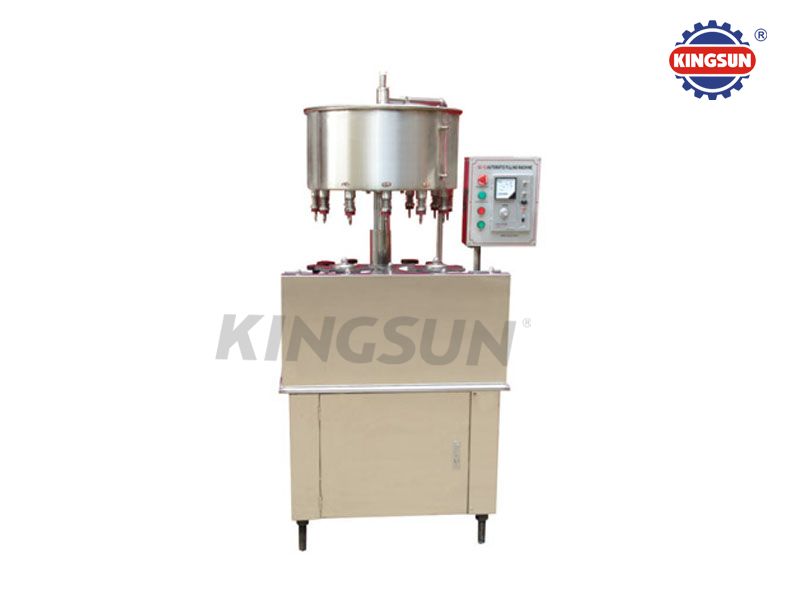

The filler can accurately fill drink without gas, such as pure water, white spirit, wine, fruit juice and fruit syrup. It also can fill other liquid, such as vinegar, milk and pesticide. The filler works in sealed condition and without pollution

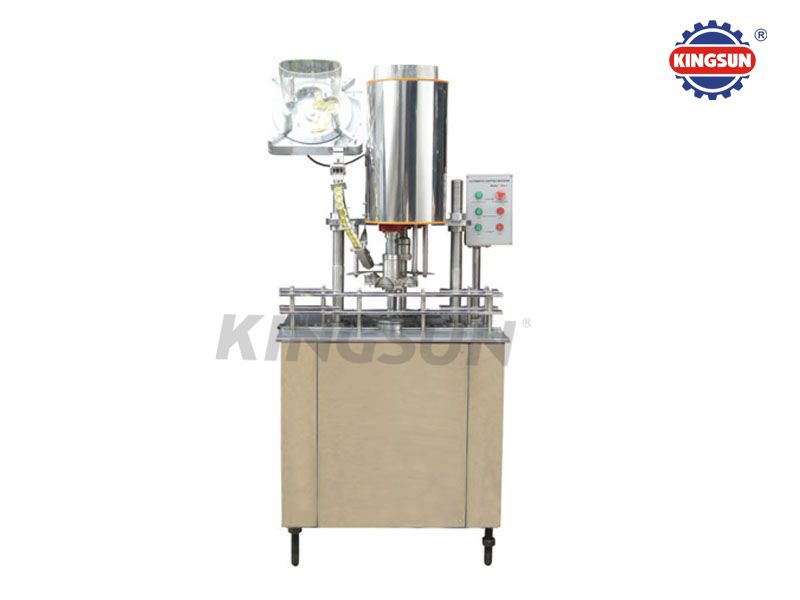

The capper can automatically seal various size of cylinder-type bottle that matches plastic theft-proof capsule. With perfect performance, reliable operation, easy maintenance, it is widely used in automatic packing lines for various kinds of wine and drink.This label shrink machine adopts infrared radiation to shrink PVC/POP film label in the middle of bottle, with Intelligent digital temperature control of shrink tunnel. Machine is able to be designed to shrink label on the top of bottle as your requirement.

Technical Specification:

Model

ZPC-12 Washer

GC-12Filler

YQX-3 Capper

Capacity

2000-2500BPH

1500-3000BPH

2000BPH

Working Position

12

12

1

Volume of bottle

200-1500ML

200-1500ML

350-1500ML

Power

0.75Kw 220/380V

0.75Kw 220/380V

0.55Kw 220V

Dimension

135x135x190CM

175x115x200CM

175x115x200CM

Weight

800Kgs

900Kgs

900Kgs


Model

BSL1535 Labeler

Conveyor

Capacity

1500-2000BPH

100-2500BPH

Volume of bottle

200-1500ML



Power

3.5KW 220/380V

0.75KW 220/380V

Dimension

105x60x80CM

100x72x220CM

Weight

80Kgs

200Kgs

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
